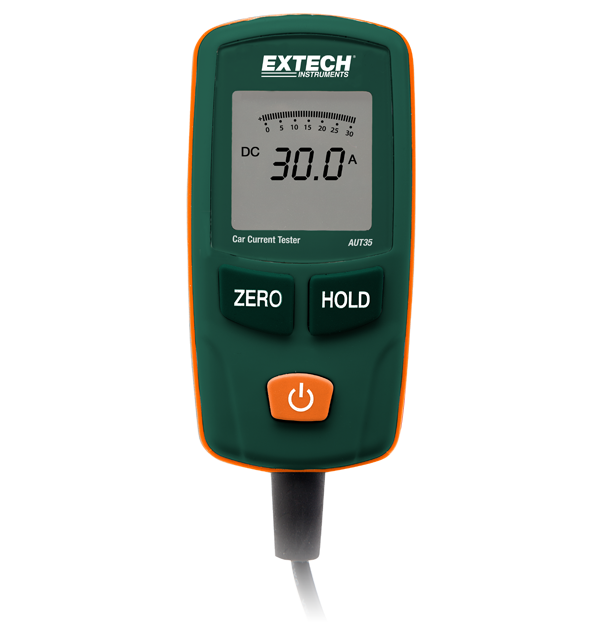

Extech AUT35
Universal 30A Current Tester
Check up to 30 Amps without breaking the circuit with the Extech AUT35 Current Tester. Mini-blade and ATC blade connectors plug into the fuse block. It has a measuring range of 30 Amps/48 VDC (10 seconds max) with 100 mA resolution and ± a (2% + 2 digits) accuracy. Results are displayed on a 3.5-digit LCD with a bargraph. Includes alligator clips.
Technische Daten
| Allgemeine technische Daten | |
|---|---|
| Erkennungsabstand | <0.2" |
| Gleichspannung | 48V DC |
| Gleichstrom Grundgenauigkeit | 100mA |
| Gleichstrom Max. Auflösung | ±(2.0% of reading + 2 digits) |
| Gleichstromstärke | 0 to 30A DC |
| Weitere Details | |
|---|---|
| Abmessungen | 86 × 37 × 28mm (3.4 × 1.5 × 1.1") |
| Garantie | 2 years |
| Gewicht | 68g (0.15 lbs.) |
| Stromversorgung | 1 × 9V battery |
| Zertifizierungen | CE |
Resources & Support
User Manual
Extech AUT35 Bedienungsanleitung
Certification
Extech AUT35 Declaration of Conformity
Datasheet
Extech AUTxx Datasheet
User Manual
Extech AUT35 User Manual GB
Export Restrictions
The information contained in this page pertains to products that may be subject to the International Traffic in Arms Regulations (ITAR) (22 C.F.R. Sections 120-130) or the Export Administration Regulations (EAR) (15 C.F.R. Sections 730-774) depending upon specifications for the final product; jurisdiction and classification will be provided upon request.
