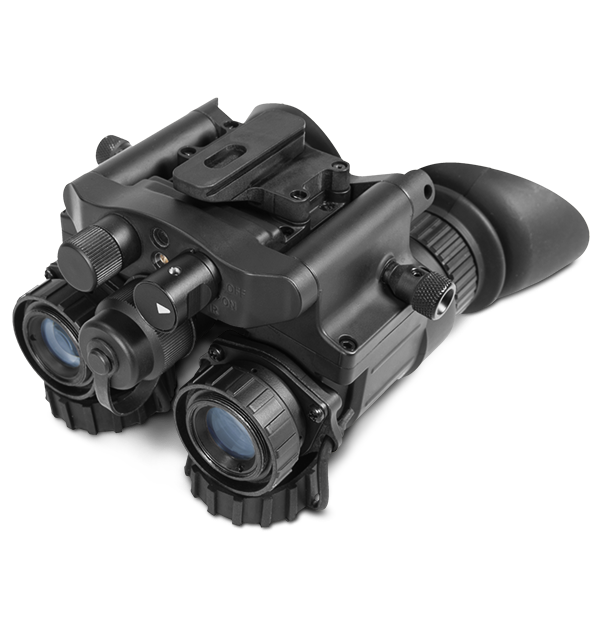

FLIR BNVD-51
51° Night Vision Goggles
The wide-angle FLIR BNVD-51 dual-channel night vision system creates an undisputed tactical advantage. Head and helmet mounting options provide hands-free full-field night vision while multi-coated lenses and composite housing stand up to wear and tear. One AA or CR123A battery can power the BNVD-40 up to 20 hours.
Wide-Angle Night Vision for Superior Awareness
51-degree lens offers a 28% field of view increase over similar 40-degree models.
Head or helmet mounting allows hands-free operation and uninhibited movement.
Simple single-knob gain corrections and flip up/power off display controls allow quick and covert viewing adjustments.
Technische Daten
| Sensor und optische Daten | |
|---|---|
| Abstand zur Augenlinse [mm] | 17 mm |
| Auflösung | - |
| Austrittspupillendurchmesser [mm] | - |
| Automatische Helligkeitsregelung | No |
| Diopter einstellen | -6 to +2 dpt |
| Fokusbereich | 0.25 m to Infinity |
| Helles Licht Cut_off | Yes |
| IIT-Generation | FLAG - Filmless Auto-Gated IIT |
| Infrarotbeleuchtung | Yes (built-in with pivotal flood lens) |
| Objektivsystem | F/1.26; 19 mm |
| Photokathodentyp | GaAs |
| Sichtfeld | 51° |
| Vergrößerung | 1x standard (3x optional) |
| Umgebungsfaktoren und Zulassungen | |
|---|---|
| Betriebstemperatur | -40°C to +50°C (-40°F to +122°F) |
| Lagertemperatur | -50°C to +50°C (-58°F to +122°F) |
| Stromversorgung | |
|---|---|
| Akkulaufzeit | Up to 20 hours (up to 80 hrs with optional Battery Pack) at 20°C |
| Automatische Abschaltung | Yes |
| Batteriewarnanzeige | Yes (In FOV) |
| Netzteil | CR123 Lithium 3V (1), or AA Alkaline 1.5V (1), or any AA or CR123 type rechargeable batteries with voltage from 1.2V to 3.7V (1) |
| Dateispeicherung und Datenübertragung | |
|---|---|
| Fernsteuerung | - |
| Benutzeroberfläche/-funktionen | |
|---|---|
| Fadenkreuzfarbe | - |
| IR-Anzeige | Yes (In FOV) |
| Manuelle Kontrastabstimmung | Yes |
| Systemübersicht | |
|---|---|
| Fadenkreuztyp | - |
| Garantie | 2 Years |
| Höhe Scope-Achse über Schiene | - |
| Windage_Elevation Anpassung | - |
| Physikalische Daten | |
|---|---|
| Abmessungen (L x B x H) | 157 × 124 × 78 mm (6.2 × 4.9 × 3.1 in) |
| Produktgewicht | 0.61 kg (1.35 lbs) |
| Stativbefestigung | - |
| Zubehör | |
|---|---|
| Mitgeliefertes Zubehör | Packing Box, Soft Carrying Case, Lens Tissue, Quick Start Guide, NVG Interface Shoe (preinstalled), Bayonet/Horn Interface Shoe, Sacrificial Window (2), Demist Shield (2). |
| Optionales Zubehör | 3x Afocal Lens Kit (includes 2 lenses) , Battery Pack #206 (Includes: Battery Pack Bracket #231, Nylon Bag), Battery Pack Kit (Includes: Battery Pack #206 w/ Battery Pack Bracket #231and Nylon Bag, NVG Interface Shoe with Connector #212, Battery Locking Plate, Battery Locking Plate Adapter #213, NVG Interface Shoe with Connector #212, Goggle Kit for BNVD (Includes: Goggle Kit #205, Adapter #224), Helmet Mount Kit for BNVD (Includes: Helmet Mount #3, Adapter #224), Tactical Goggle Kit for BNVD (Includes: Wilcox L4 G24 w/ Low Profile Breakaway mount, Wilcox 3 Hole Shroud, Wilcox Lanyard, Crye Precision Head Cap),Mil-Standard Hard Shipping/Storage Case #101. |
