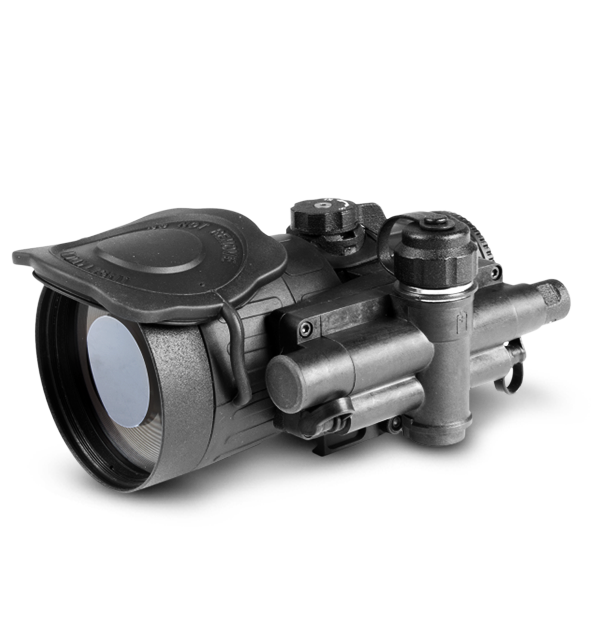

FLIR CO-X
80 mm Night Vision Clip-On System
The FLIR CO-X clip-on system introduces night vision capability to traditional daytime optics. Intended for mid-range shooting, the CO-X mounts in front of a day scope and provides reliable night vision in minimal light conditions. Using the existing daytime reticle for shot placement eliminates the need to rezero, while quick-release Picatinny mount installs in seconds.
Mid-Range Detection, High-Grade Night Vision
No rezeroing and quick transitions between day and night optics ensure 24/7 mission capability.
Included XLR IR illuminator and manual gain control enhance Gen 2+/Gen 3 high-quality night vision.
Objective lens adapter mounts to scopes and binoculars while one AA or CR123A battery provides up to 60 hours of power.
Technische Daten
| Sensor und optische Daten | |
|---|---|
| Abstand zur Augenlinse [mm] | - |
| Auflösung | 47-54 lp/mm |
| Austrittspupillendurchmesser [mm] | 21 mm |
| Automatische Helligkeitsregelung | Yes |
| Diopter einstellen | - |
| Fokusbereich | 10 m to Infinity |
| Helles Licht Cut_off | Yes |
| IIT-Generation | Gen 2+ ID (Improved Definition) MG |
| Infrarotbeleuchtung | Detachable Long Range IR |
| Objektivsystem | F/1.44; 80 mm |
| Photokathodentyp | Multi-Alkali |
| Sichtfeld | 12° |
| Vergrößerung | 1x |
| Umgebungsfaktoren und Zulassungen | |
|---|---|
| Betriebstemperatur | -40°C to +50°С (-40°F to +122°F) |
| Lagertemperatur | -50°C to +50°С (-58°F to +122°F) |
| Stromversorgung | |
|---|---|
| Akkulaufzeit | 60 hrs (3V) / 30 hrs (1.5V) |
| Automatische Abschaltung | Yes |
| Batteriewarnanzeige | Yes (LED indicator) |
| Netzteil | CR123 Lithium 3V (1), or AA Alkaline 1.5V (1), or any AA or CR123 type rechargeable batteries with voltage from 1.2V to 3.7V (1) |
| Dateispeicherung und Datenübertragung | |
|---|---|
| Fernsteuerung | Wireless |
| Benutzeroberfläche/-funktionen | |
|---|---|
| Fadenkreuzfarbe | - |
| IR-Anzeige | No |
| Manuelle Kontrastabstimmung | Yes |
| Systemübersicht | |
|---|---|
| Fadenkreuztyp | - |
| Garantie | 2 Years |
| Höhe Scope-Achse über Schiene | - |
| Windage_Elevation Anpassung | - |
| Physikalische Daten | |
|---|---|
| Abmessungen (L x B x H) | 150 × 100 × 83 mm (5.9 × 3.9 × 3.2 in) |
| Produktgewicht | 0.765 kg (1.7 lbs) |
| Stativbefestigung | - |
| Zubehör | |
|---|---|
| Mitgeliefertes Zubehör | Battery adapter CR123A 3V / AA 1.5V, XLR-IR850 Detachable X-Long Range Infrared Illuminator, Battery, Light Suppressor for Day Scope, AWReC (Advanced Wireless Remote Control) #94, Quick Release Mount, Instruction Manual with Warranty Card, Soft carrying Case, Picatinny adapter for AWReC (Advanced Wireless Remote Control, Special Wrench, Packing Box, Light-Suppressor 3, Light-Suppressor 2, Light-Suppressor 1, Lens Tissue |
| Optionales Zubehör | Scope Mounting System 1 #40, Scope Mounting System 2 #41, Scope Mounting System 3 #42, Scope Mounting System 4 #43, Scope Mounting System 6 #44, Extended Rail Adapter #85, XLR-IR Afocal Doubler - Doubles the distance of XLR-IR850 IR beam, Mount for IR illuminator #60, Mil-Standard Hard Shipping/Storage Case #102 |
