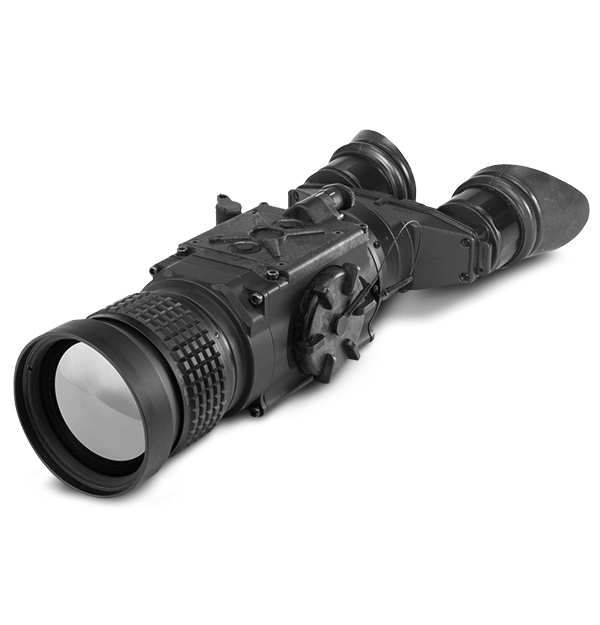

FLIR Command
Long-Range Thermal Imaging Bi-Ocular
Built for long-range surveillance in complete darkness, the FLIR Command packs high-performance thermal imaging into a 50mm, 75mm, or 100mm lens bi-ocular. Command’s ergonomic design offers comfort during sustained viewing periods while a rugged housing and FLIR Tau 2 thermal core generate dependable imagery in snow, dust, smoke, fog, and haze.
Sharp Long-Range Surveillance
Crisp thermal imaging operates in complete darkness and cuts through atmospheric obscurants.
50mm, 75mm, and 100mm optical lens options and onboard digital zoom allow reliable surveillance from distance.
Ergonomic design, swappable CR123 batteries, and a high definition OLED display make sustained viewing more comfortable.
Technische Daten
| Markierter | |
|---|---|
| Videoaufzeichnung | Optional Digital Video Recorder with SD card slot |
| Sensor und optische Daten | |
|---|---|
| Abstand zur Augenlinse [mm] | 16 |
| Aktive Kontrastverbesserung (ACE) | Yes |
| Aktualisierungsfrequenz | 30 Hz |
| Art des Focal Plane Array | FLIR Tau 2 |
| Austrittspupillendurchmesser [mm] | 14 |
| Automatische Kontrastabstimmung [AGC] | Yes |
| Brennweite Objektiv | 100 mm |
| Brennzahl Objektiv | 1:1 |
| Digitale Detailverbesserung der zweiten Generation [DDE] _ Schärfe | Yes |
| Diopter einstellen | Manual |
| Diopter-Einstellbereich | ±5 diopter |
| Display-Typ | AMOLED SVGA 060 |
| Displayhelligkeit | Discretely Adjustable to 8 Levels |
| Fokusbereich | 10m to inf. |
| Objektivtyp | Germanium |
| Pixel-Array-Format | 640×512 |
| Pixelanzeigeformat | 800×600 |
| Pixelgröße | 17µm |
| Shutterless NUC ohne Auslöser [SSN] | Yes |
| Sichtfeld [Winkel] | 6.2°×5.0° |
| Vergrößerung | 3.7x / 4.4x |
| Umgebungsfaktoren und Zulassungen | |
|---|---|
| Betriebstemperatur | –40°C to +50°C (–40°F to +122°F) |
| Lagertemperatur | –50°C to +70°C (–58°F to +158°F) |
| Stromversorgung | |
|---|---|
| Akku | Two CR123A 3V Lithium batteries or CR123 type rechargeable batteries with voltage from 3.0V to 3.7V (2) |
| Akkulaufzeit | Up to 4 hr (optional up to 12 hrs) |
| Externe Stromversorgung | 6 VDC/ 600mA |
| Ladezustandsanzeige | Yes |
| Dateispeicherung und Datenübertragung | |
|---|---|
| Analoges Ein- und Ausgangsformat [Auflösung] | PAL (768×574 pixels)/ NTSC (640×480 pixels) |
| Fernsteuerung | Wireless |
| Videoaufzeichnung | Optional Digital Video Recorder with SD card slot |
| Benutzeroberfläche/-funktionen | |
|---|---|
| Benutzergesteuerte manuelle Ungleichförmigkeitskorrektur_ Flachfeldkorrektur [UCMNUC_ FFC] | Yes |
| Fokusmethode | Manual |
| Intelligente Zielbereichsoptimierung (Smart Scene Optimization) | Yes |
| Systemübersicht | |
|---|---|
| Digitalzoom | 1x, 2x 4x and 8x |
| Garantie | 2 years standard, 3 years with product registration |
| Garantie auf den Detektor | 10 Years |
| Physikalische Daten | |
|---|---|
| Abmessungen (L x B x H) | 270×122×65 mm (10.6×4.8×2.5 in) |
| Gewicht [ohne Akkus] | 1.3 kg (2.9 lbs) |
| Zubehör | |
|---|---|
| Mitgeliefertes Zubehör | Soft carrying Case Battery Cassette Packing Box Instruction Manual with Warranty Card Two Lithium Battery CR123A AWReC (Advanced Wireless Remote Control) #94 Picatinny adapter for AWReC (Advanced Wireless Remote Control) Video Cable Lens Tissue |
| Optionales Zubehör | ARMASIGHT by FLIR Mil-Standard Hard Shipping/Storage Case #101 ARMASIGHT by FLIR Tripod with a Grip ARMASIGHT by FLIR AMRF2200 - Advanced Modular Range Finder ARMASIGHT by FLIR HD DVR Digital Video Recorder ARMASIGHT by FLIR Extended Battery Pack |
