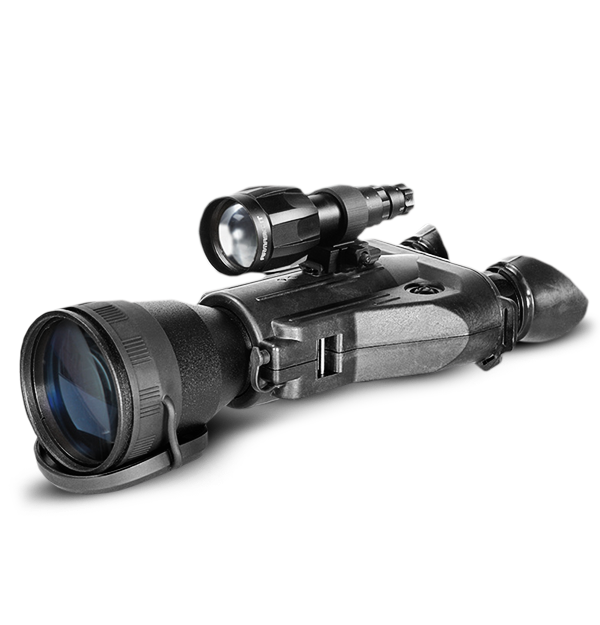

FLIR Discovery 5x
Long-Range Night Vision Bi-Ocular
A highly ergonomic body and 5x magnifying lens make the FLIR Discovery 5x night vision bi-ocular ideal for long-term, long-range surveillance. Detachable extra long-range IR illuminator and automatic brightness control capture sharp night vision in minimal light conditions. Multigenerational intensifier tube options and available “Quick Silver” black and white night vision displays off specialization for specific applications—from perimeter security to wildlife observation.
Technische Daten
| Markierter | |
|---|---|
| Betriebstemperatur | -51°C to +49°C (-59°F to +120°F) |
| Sensor und optische Daten | |
|---|---|
| Abstand zur Augenlinse [mm] | 17 mm |
| Auflösung | 45-51 lp/mm |
| Austrittspupillendurchmesser [mm] | 14 mm |
| Automatische Helligkeitsregelung | Yes |
| Diopter einstellen | ±5 diopter |
| Fokusbereich | 10 m to Infinity |
| Helles Licht Cut_off | Yes |
| IIT-Generation | Gen 2+ SD (Standard Definition) |
| Infrarotbeleuchtung | Detachable Long Range IR |
| Objektivsystem | F/1.5; 108 mm |
| Photokathodentyp | Multi-Alkali |
| Sichtfeld | 9.5° |
| Vergrößerung | 5× |
| Umgebungsfaktoren und Zulassungen | |
|---|---|
| Betriebstemperatur | -51°C to +49°C (-59°F to +120°F) |
| Lagertemperatur | -50°C to +70°C (-58°F to +158°F) |
| Stromversorgung | |
|---|---|
| Akkulaufzeit | Up to 50 hours |
| Automatische Abschaltung | Yes |
| Batteriewarnanzeige | Yes (In FOV) |
| Netzteil | CR123 Lithium 3V (1) or CR123 type rechargeable batteries with voltage 3.2V (1 |
| Dateispeicherung und Datenübertragung | |
|---|---|
| Fernsteuerung | - |
| Benutzeroberfläche/-funktionen | |
|---|---|
| Fadenkreuzfarbe | - |
| IR-Anzeige | No |
| Manuelle Kontrastabstimmung | No |
| Systemübersicht | |
|---|---|
| Fadenkreuztyp | - |
| Garantie | 2 Years |
| Höhe Scope-Achse über Schiene | - |
| Windage_Elevation Anpassung | - |
| Physikalische Daten | |
|---|---|
| Abmessungen (L x B x H) | 294 x 138 x 86 mm (11.6 x 5.4 x 3.4 in) |
| Produktgewicht | 1.3 kg (2.8 lbs) |
| Stativbefestigung | Yes |
| Zubehör | |
|---|---|
| Mitgeliefertes Zubehör | XLR-IR850 Detachable X-Long Range Infrared, Illuminator, Packing Box, Neck Lenyard, Soft carrying Case, One Lithium Battery CR123A, Instruction Manual with Warranty Card, Lens Tissue |
| Optionales Zubehör | Mil-Standard Hard Shipping/Storage Case #101, XLR-IR Afocal Doubler - Doubles the distance of XLR-IR850 IR beam, Tripod with a Grip |
