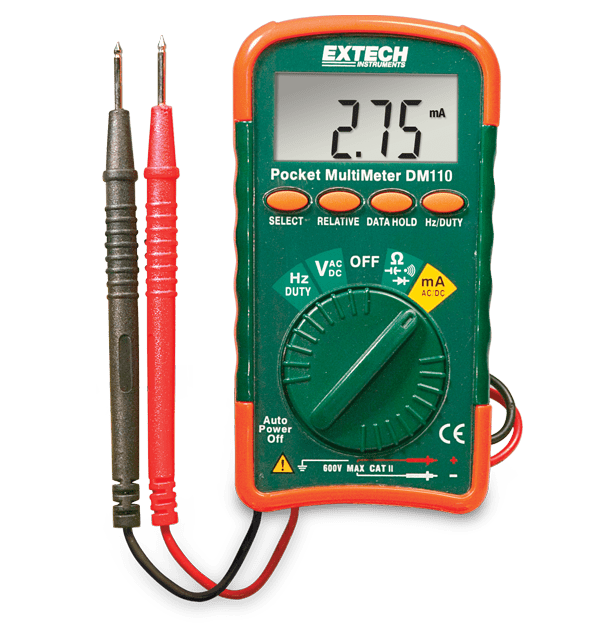

Extech DM110
Mini Pocket MultiMeter
Extech's DM110 offers full function versatility and the most pocket-friendly multimeter size available. The compact, autoranging DM110 digital Mini Multimeter is equipped with capabilities that are perfect for a electrical hobbyist, electronics tinkerer, or DIYer. Use this meter to perform more in depth testing to troubleshoot anything connected to an outlet, such as any electronic devices found around the home and garage. The DM110 is great for automotive and marine electrical applications, A/V projects, Arduino projects, and secondary home wiring systems like security alarms and thermostat circuits. It includes a protective rubber holster with storage clips to retain the integrated test leads, soft carrying case, CR2032 button battery, user manual, and one year limited warranty.
Technische Daten
| Allgemeine technische Daten | |
|---|---|
| Diodentest | Yes |
| Durchgang | Yes |
| Frequenz | 5Hz to 10MHz |
| Frequenz Grundgenauigkeit | ±2% |
| Frequenz Max. Auflösung | 0.001Hz |
| Gleichspannung | 500V |
| Gleichspannung Grundgenauigkeit | ±1.3% |
| Gleichspannung Max. Auflösung | 1mV |
| Gleichstrom Grundgenauigkeit | ±2.0% |
| Gleichstrom Max. Auflösung | 0.01mA |
| Gleichstromstärke | 400mA |
| Kapazität | 100µF |
| Kapazität Max. Auflösung | 0.001nF |
| Tastgrad | 0.1% to 99.9% |
| Tastgrad Grundgenauigkeit | ±1.2% |
| Tastgrad Max. Auflösung | 0.10% |
| Wechselspannung | 500V |
| Wechselspannung Grundgenauigkeit | ±2.3% |
| Wechselspannung Max. Auflösung | 1mV |
| Wechselstrom | 400mA |
| Wechselstrom Grundgenauigkeit | ±2.5% |
| Wechselstrom Max. Auflösung | 0.01mA |
| Widerstand | 400 to 40MΩ |
| Widerstand Max. Auflösung | 0.1Ω |
| Weitere Details | |
|---|---|
| Abmessungen | 4.25 × 2.2 × 0.5”(108 × 56 × 11.5mm) |
| Garantie | 2 years |
| Gewicht | 1.7oz (50g) |
| Sicherheitskategorie | CATII - 600V |
| Stromversorgung | 1 × CR2032 (3V) battery |
| Zertifizierungen | CE, UL |
