Flir EV45-NACS

EV Charger Test Adapter with NACS Plug and Type 1 Converter

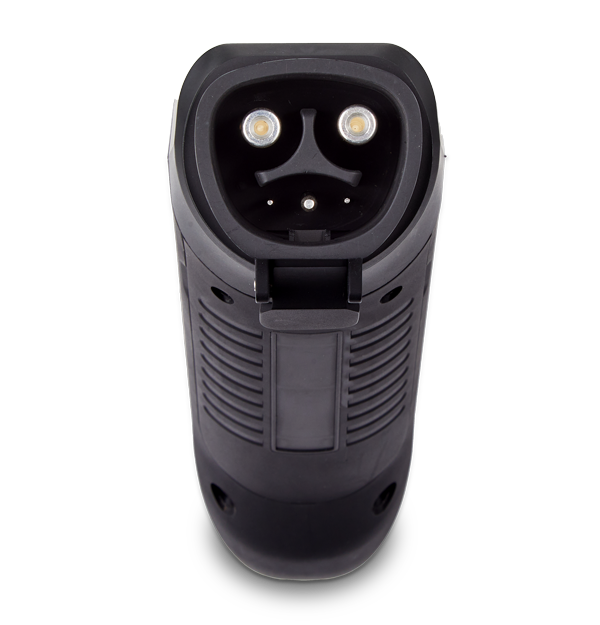

The FLIR EV45-NACS is equipped with a built-in NACS plug for NACS charging stations or AC wall connectors and is compatible with SAE J1772 Type 1 stations, with a compact adapter included. It is designed for level 1 or level 2 electric vehicle AC charging stations (EVSEs) at both residential and commercial destinations. Maintain EV charging station safety by checking Protective Earth (PE) and electrical wiring, Test charge current interrupt device (CCID) to ensure electrical safety, Verify EV Charger maximum current output, Output charging voltages and frequency for further performance and safety checks, with the option to use the FLIR DM286 IGM multimeter for a comprehensive kit solution. The Bluetooth® FLIR METERLiNK® technology in the DM286 allows you to connect wirelessly to the METERLiNK® app on mobile devices, enabling instantaneous documentation, reporting, and sharing of results.

Test Protective Earth (PE), electrical wiring,
Test Charge Current Interrupt Device (CCID)
Verify EV charger maximum current output

Designed for NACS and compatible with Type 1 — includes a compact Type 1 to NACS converter

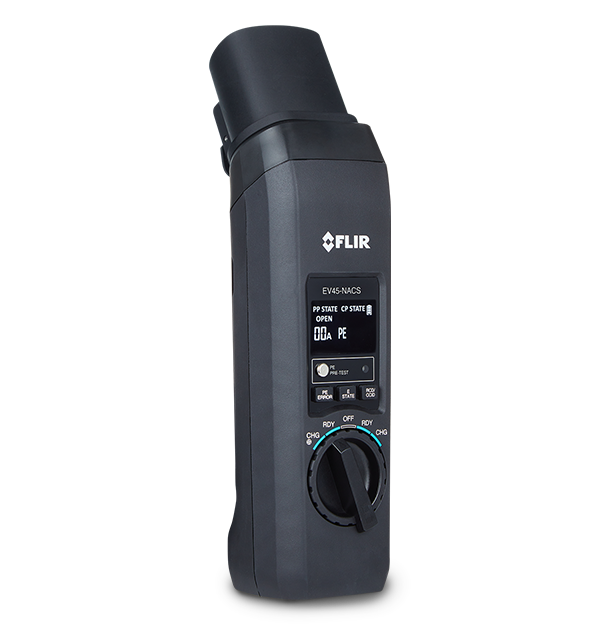

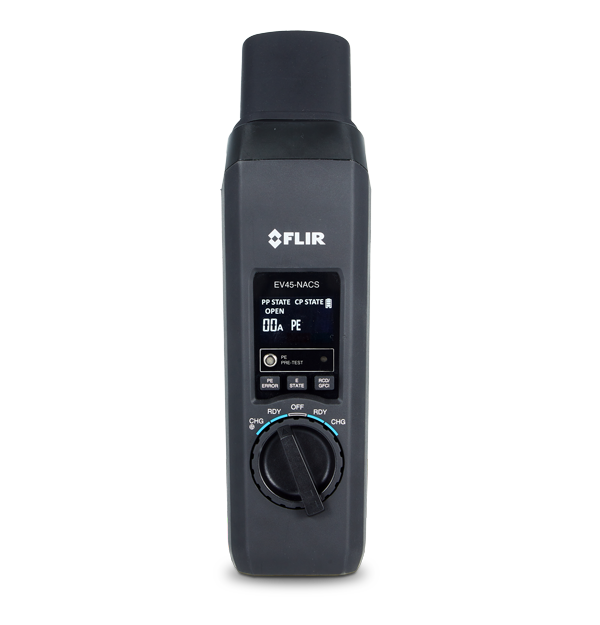

Comprehensive EV charger status indication with color LCD display

Accurately measure charging voltage and frequency with the optional Flir DM286 digital multimeter featuring METERLiNK® connectivity

Technische Daten

Markierter
Sicherheitskategorie	CAT II-300 V, IEC 61010-1

Messung und Analyse
CP Error (E state) Simulation	Pass/Fault (CP signal short-circuited to PE)
CP State Simulation	A (Disconnected), B (Connected), C (Charging), D (Charging w/ ventilation), E (Error)
Eingangstyp	Measuring Terminals: L1, L2/N, PE Output for test purposes only: Max. 250 V (Single Phase), 50 / 60 Hz, CAT II 300 V, Max. 10 A
PE Error Simulation	Pass/Fault (Interruption of PE conductor)
PE Pre-Test	Pass/Fault (>50 V AC/DC between PE conductor and touch sensor)
PP State Simulation	Open, 13 A, 20 A, 32 A, 63 A
RCD/CCID Trip Test	Pass/Fault (Test RCD/CCID activation once tripped)
Voltage Phase Indication	L1, L2

Kommunikation und Datenspeicher
Ausgang	(Optional) DM286: CP State C / D for AC Voltage with Hz measurement (Optional) IM75-2: CP State B for EV cable Insulation Test
Steckverbindertypen	NACS (Built-in), Type 1 (converter included)

Stromversorgung
Akkulaufzeit	Approx. 100 hours, with alkaline batteries
Akkutyp	4 × AA Alkaline batteries

Allgemeine Angaben
Abmessungen (L × B × H)	237 mm × 65 mm × 56 mm (9.33 in × 2.56 in × 2.20 in)
Gewicht	600 g (1.32 lbs)

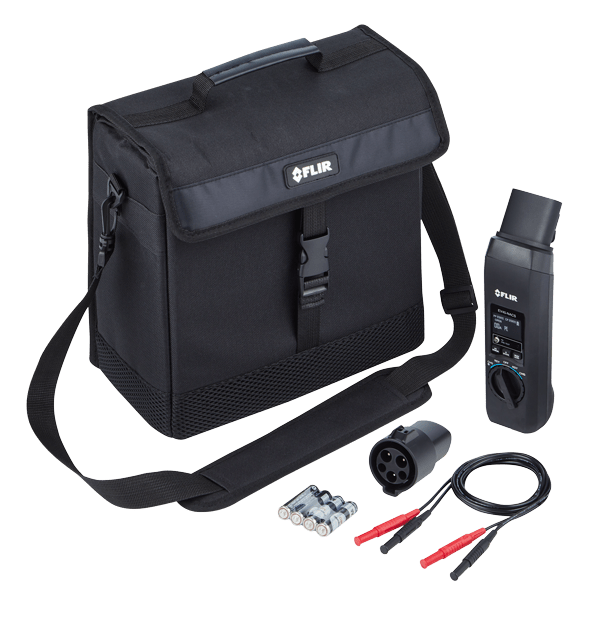

Verpackungsinhalt	EV45-NACS Converter for Type 1 Carrying Pouch Test Leads 4 × AA batteries User Manual

Umgebungsfaktoren und Zertifizierungen
Betriebshöhe	2000 m (6560 ft)
EMV	EN61326-1
Garantie	Limited 3-Year Warranty https://www.flir.com/testwarranty
Lagertemperatur und relative Luftfeuchte [rF]	−20°C to 60°C (−4°F to 140°F), 0 to 80% RH (without batteries)
Operating Ambient Temperature and Relative Humidity (RH)	−10°C to 30°C (14°F to 86°F), <85% RH 30°C to 40°C (86°F to 104°F), <75% RH 40°C to 50°C (104°F to 122°F), <45% RH
Sicherheitskategorie	CAT II-300 V, IEC 61010-1
Zertifizierungen	ETL, CE
