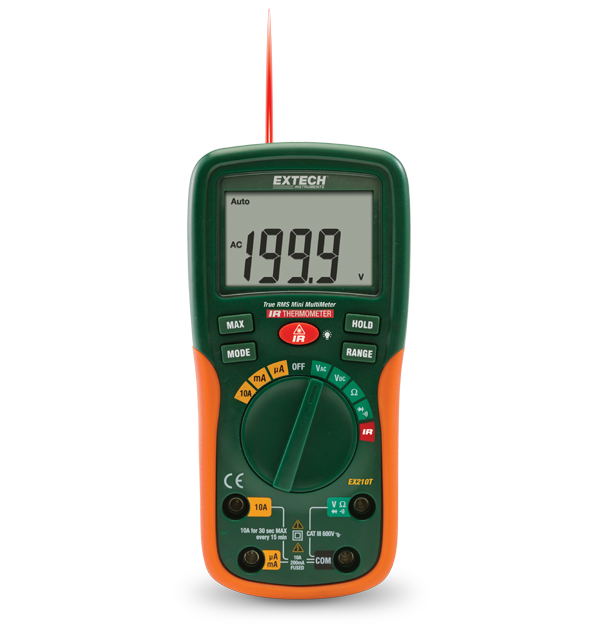

Extech EX210T
TrueRMS Digital Multimeter with IR
The Extech EX210T is a TrueRMS Digital Multimeter with IR. The meter auto ranges and has a 2000 count large LCD display. It measures AC/DC voltage and current, resistance, and temperature (IR). Its True RMS measurements make this meter more accurate and reliable when measuring distorted waveforms, and its built in IR thermometer has a 4:1 distance to target ratio, visually aided by the built in laser pointer. This meter has a CAT III 600 V safety rating and is complete with a year warranty, test leads, and a 9 V battery.
Technische Daten
| Allgemeine technische Daten | |
|---|---|
| Diodentest | Yes |
| Durchgang | Yes |
| Echteffektivwert (TRMS) | Yes |
| Gleichspannung | 600V |
| Gleichspannung Grundgenauigkeit | ±0.5% |
| Gleichspannung Max. Auflösung | 0.1mV |
| Gleichstrom Max. Auflösung | 0.1µA |
| Gleichstromstärke | 10A |
| Temperatur (IR) Grundgenauigkeit | -5 to 446 °F (-20 to 230 °C) |
| Temperatur (RTD) | 0.1°F/°C |
| Wechselspannung | 600V |
| Wechselspannung Max. Auflösung | 0.1mV |
| Wechselstrom | 10A |
| Wechselstrom Max. Auflösung | 0.1µA |
| Widerstand | 20MΩ |
| Widerstand Max. Auflösung | 0.1Ω |
| Weitere Details | |
|---|---|
| Abmessungen | 5.8 × 2.9 × 1.6" (147 × 76 × 42mm) |
| Garantie | 2 years |
| Gewicht | 9.17oz (260g) |
| Sicherheitskategorie | CATIII - 600V |
| Stromversorgung | 1 × 9V battery |
| Zertifizierungen | CE, ETL |
Resources & Support
User Manual
Extech EX210 EX210T Bedienungsanleitung
User Manual
Extech EX210 EX210T User Manual
Certification
Extech EX210T Declaration of Conformity
Datasheet
Extech EX205T EX210T Datasheet
Export Restrictions
The information contained in this page pertains to products that may be subject to the International Traffic in Arms Regulations (ITAR) (22 C.F.R. Sections 120-130) or the Export Administration Regulations (EAR) (15 C.F.R. Sections 730-774) depending upon specifications for the final product; jurisdiction and classification will be provided upon request.
