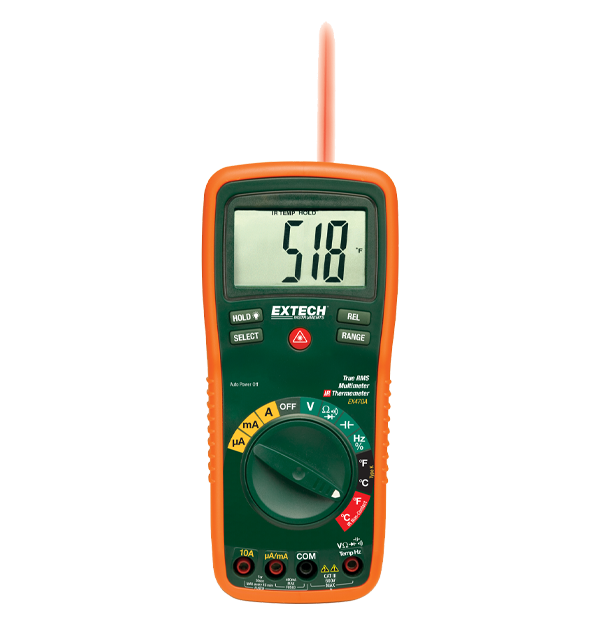

Extech EX470
12 Function True RMS Professional MultiMeter + InfraRed Thermometer
The Extech EX470 True RMS Multimeter and Infrared Thermometer with 2 Type K remote probes is the perfect meter for HVAC or plant maintenance. The IR thermometer measures surface temperature from -20°C to 270°C (-4°F to 518°F) without contact. The built-in laser pointer centers the measuring area. Multimeter functions include AC/DC voltage to 600 V, AC/DC current to 20 A, resistance to 40 MOhm, continuity, and diode test. It also includes a Type K thermometer for contact or air temperature measurements from -20°C to 750°C (-4°F to 1832°F). Advanced functions include capacitance, frequency, and duty cycle. The meter comes complete with test leads, Type K temperature probe, 9 V battery, protective holster, adjustable tilt stand, and velcro hanging strap.
Technische Daten
| Allgemeine technische Daten | |
|---|---|
| Echteffektivwert (TRMS) | Yes |
| Frequenz | 0.001Hz to 10MHz |
| Gleichspannung | 0.1mV to 1000V |
| Gleichspannung Grundgenauigkeit | ±0.3% |
| Gleichstromstärke | 0.1µA to 20A |
| Kapazität | 0.01nF to 100µF |
| Tastgrad | 0.1% to 99.9% |
| Temperatur (IR) Grundgenauigkeit | 58 to 518°F (-50 to 270°C) |
| Temperatur (Typ K) Max. Auflösung | -4 to 1382°F (-20 to 750°C) |
| Wechselspannung | 0.1mV to 750V |
| Wechselstrom | 0.1µA to 20A |
| Widerstand | 0.1Ω to 40MΩ |
| Weitere Details | |
|---|---|
| Abmessungen | 7.25 × 3.25 × 2.25" (184 × 83 × 57mm) |
| Garantie | 3 years |
| Gewicht | 12.3oz (349g) |
| Sicherheitskategorie | CATIII - 1000V, CATIV - 600V |
| Stromversorgung | 1 × 9V battery |
| Zertifizierungen | CE, UL |
