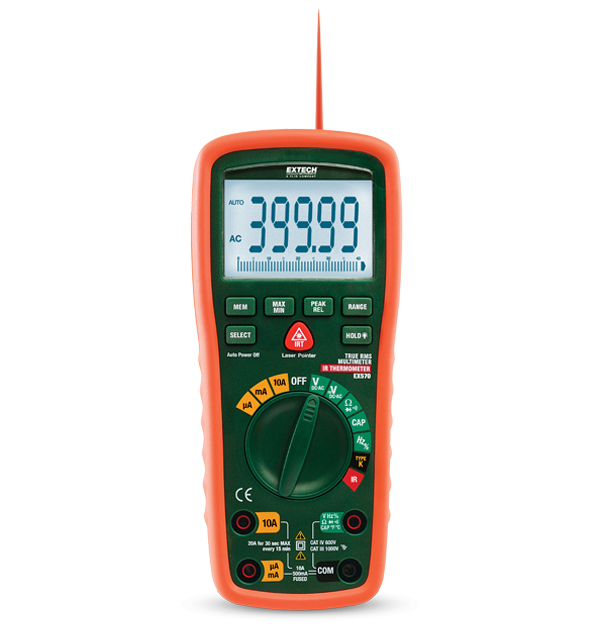

Extech EX570
12 Function True RMS Industrial MultiMeter with IR Thermometer
The rugged Extech EX570 is ideal for industrial/plant maintenance and electrical contractors. It offers advanced multimeter functions, high accuracy (0.06%), True RMS precision plus an integrated infrared thermometer patented by Extech. The EX570 protects users with category IV-600 V and category III-1000 V safety ratings. It measures voltage, millivolt, current, resistance, capacitance, and frequency plus diode and continuity tests. Added functions include min/max, average, hold, relative, peak hold, and quick note memory for 3 readings. Thermocouple temperature readings are complemented by an infrared thermometer for safe, non-contact temperature measurement (30:1 distance to spot ratio). Built in IR simplifies the identification of overheating motors, electrical panels, and other components from a distance and without a separate thermometer. Complete with double-molded test leads, temperature probe, magnetic hanging strap, 9 V battery, and case.
Technische Daten
| Allgemeine technische Daten | |
|---|---|
| Abstand-zu-Ziel-Verhältnis | 30:1 |
| Diodentest | 2.8V |
| Durchgang | Yes |
| Echteffektivwert (TRMS) | Yes |
| Frequenz | 0.0001Hz to 40MHz |
| Gleichspannung | 0.01mV to 1000V |
| Gleichstromstärke | 0.01µA to 20A |
| Kapazität | 0.001nF to 10,000µF |
| Tastgrad | 0.01 to 99.99% |
| Temperatur (IR) Grundgenauigkeit | -22 to 1022°F (-30 to 550°C) |
| Temperatur (Typ K) Max. Auflösung | -50 to 1382°F (-45 to 750°C) |
| Wechselspannung | 0.01mV to 1000V |
| Wechselstrom | 0.01µA to 20A |
| Widerstand | 0.01Ω to 40MΩ |
| Weitere Details | |
|---|---|
| Abmessungen | 7.25 × 3.25 × 2.25" (184 × 83 × 57mm) |
| Display | 40000-count segment LCD |
| Garantie | 3 years |
| Gewicht | 12.3oz (349g) |
| IP-Schutzart | IP64 |
| Sicherheitskategorie | CATIII - 1000V, CATIV - 600V |
| Stromversorgung | 1 × 9V battery |
| Zertifizierungen | CE |
