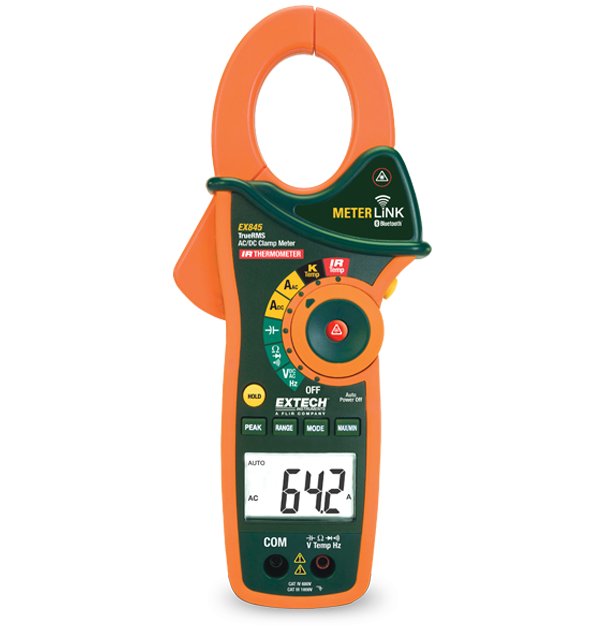

Extech EX845
1000A AC/DC True RMS Clamp/DMM with IR Thermometer and Bluetooth MeterLink™
The Extech EX845 is a CAT IV True RMS 1000 A AC/DC clamp meter/multimeter with a built in IR Thermometer and wireless capability. The MeterLink™ Bluetooth transmitter wirelessly transmits voltage and current readings to selected FLIR thermal imaging IR cameras in order to incorporate meter readings with thermal images. Manual data collection results in unnecessary complexity and risk. MeterLink eliminates this problem by allowing the thermographer to quickly take a current reading on an electrical target and associate those readings with the corresponding targets stored in an infrared image. Complete with CAT IV test leads, 9 V battery, Type K probe, pouch case, and Professional Test Lead Set.
Technische Daten
| Allgemeine technische Daten | |
|---|---|
| Anlaufstromstärke | Yes |
| Diodentest | Yes |
| Durchgang | Yes |
| Echteffektivwert (TRMS) | Yes |
| Frequenz | 0.001kHz to 4kHz |
| Frequenz Grundgenauigkeit | ±1.5% |
| Gleichspannung | 0.1mV to 1000V |
| Gleichspannung Grundgenauigkeit | ±2.8% |
| Gleichstrom Grundgenauigkeit | ±2.8% |
| Gleichstromstärke | 0.1 to 1000A |
| Kapazität | 0.001nF to 40,000µF |
| Temperatur (IR) Grundgenauigkeit | -58 to 518°F (-50 to 270°C) |
| Temperatur (IR) Max. Auflösung | ±2.0% of reading or ±4°F/±2°C |
| Temperatur (Typ K) Max. Auflösung | -4 to 1400°F (-20 to 760°C) |
| Temperatur (Typ N) | ±(3% of reading + 9°F/5°C) |
| Wechselspannung | 0.1mV to 1000V |
| Wechselspannung Grundgenauigkeit | ±1.5% |
| Wechselstrom | 0.1 to 1000A |
| Wechselstrom Grundgenauigkeit | ±2.8% |
| Widerstand | 0.1 to 40MΩ |
| Zangenöffnung | 1.7" (43mm), conductors up to 750MCM or two 500MCM |
| Weitere Details | |
|---|---|
| Abmessungen | 10.6 × 4.3 × 2" (270 × 110 × 50mm) |
| Garantie | 3 years |
| Gewicht | 13.6oz (386g) |
| Sicherheitskategorie | CATIII - 1000V, CATIV - 600V |
| Stromversorgung | 1 × 9V battery |
| Zertifizierungen | CE, ETL |
