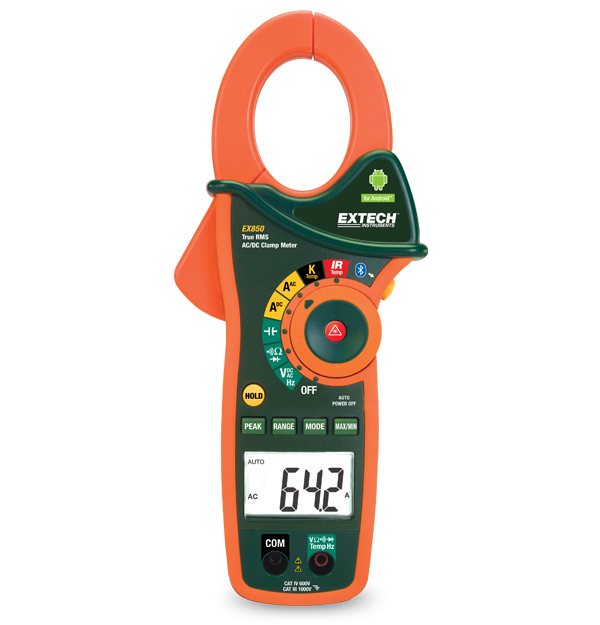

Extech EX850
True RMS 1000A AC/DC Clamp Meter with Bluetooth®
The Extech EX850 is a 1000 A True RMS AC/DC Clamp Meter with Bluetooth®, capable of transmitting key electrical readings to android mobile devices. The EX850 measures AC/DC current and voltage, resistance, capacitance, frequency, IR temperature, and continuity. This clamp meter has a 4.3 cm (1.7 in) jaw opening for conductors up to 750 MCM or two 500 MCM. The EX850 also has a 4000 count backlit LCD display, auto ranging and manual ranging button, as well as data hold, min/max, and auto power off functions. This product has a CAT IV 600 V safety rating and comes with CAT IV test leads, 9 V battery, general purpose Type K probe, user's manual, and pouch case.
Technische Daten
| Allgemeine technische Daten | |
|---|---|
| Anlaufstromstärke | Yes |
| Diodentest | Yes |
| Durchgang | Yes |
| Echteffektivwert (TRMS) | Yes |
| Frequenz | 0.001kHz to 4kHz |
| Frequenz Grundgenauigkeit | ±1.5% |
| Gleichspannung | 0.1mV to 1000V |
| Gleichspannung Grundgenauigkeit | ±2.8% |
| Gleichstrom Grundgenauigkeit | ±2.8% |
| Gleichstromstärke | 0.1 to 1000A |
| Kapazität | 0.001nF to 40,000µF |
| Temperatur (IR) Grundgenauigkeit | -58 to 518°F (-50 to 270°C) |
| Temperatur (IR) Max. Auflösung | ±2.0% of reading or ±4°F/±2°C |
| Temperatur (Typ K) Max. Auflösung | -4 to 1400°F (-20 to 760°C) |
| Temperatur (Typ N) | ±(3% of reading + 9°F/5°C) |
| Wechselspannung | 0.1mV to 1000V |
| Wechselspannung Grundgenauigkeit | ±1.5% |
| Wechselstrom | 0.1 to 1000A |
| Wechselstrom Grundgenauigkeit | ±2.8% |
| Widerstand | 0.1 to 40MΩ |
| Zangenöffnung | 1.7" (43mm), conductors up to 750MCM or two 500MCM |
| Weitere Details | |
|---|---|
| Abmessungen | 10.6 × 4.3 × 2" (270 × 110 × 50mm) |
| Garantie | 2 Years |
| Gewicht | 13.6oz (386g) |
| Sicherheitskategorie | CATIII - 1000V, CATIV - 600V |
| Stromversorgung | 1 × 9V battery |
| Zertifizierungen | CE |
