Discontinued

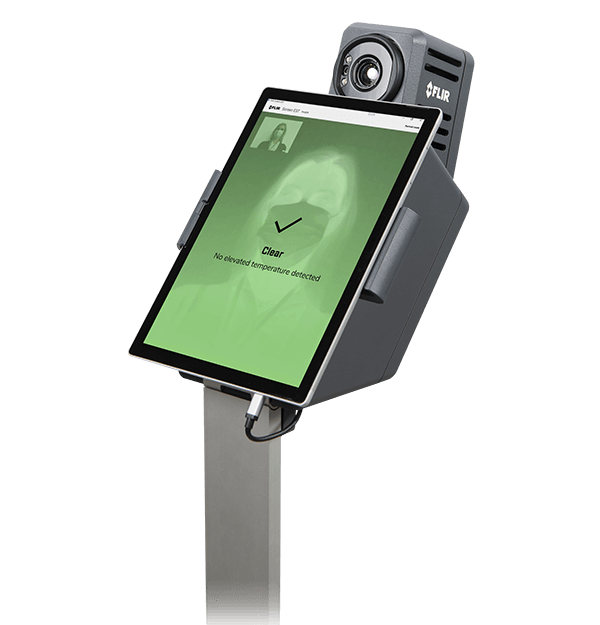

FLIR EST™ Kiosk
Skin Temperature Screening Solution
Quickly screen passengers, customers, or employees for signs of elevated skin temperature with this turnkey solution. The FLIR EST Kiosk combines the temperature measurement capabilities of a thermal imaging camera plus FLIR Screen-EST™ software with the convenience of a tablet display and floor stand. This kiosk sets up in minutes, offering fully automated, self-service screening that targets the inner canthus (corner of the eye) for accurate skin temperature measurement.
Faster, Easier Skin Temperature Screening
Ready to use right out of the box with pre-installed FLIR Screen-EST software, customizable instructions, and alert displays.
Automatically targets the inner canthus for fast, accurate screening.
Advanced factory calibration combined with relative measurement methodology ensures screening accuracy and avoids false-positives.
Technische Daten
| Highlighted | |
|---|---|
| Digitaler E/A, Steckverbindertyp | M12 12-pin A-coded, Male (shared with external power) |
| Zweck Digitalausgang | As function of alarm, output to external device, for example when the screening alarm is triggered |
| Digitalausgänge | 3x opto-isolated, 0–30 V DC, max. 300 mA (derated to 200 mA at 60C); Solid state opto relay; 1x dedicated as Fault output (NC) |
| Kodierung | Video stream – H.264, MPEG4, or MJPEG; Radiometric stream – Compressed JPEG-LS, FLIR radiometric |
| Ethernetschnittstelle | Wired, Wi-Fi |
| WLAN | (optional) RP-SMA, Female; Dipole antenna 2.4/5 GHz (gain: maximum 2 dBi); Peer to peer (ad hoc) or infrastructure (network) |
| Blendenzahl | 1.3 |
| Bildfrequenz | |
| Bildfrequenz | 30 Hz |
| Auflösung | |
| Thermische Empfindlichkeit / NETD | <40 mK at 30°C (86°F) |
| Genauigkeit | ±0.3°C (±0.5°F) when used with FLIR Screen-EST™ software |
| Kommunikation und Datenspeicher | |
|---|---|
| Digitalausgänge | 3x opto-isolated, 0–30 V DC, max. 300 mA (derated to 200 mA at 60C); Solid state opto relay; 1x dedicated as Fault output (NC) |
| Digitaler E/A, Steckverbindertyp | M12 12-pin A-coded, Male (shared with external power) |
| Digitaler E/A, Trennspannung | 500 VRMS |
| Ethernet | Control, result, image, and power |
| Ethernet, Steckverbindertyp | M12 8-pin X-coded, Female; RP-SMA, Female |
| Ethernetkommunikation | TCP/IP socket-based FLIR proprietary |
| Ethernetschnittstelle | Wired, Wi-Fi |
| Ethernetstandard | IEEE 802.3 |
| Ethernettyp | 1000 Mbps |
| Kodierung | Video stream – H.264, MPEG4, or MJPEG; Radiometric stream – Compressed JPEG-LS, FLIR radiometric |
| WLAN | (optional) RP-SMA, Female; Dipole antenna 2.4/5 GHz (gain: maximum 2 dBi); Peer to peer (ad hoc) or infrastructure (network) |
| Zweck Digitalausgang | As function of alarm, output to external device, for example when the screening alarm is triggered |
| Bildgebung und optische Daten | |
|---|---|
| Bildfrequenz | 30 Hz |
| Bildfrequenz | |
| Bildquelle | Video stream 0 – visual / IR / MSX®; Video stream 1 – visual; Radiometric video stream – IR |
| Blendenzahl | 1.3 |
| Brennweite | 17 mm (0.67 in) |
| Detektorraster | 17 µm |
| Focal Plane Array (FPA) | Uncooled microbolometer |
| Fokus | One-shot contrast, motorized, manual |
| IR-Auflösung | 464 × 348 |
| Kontrastverbesserung | FSX® / Histogram equalization (IR only) |
| Mindestfokusabstand | 0.15 m (0.49 ft) |
| Objektiverkennung | Automatic |
| Overlay | Video stream 0 – With/Without; Video stream 1 – No |
| Pixelformat | Video stream – YUV411; Radiometric stream – MONO 16 |
| Räumliche Auflösung (IFOV) | 0.90 mrad/pixel |
| Sichtfeld (FOV) | 24° × 18° |
| Spektralbereich | 7.5–14 µm |
| Streaming-Auflösung | Video stream 0 – 640 × 480 pixels; Video stream 1 – 1280 × 960 pixels; Radiometric stream – 464 × 348 pixels |
| Thermische Empfindlichkeit / NETD | <40 mK at 30°C (86°F) |
| Videostreaming | Bit rate set through camera web |
| Messung und Analyse | |
|---|---|
| Genauigkeit | ±0.3°C (±0.5°F) when used with FLIR Screen-EST™ software |
| Objekttemperaturbereich | 15°C to 45°C (59°F to 113°F) |
| Allgemeine Angaben | |
|---|---|
| Abmessungen (L × B × H) | 360 × 270 × 1300 mm (14 × 11 × 51.2 in) |
| Gewicht | 8.3 kg (18 lb.) |
| Lieferumfang | Camera, Surface® Pro7 tablet, tablet stand, cables (Europe, UK, US), screening position floor sticker (T131181), FLIR Screen-EST™ license card, printed documentation |
| Umgebungsfaktoren und Zertifizierungen | |
|---|---|
| Garantie | http://www.flir.com/warranty/ |
| Stromversorgung | |
|---|---|
| Betrieb mit externer Stromversorgung | 24/48 V DC 8 W max |
| Externe Spannung | Allowed range 18–56 V DC |
| Leistungsaufnahme | 7.5 W at 24 V DC typical; 7.8 W at 48 V DC typical; 8.1 W at 48 V PoE typical |
| Stromversorgungsanschluss | Camera: M12 12-pin A-coded, Male (shared with Digital I/O) |
| Benutzeroberfläche | |
|---|---|
| Webschnittstelle | Yes |
