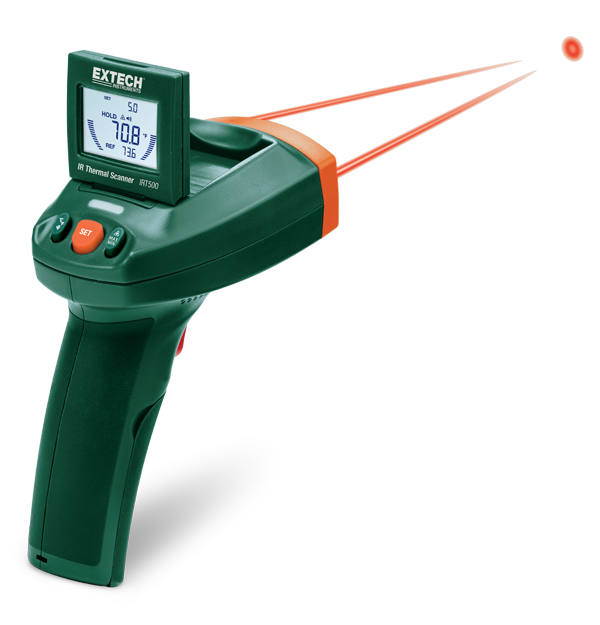

Extech IRT500
Dual Laser IR Thermal Scanner with Adjustable Display
More than just an IR Thermometer, the Extech IRT500 IR Thermal Scanner is designed with a dual laser, an audible/visual alarm feature, 5 preset threshold settings (1°, 5°, 10°, and set min/max), and 3 color LED indicators to make it easy to locate hot and cold spots quickly. Users simply point at targets and scan. The 3 color LED indicates high (red), normal (green), or low (blue) when scanning for temperature irregularities. Likewise, the audible alarm increases as temperature increases or decreases. It features a fast, 150 millisecond response for capturing spikes in temperature. The dual laser indicates ideal measuring distance where the 2 lasers converge to a 2.5 cm (1 in) target spot. Other features include a tilt adjustable LCD display with bright white backlight and dual barographs. Trigger lock function provides continuous use for scanning large areas. Comes with 9 V battery, carrying case, and user manual.
Technische Daten
| Allgemeine technische Daten | |
|---|---|
| Abstand-zu-Ziel-Verhältnis | 20:1 |
| Emissionsgrad | 0.95, fixed |
| Farbübergangsschwellenwert | 1°, 5°, 10°,set Min, set Max |
| Temperatur (IR) Grundgenauigkeit | -22 to 500 °F (-30 to 260 °C) |
| Temperatur (IR) Max. Auflösung | ±(1% of reading + 3.3 °F/1.5 °C) |
| Temperatur (RTD) | 0.1 °F/ °C |
| Zielerfassung | dual laser |
| Weitere Details | |
|---|---|
| Abmessungen | 6.6 × 3.2 × 2.3" (168 × 82 × 58mm) |
| Garantie | 2 years |
| Gewicht | 5.7oz (163g) |
| Stromversorgung | 1 × 9V battery |
| Zertifizierungen | CE |
Ressourcen und Support
User Manual
Extech IRT500 Bedienungsanleitung
Datasheet
Extech IRT500 Datasheet
User Manual
Extech IRT500 User Manual
Certification
Extech IRT500 Declaration of Conformity
