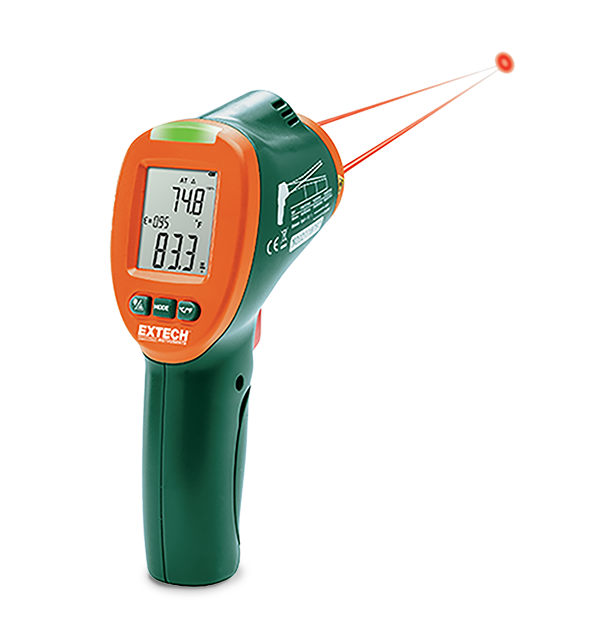

Extech IRT600
Dual Laser IR Thermal Condensation Scanner
The Extech IRT600 is a Dual Laser IR Thermal Condensation Scanner. This 12:1 infrared psychrometer with a 3 color LED dew point alarm measures temperature and humidity, then calculates dew point and warns the user when conditions for mold growth exist. It can be great for processes that require surface temperature control and monitoring. A green LED changes to yellow and then to red as the surface temperature reading gets closer to and then equals the calculated dew point reading. Dual lasers indicate ideal measuring distance where the two lasers converge to a 2.5 cm (1 in) target spot. Complete with case and 9 V battery.
Technische Daten
| Allgemeine technische Daten | |
|---|---|
| Abstand-zu-Ziel-Verhältnis | 12:1 |
| Emissionsgrad | 0.95, fixed |
| Reaktionszeit | 150ms |
| Relative Luftfeuchtigkeit | 20 to 80% |
| Relative Luftfeuchtigkeit Grundgenauigkeit | |
| Taupunkt | -22 to 212 |
| Temperatur (IR) Grundgenauigkeit | -22 to 662 |
| Temperatur (IR) Max. Auflösung | |
| Temperatur (Luft) | 32 to 122 |
| Temperatur (Luft) Grundgenauigkeit | |
| Temperatur (Luft) Max. Auflösung | 0.1 |
| Temperatur (RTD) | 0.1 |
| Zielerfassung | dual laser |
| Weitere Details | |
|---|---|
| Abmessungen | 6.6 × 3.2 × 2.3" (168 × 82 × 58mm) |
| Garantie | 2 years |
| Gewicht | 5.7oz (163g) |
| Stromversorgung | 1 × 9V battery |
| Zertifizierungen | CE, NIST (limited to certain functions) |
Resources & Support
User Manual
Extech IRT600 Bedienungsanleitung
Certification
Extech IRT600 Declaration of Conformity
Datasheet
Extech IRT600 Datasheet
User Manual
Extech IRT600 User Manual
Export Restrictions
The information contained in this page pertains to products that may be subject to the International Traffic in Arms Regulations (ITAR) (22 C.F.R. Sections 120-130) or the Export Administration Regulations (EAR) (15 C.F.R. Sections 730-774) depending upon specifications for the final product; jurisdiction and classification will be provided upon request.
