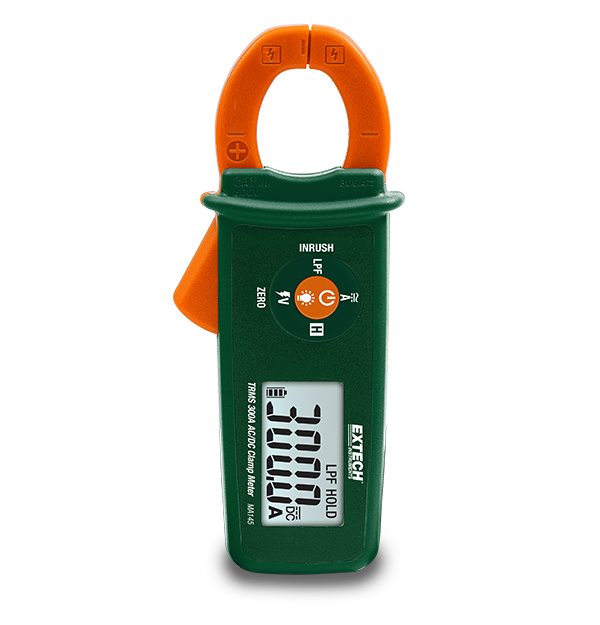

Extech MA145
True RMS 300A AC/DC Clamp Meter
The MA145 is a Compact AC/DC Clamp Meter with NCV detector. This clamp meter takes True RMS measurements for accurate readings of noisy, distorted, or non-sinusoidal waveforms. The MA145 can measure up to 300 A AC and DC. Complete with carrying case and two LR44 batteries. UL listed with a CAT III 600 V safety rating.
Technische Daten
| Allgemeine technische Daten | |
|---|---|
| Berührungsloser Spannungsprüfer (NCV) | 80 to 600VAC |
| Echteffektivwert (TRMS) | Yes |
| Gleichstrom Grundgenauigkeit | ±1.5% |
| Gleichstrom Max. Auflösung | 0.01A |
| Gleichstromstärke | 60A, 300A |
| Wechselstrom | 60A, 300A |
| Wechselstrom Grundgenauigkeit | ±1.5% |
| Wechselstrom Max. Auflösung | 0.01A |
| Zangenöffnung | 0.8" (22mm), conductors up to 300MCM |
| Weitere Details | |
|---|---|
| Abmessungen | 5.8 × 2.4 × 1.2" (147 × 60 × 31mm) |
| Garantie | 2 years |
| Gewicht | 4.9oz (140g) |
| Sicherheitskategorie | CATIII - 600V |
| Stromversorgung | 2 × LR44 (1.5V) batteries |
| Zertifizierungen | CE, UL |
Resources & Support
User Manual
Extech MA145 Bedienungsanleitung
Certification
Extech MA145 Declaration of Conformity
User Manual
Extech MA145 User Manual
Datasheet
Extech MA140 MA145 Datasheet
