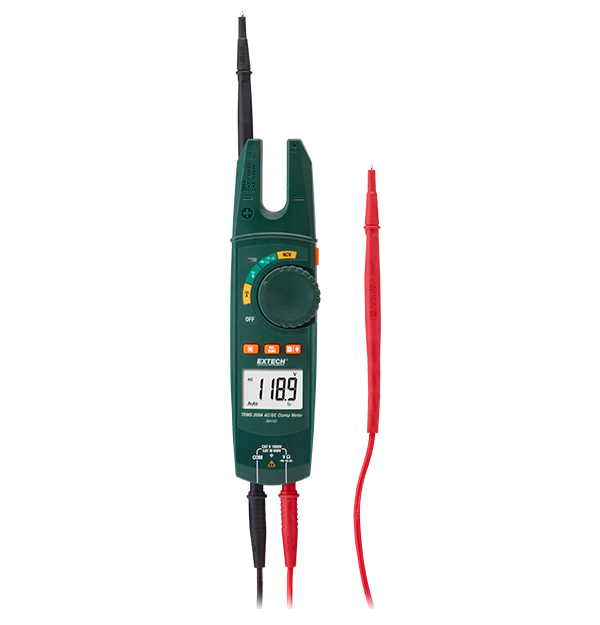

Extech MA160
True RMS 200A AC/DC Open Jaw Clamp Meter
The Extech MA160 is an open jaw True RMS 200 A AC/DC Clamp Meter. Its open jaw design provides quick current measurements in tight locations without breaking the circuit. True RMS provides accurate readings on noisy, distorted, or non-sinusoidal waveforms. The convenient built in non contact voltage (NCV) detector allows quick detection of live voltages while the LED backlight and flashlight help take measurements in dimly lit environments. The MA160 also features AC voltage to 750 V, DC voltage to 1000 V, resistance, capacitance, continuity, and diode test as well as an auto power off and ergonomic housing with built in test lead holders. Complete with test leads, two AA batteries, and pouch.
Technische Daten
| Allgemeine technische Daten | |
|---|---|
| Berührungsloser Spannungsprüfer (NCV) | 100 to 750V |
| Diodentest | Yes |
| Durchgang | Yes |
| Echteffektivwert (TRMS) | Yes |
| Gleichspannung | 1000V |
| Gleichspannung Grundgenauigkeit | ±(0.8% of reading + 3 digits) |
| Gleichspannung Max. Auflösung | 1mV |
| Gleichstrom Grundgenauigkeit | ±(2.5% of reading + 5 digits) |
| Gleichstrom Max. Auflösung | 0.1A |
| Gleichstromstärke | 200A |
| Kapazität | 60mF |
| Kapazität Max. Auflösung | 0.01nF |
| Wechselspannung | 750V |
| Wechselspannung Grundgenauigkeit | ±(2.5% of reading + 3 digits) |
| Wechselspannung Max. Auflösung | 1mV |
| Wechselstrom | 200A |
| Wechselstrom Grundgenauigkeit | ±(2.5% of reading + 5 digits) |
| Wechselstrom Max. Auflösung | 0.1A |
| Widerstand | 60MΩ |
| Widerstand Max. Auflösung | 0.1Ω |
| Zangenöffnung | 0.57" (14.5mm) |
| Weitere Details | |
|---|---|
| Abmessungen | 8.3 × 2.1 × 1.4" (210 × 53 × 35mm) |
| Garantie | 2 years |
| Gewicht | 5.8oz (164g) |
| Sicherheitskategorie | CATIII - 600V |
| Stromversorgung | 2 × AA (1.5V) batteries |
| Zertifizierungen | CE, ETL |
Resources & Support
User Manual
Extech MA160 Bedienungsanleitung
Datasheet
Extech MA160 Datasheet
User Manual
Extech MA160 User Manual
