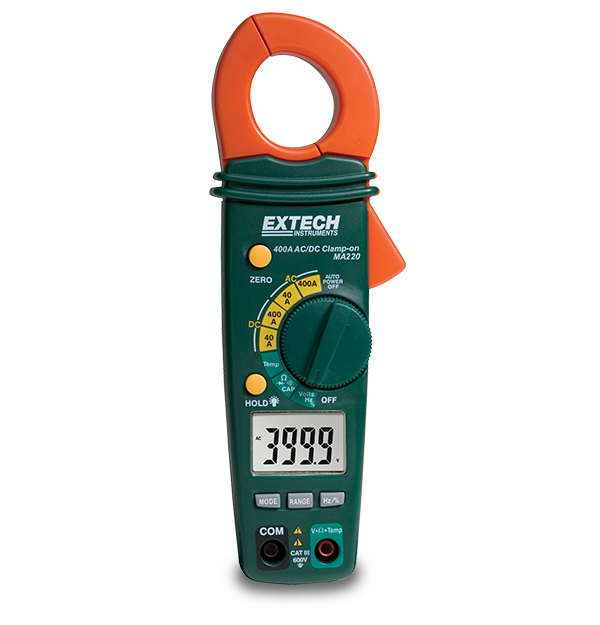

Extech MA220
400A AC/DC Clamp Meter
The Extech MA220 AC/DC Clamp Meter offers high accuracy current measurements and a compact size for measuring in tight locations. The MA220's functions include AC/DC voltage and current (600 V/400 A), capacitance (100 µF), frequency (150 kHz), temperature (-50°C to 1000°C/-58°F to 1830°F), and duty cycle (0.5% to 99.0%). It also has a 4,000 count LCD display, data hold, and auto zero on start up, as well as auto ranging and auto power off functions. This clamp meter has a 23 mm (0.9 in) jaw size that accommodates conductors up to 300 MCM. Comes with test leads, Type K bead wire temperature probe, case, two AAA batteries, and user guide.
Technische Daten
| Allgemeine technische Daten | |
|---|---|
| Durchgang | ≤30Ω Beeper |
| Frequenz | 5Hz, 50Hz, 500Hz, 5kHz, 150kHz |
| Frequenz Max. Auflösung | 0.001Hz |
| Gleichspannung | 400mV, 4V, 40V, 400V, 600V |
| Gleichspannung Grundgenauigkeit | ±1.5% |
| Gleichspannung Max. Auflösung | 0.1mV |
| Gleichstrom Grundgenauigkeit | ±2.5% |
| Gleichstrom Max. Auflösung | 0.01A |
| Gleichstromstärke | 40A, 400A |
| Kapazität | 40nF, 400nF, 4µF, 40µF, 100µF |
| Kapazität Max. Auflösung | 0.01nF |
| Tastgrad | 0.5 to 99.0% |
| Tastgrad Max. Auflösung | 0.1% |
| Temperatur (Typ K) Max. Auflösung | -58 to 1830°F (-50 to 1000°C) |
| Temperatur (Typ N) Grundgenauigkeit | 1°F/°C |
| Wechselspannung | 400mV, 4V, 40V, 400V, 600V |
| Wechselspannung Grundgenauigkeit | 2% |
| Wechselspannung Max. Auflösung | 0.1mV |
| Wechselstrom | 40A, 400A |
| Wechselstrom Grundgenauigkeit | ±3% |
| Wechselstrom Max. Auflösung | 0.01A |
| Widerstand | 400Ω, 4kΩ, 40kΩ, 400kΩ, 4MΩ, 40MΩ |
| Widerstand Max. Auflösung | 0.1Ω |
| Zangenöffnung | 0.9" (23mm), conductors up to 300MCM |
| Weitere Details | |
|---|---|
| Abmessungen | 7.9 × 2 × 1.4" (200 × 50 ×35mm) |
| Garantie | 2 years |
| Gewicht | 7oz (200g) |
| Sicherheitskategorie | CATIII - 600V |
| Stromversorgung | 2 × AAA (1.5V) batteries |
| Zertifizierungen | CE, UL |
