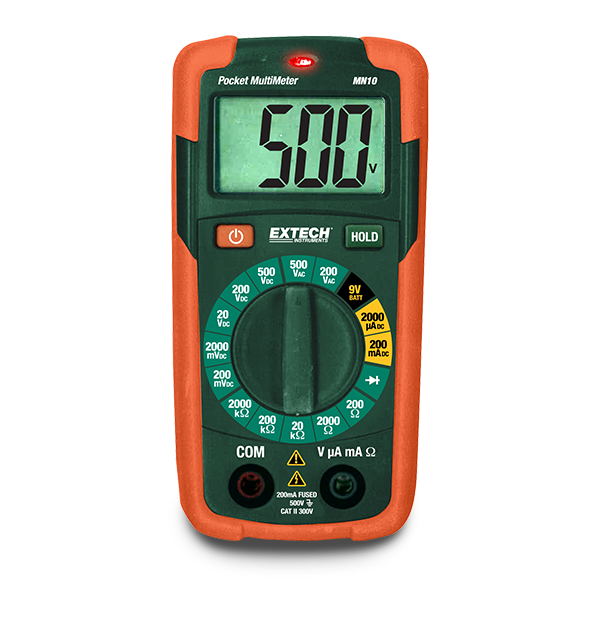

Extech MN10
Pocket MultiMeter + NCV
The Extech MN10 is an affordable, Pocket Multimeter that is fully loaded with functions such as a built in non-contact voltage (NCV) detector, AC/DC voltage, current, resistance, and a battery test. Its easy-to-use manual ranging design allows you to select the voltage, current, or resistance range you are testing. Perfect for students, DIYs, and entry level electricians.
Technische Daten
| Allgemeine technische Daten | |
|---|---|
| Batterietest | 9V |
| Berührungsloser Spannungsprüfer (NCV) | 100 to 600VAC |
| Diodentest | Yes |
| Gleichspannung | 500V |
| Gleichspannung Grundgenauigkeit | ±0.5% |
| Gleichspannung Max. Auflösung | 0.1mV |
| Gleichstrom Grundgenauigkeit | ±1.2% |
| Gleichstrom Max. Auflösung | 1µA |
| Gleichstromstärke | 200mA |
| Wechselspannung | 500V |
| Wechselspannung Grundgenauigkeit | ±1.2% |
| Wechselspannung Max. Auflösung | 0.1V |
| Widerstand | 2000kΩ |
| Widerstand Max. Auflösung | 0.1Ω |
| Weitere Details | |
|---|---|
| Abmessungen | 4.3 × 2.1 × 1.3" (108 × 53 × 32mm) |
| Garantie | 1 year |
| Gewicht | 3.6oz (102g) |
| Sicherheitskategorie | CATII - 300V |
| Stromversorgung | 1 × A23 (12V) battery |
| Zertifizierungen | CE |
Resources & Support
User Manual
Extech MN10 Bedienungsanleitung
User Manual
Extech MN10 User Manual
Datasheet
Extech MN10 Datasheet
