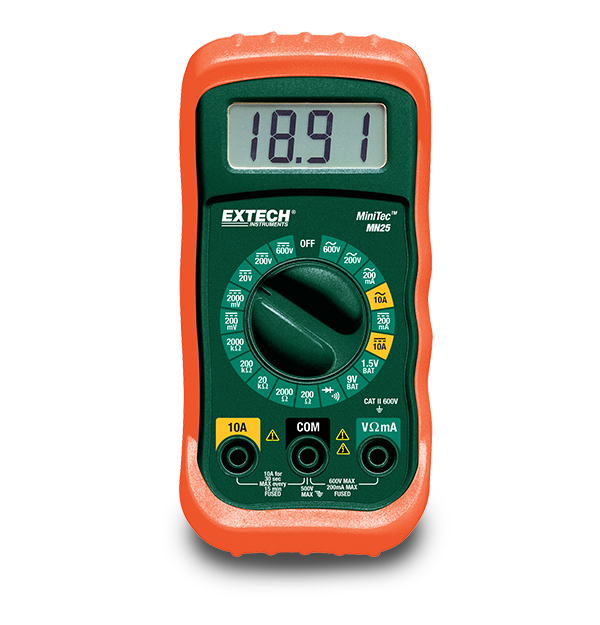

Extech MN25
MiniTec™ Digital MultiMeter
The Extech MN25 MiniTec™ Digital Multimeter has a large, 2,000 count LCD display with a 10 A fuse protection. This meter reads the AC/DC voltage and current, resistance, diode, and continuity. It is capable of running a 1.5 V and 9 V battery test function, and it comes with an overload protection feature with the overload indication signal. This rugged, pocket sized meter is manual ranging and runs eight different functions. The MN25 comes complete with a protective holster, stand, one 9 V battery, and the needed test leads.
Technische Daten
| Allgemeine technische Daten | |
|---|---|
| Batterietest | 9 V, 1.5 V |
| Diodentest | Yes |
| Durchgang | Yes |
| Gleichspannung | 200 mV, 2000 mV, 20 V, 200 V, 600 V |
| Gleichspannung Grundgenauigkeit | ±0.5% |
| Gleichspannung Max. Auflösung | 0.1 mV |
| Gleichstrom Grundgenauigkeit | ±1.2% |
| Gleichstrom Max. Auflösung | 1 µA |
| Gleichstromstärke | 200 mA, 10 A |
| Wechselspannung | 200 V, 600 V |
| Wechselspannung Grundgenauigkeit | ±1.5% |
| Wechselspannung Max. Auflösung | 0.1 V |
| Wechselstrom | 200 mA, 10 A |
| Wechselstrom Grundgenauigkeit | ±1.8% |
| Wechselstrom Max. Auflösung | 1 µA |
| Widerstand | 200 Ω, 2 kΩ, 20 kΩ, 200 kΩ, 2 MΩ |
| Widerstand Max. Auflösung | 0.1 Ω |
| Weitere Details | |
|---|---|
| Abmessungen | 4.8 × 2.4 × 1.6" (122 × 61 × 40 mm) |
| Garantie | 1 year |
| Gewicht | 9.17 oz (260 g) |
| Sicherheitskategorie | CATII - 600V |
| Stromversorgung | 1 × 9V battery |
| Zertifizierungen | UL |
