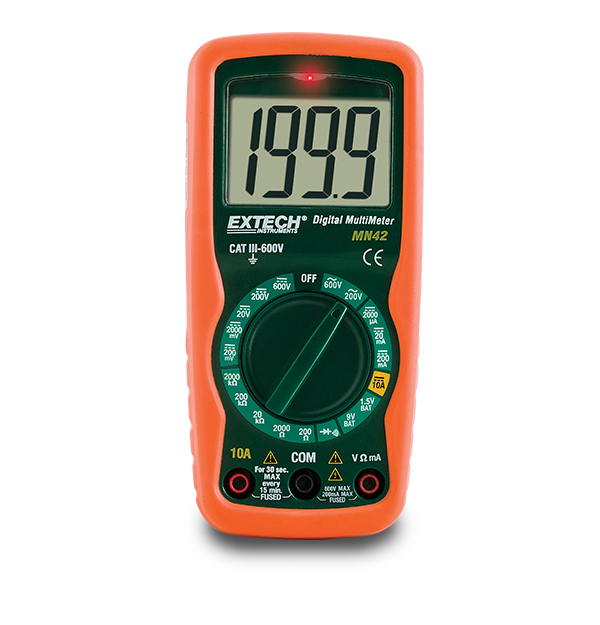

Extech MN42
8 Function Compact MultiMeter + NCV
The compact, manual-ranging Extech MN42 Compact Multimeter is equipped with capabilities a tradesman or technician can use every day, while also perfect for any hobbyist, hacker/maker, or DIYer working on home improvement and A/V projects. Also included is a built in, non contact voltage detector (from 100 VAC to 600 VAC). Freely measure AC/DC voltage, DC current, and resistance, as well as conduct continuity, diode, and battery test. Complete with test leads, 9 V battery, and carrying case.
Technische Daten
| Allgemeine technische Daten | |
|---|---|
| Batterietest | 1.5V / 9V |
| Berührungsloser Spannungsprüfer (NCV) | 100 to 600VAC |
| Diodentest | Yes |
| Durchgang | Yes |
| Gleichspannung | 600V |
| Gleichspannung Max. Auflösung | 0.1mV |
| Gleichstrom Max. Auflösung | 1µA |
| Gleichstromstärke | 10A |
| Wechselspannung | 600V |
| Wechselspannung Max. Auflösung | 0.1V |
| Widerstand | 2MΩ |
| Widerstand Max. Auflösung | 0.1Ω |
| Weitere Details | |
|---|---|
| Abmessungen | 5.9 × 2.75 × 1.8" (150 × 70 × 48mm) |
| Display | 2000-count segment LCD |
| Garantie | 2 years |
| Gewicht | 9oz (255g) |
| Sicherheitskategorie | CATIII - 600V |
| Stromversorgung | 1 × 9V battery |
| Zertifizierungen | CE |
Resources & Support
User Manual
Extech MN42 Bedienungsanleitung
User Manual
Extech MN42 User Manual
Datasheet
Extech MN42-MN47 Datasheet
