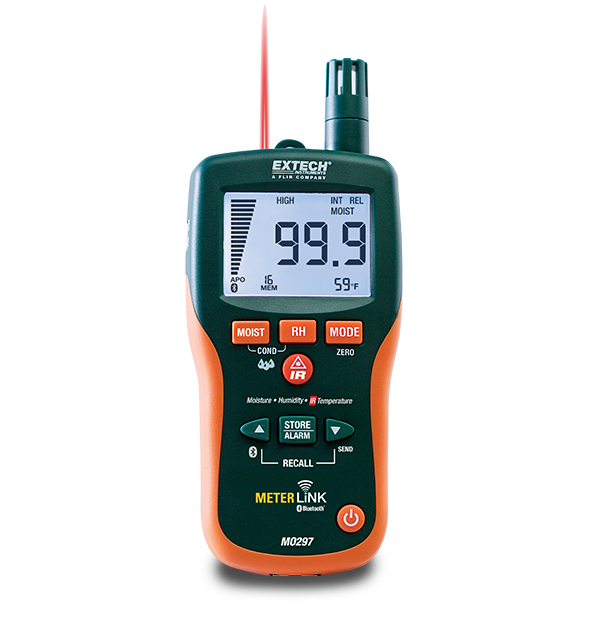

Extech MO297
Pinless Moisture Psychrometer with IR Thermometer and Bluetooth METERLiNK™
The Extech MO297 is an 8 in 1 Pinless Moisture Psychrometer with a built in infrared (IR) thermometer and Bluetooth MeterLink™ transmitter. It can wirelessly transmits moisture and humidity data to select FLIR thermal imaging IR cameras to incorporate meter readings with thermal images. The pinless moisture sensor allows users to measure moisture in various types of wood and building materials with virtually no surface damage. A remote pin-type probe can be used for contact moisture readings in hard to reach or hazardous areas. Complete with the pin probe cable, 9 V battery, and a case.
Technische Daten
| Allgemeine technische Daten | |
|---|---|
| Abstand-zu-Ziel-Verhältnis | 8:1 |
| Bluetooth METERLiNK™ | Yes |
| Dampfdruck | 0 to 20.0kPA |
| Emissionsgrad | 0.95 fixed |
| Kabellose Konnektivität | Bluetooth |
| Messtiefe | up to 0.75" (19mm) |
| Relative Luftfeuchtigkeit | 0 to 100% |
| Relative Luftfeuchtigkeit Grundgenauigkeit | ±3% |
| Relativer Feuchtigkeitsgehalt (Pinless) | 0 to 99.9 |
| Relativer Feuchtigkeitsgehalt Max. Auflösung (Pinless) | 0.1 |
| Sensortyp | Replaceable threaded contact pins, non-penetrating electromagnetic sensor pad |
| Speicher | Manually store/recall 20 data readings |
| Taupunkt | -22 to 199 °F (-30 to 100 °C) |
| Temperatur (IR) Grundgenauigkeit | -4 to 392 °F (-20 to 200 °C) |
| Temperatur (IR) Max. Auflösung | ±3.5% or ±9°F(4.5°C) whichever greater |
| Temperatur (Luft) | -20 to 170 °F (-29 to 77 °C) |
| Temperatur (Luft) Grundgenauigkeit | ±3.6°F (2.0°C) |
| Temperatur (Luft) Max. Auflösung | 0.1°F/°C |
| Temperatur (RTD) | 0.1°F/°C |
| Wasserdampf | 0 to 999gpp (0 to 160g/kg) |
| WME-Feuchtigkeitsgehalt (Pin) | 0 to 99.9% |
| WME-Feuchtigkeitsgehalt Grundgenauigkeit (Pin) | ±5% |
| WME-Feuchtigkeitsgehalt Max. Auflösung (Pin) | 0.1 |
| Weitere Details | |
|---|---|
| Abmessungen | 6.5 × 2.8 × 1.5" (165 × 70 × 38) |
| Garantie | 2 years |
| Gewicht | 7.4oz (210g) |
| Stromversorgung | 1 × 9V battery |
| Zertifizierungen | CE |
