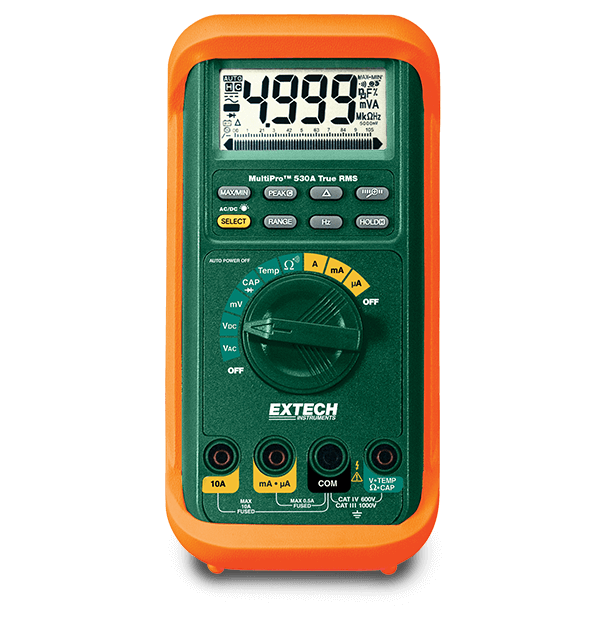

Extech MP530A
MultiPro® High-Performance MultiMeter
The Extech MP530A is a 5000 count, True RMS auto ranging Multimeter that measures AC/DC voltage and current, resistance, temperature, capacitance, and frequency with a 0.08% basic accuracy. Additional features include diode test, continuity check, auto power off, data hold, and low resistance auto lead zero, all on an easy to read, backlit display. Includes protective holster with built-in stand, test leads, Type K bead temperature probe, and 9 V battery.
Technische Daten
| Allgemeine technische Daten | |
|---|---|
| Echteffektivwert (TRMS) | Yes |
| Frequenz | 5Hz to 125kHz |
| Frequenz Grundgenauigkeit | ±(0.01% of reading + 2 digits) |
| Frequenz Max. Auflösung | 0.001Hz |
| Gleichspannung | 50mV, 500mV, 5V, 50V, 500V, 1000V |
| Gleichspannung Grundgenauigkeit | ±(0.08% of reading + 2 digits) |
| Gleichspannung Max. Auflösung | 0.01mV |
| Gleichstrom Grundgenauigkeit | ±(0.2% of reading + 4 digits) |
| Gleichstrom Max. Auflösung | 0.1µA |
| Gleichstromstärke | 500µA, 5000µA, 50mA, 500mA, 5A, 10A |
| Kapazität | 50nF ,500nF, 5µF, 50µF, 500µF, 9999µF |
| Kapazität Max. Auflösung | 0.01nF |
| Temperatur (Typ K) Max. Auflösung | -58 to 1832 °F (-50 to 1000 °C ) |
| Temperatur (Typ N) | ±(0.3% of reading + 3 digits) |
| Temperatur (Typ N) Grundgenauigkeit | 1 °F/ °C |
| Wechselspannung | 50mV, 500mV, 5V, 50V, 500V, 1000V |
| Wechselspannung Grundgenauigkeit | ±(0.8% of reading + 3 digits) |
| Wechselspannung Max. Auflösung | 0.01mV |
| Wechselstrom | 500µA, 5000µA, 50mA, 500mA, 5A, 10A |
| Wechselstrom Grundgenauigkeit | ±(0.8% of reading + 4 digits) |
| Wechselstrom Max. Auflösung | 0.1µA |
| Widerstand | 50Ω, 500Ω, 5kΩ, 50kΩ, 500kΩ, 5MΩ, 50MΩ |
| Widerstand Max. Auflösung | 0.01Ω |
| Weitere Details | |
|---|---|
| Abmessungen | 7.32 × 3.42 × 1.39" (186 × 87 × 35.5mm) |
| Garantie | 2 years |
| Gewicht | 0.75lb (340g) |
| Sicherheitskategorie | CATIV - 600V |
| Stromversorgung | 1 × 9V battery |
| Zertifizierungen | CE, UL |
