Abgekündigt

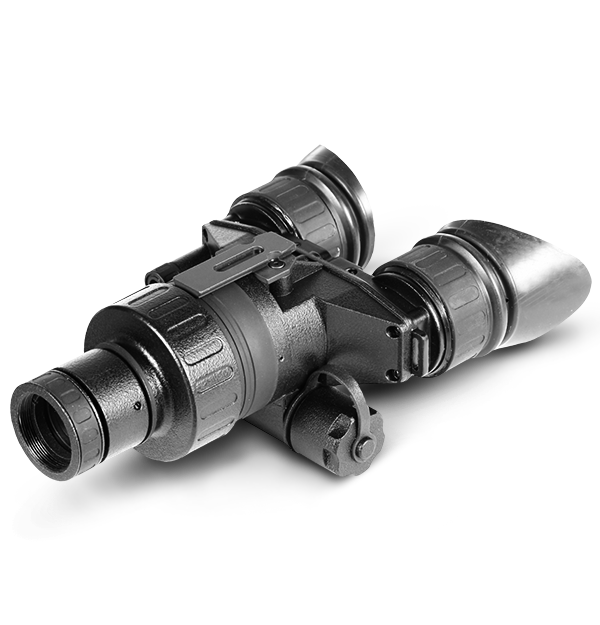

Nyx-7
Night Vision Goggles
The FLIR Nyx-7 bi-ocular goggle system offers clear and bright night vision in minimal light conditions. High-grade optics, intuitive electronics, and Gen 2+ image intensifier tubes offer reliable vision while head or helmet mounting options allow exceptional hands-free use. Available 3x or 5x magnification lenses and attachable high-powered IR illuminator add mid- to long-range viewing capability.
Reliable Vision in a Customizable System
Built-in IR illuminator and ruggedized weather-resistant housing maintain imaging performance in difficult conditions
Head and helmet mounting options, external illuminator, and available magnified lenses enhance user-customization.
Automatic brightness control and 60-hour battery life offer reliable and long-lasting night vision.
Technische Daten
| Sensor und optische Daten | |
|---|---|
| Abstand zur Augenlinse [mm] | 16 mm |
| Auflösung | 47-54 lp/mm |
| Austrittspupillendurchmesser [mm] | 14 mm |
| Automatische Helligkeitsregelung | Yes |
| Diopter einstellen | ±5 diopter |
| Fokusbereich | 0.25 m to Infinity |
| Helles Licht Cut_off | Yes |
| IIT-Generation | Gen 2+ QS ("Quick Silver" White Phosphor) |
| Infrarotbeleuchtung | Yes |
| Objektivsystem | F/1.2 ; 24 mm |
| Photokathodentyp | Multi-Alkali |
| Sichtfeld | 40° |
| Vergrößerung | 1x standard (3x, 5x optional) |
| Umgebungsfaktoren und Zulassungen | |
|---|---|
| Betriebstemperatur | -40°C to +50°C (-40°F to +122°F) |
| Lagertemperatur | -50°C to +70°C (-58°F to +158°F) |
| Stromversorgung | |
|---|---|
| Akkulaufzeit | Up to 60 hours |
| Automatische Abschaltung | Yes |
| Batteriewarnanzeige | Yes (In FOV) |
| Netzteil | CR123 Lithium 3V (1), or AA Alkaline 1.5V (1), or any AA or CR123 type rechargeable batteries with voltage from 1.2V to 3.7V (1) |
| Dateispeicherung und Datenübertragung | |
|---|---|
| Fernsteuerung | - |
| Benutzeroberfläche/-funktionen | |
|---|---|
| Fadenkreuzfarbe | - |
| IR-Anzeige | Yes (In FOV) |
| Manuelle Kontrastabstimmung | No |
| Systemübersicht | |
|---|---|
| Fadenkreuztyp | - |
| Garantie | 2 Years |
| Höhe Scope-Achse über Schiene | - |
| Windage_Elevation Anpassung | - |
| Physikalische Daten | |
|---|---|
| Abmessungen (L x B x H) | 188 x 122 x 70 mm (7.4 x 4.8 x 2.8 in) |
| Produktgewicht | 0.45 kg (0.9 lbs) |
| Stativbefestigung | - |
| Zubehör | |
|---|---|
| Mitgeliefertes Zubehör | One Lithium Battery CR123A, Soft carrying Case, Instruction Manual with Warranty Card, Goggle Kit #2, Battery adapter CR123A 3V / AA 1.5V, Lens Tissue, Packing Box |
| Optionales Zubehör | ARFS3 - Advanced Range Finding Stadia for 3x Afocal Lens, PASGT Helmet Mount Assembly USA #108 with Adapter/Swing Arm #37, MICH Helmet Mount Assembly USA #107 with Adapter/Swing Arm #37, ARFS5 - Advanced Range Finding Stadia for 5x Afocal Lens, 3x Afocal Lens Kit: Lens #22 with Adapter #23, Helmet Mount #183 (Shroud), Adapter #59, 5x Afocal Lens with Adapter #23, XLR-IR Afocal Doubler - Doubles the distance of XLR-IR850 IR beam, XLR-IR850 Detachable X-Long Range Infrared Illuminator w/Dovetail to Weaver Transfer Piece #21, Mil-Standard Hard Shipping/Storage Case #101, Helmet Mount #4 |
