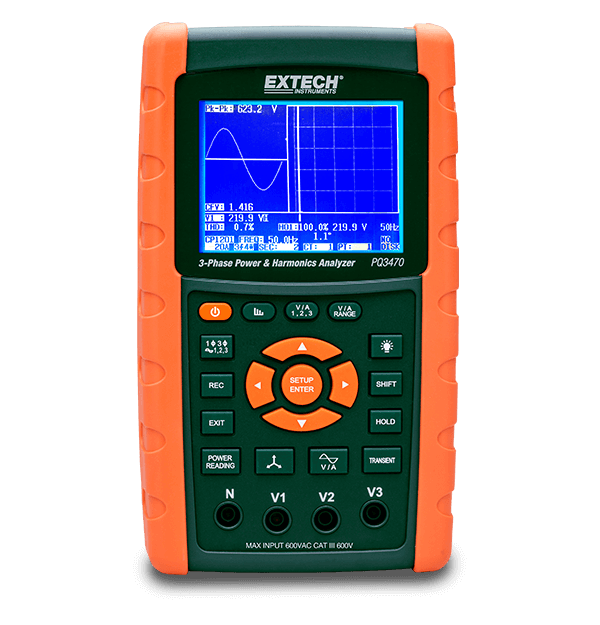

Extech PQ3470
3-Phase Graphical Power & Harmonics Analyzer/Datalogger
The Extech PQ3470 is a 3-phase Graphical Power and Harmonics Analyzer/Datalogger capable of logging up to 30,000 sets of measurements on a removable SD memory card. The meter features a 3-phase voltage or current unbalanced ratio (VUR, AUR) and unbalanced factor, a wide sampling rate range (2 seconds to 2 hours), and a built in clock and calendar. It is capable of capturing transient events such as dip, swell, and outage with programmable threshold (%). Complete with 4 voltage leads with alligator clips, 8 AA batteries, SD card, 100 V - 240 V AC adaptor, and a case. Clamp probes sold separately.
Technische Daten
| Allgemeine technische Daten | |
|---|---|
| Blindleistung | 9.999MVAR |
| Blindleistung Grundgenauigkeit | ±(1.0% of reading) |
| Blindleistungsenergie | 0.0kVARh to 9.999MVARH |
| Blindleistungsenergie Grundgenauigkeit | ±(1.0% of reading) |
| Echteffektivwert (TRMS) | Yes |
| Eingangsbereich | 200mV, 300mV, 500mV, 1V, 2V, 3V (user-selectable) |
| Eingangsbereich Grundgenauigkeit | ±(0.5% of reading) |
| Frequenz | 45Hz to 65Hz |
| Frequenz Grundgenauigkeit | ±0.1Hz |
| Leistungsfaktor | 0.00 to 1.00 |
| Leistungsfaktor Grundgenauigkeit | ±0.04 |
| Oberschwingungen | 1 to 50th |
| Oberschwingungen Grundgenauigkeit | ±2% (1 to 20); ±4% (21 to 31) |
| Phase | -180 ° to +180° |
| Phase Grundgenauigkeit | ±1° |
| Scheinleistung | 9.999MVA |
| Scheinleistung Grundgenauigkeit | ±(1.0% of reading) |
| Scheinleistungsenergie | 0.0KVAh to 9.999MVAH |
| Scheinleistungsenergie Grundgenauigkeit | ±(2.0% of reading) |
| Scheitelfaktor | 1.00 to 99.99 |
| Scheitelfaktor Grundgenauigkeit | ±(5%) |
| Speicher | 30,000 readings (2GB SD memory Card) |
| Spitzenwert Wechselspannung Grundgenauigkeit | ±(5%) |
| Spitzenwert Wechselstrom Grundgenauigkeit | ±(5%) |
| Wechselspannung | 600.0V |
| Wechselspannung Grundgenauigkeit | ±(0.5% of reading) |
| Wechselstrom | up to 3000A (depends on the current clamp probes used) |
| Wechselstrom Grundgenauigkeit | ±(0.5% of reading) |
| Wirkleistung | 9.999MW |
| Wirkleistung Energie Grundgenauigkeit | ±(2.0% of reading) |
| Wirkleistung Grundgenauigkeit | ±(1.0% of reading) |
| Wirkleistungsenergie | 0.0kWh to 9.999MWH |
| Weitere Details | |
|---|---|
| Abmessungen | 8.86 × 4.92 × 2.52" (225 × 125 × 64mm) |
| Garantie | 2 years |
| Gewicht | 2.2lbs (1010g) |
| Sicherheitskategorie | CATIII - 600V |
| Stromversorgung | 8 × AA (1.5V) batteries |
| Zertifizierungen | CE, UL |
