Discontinued

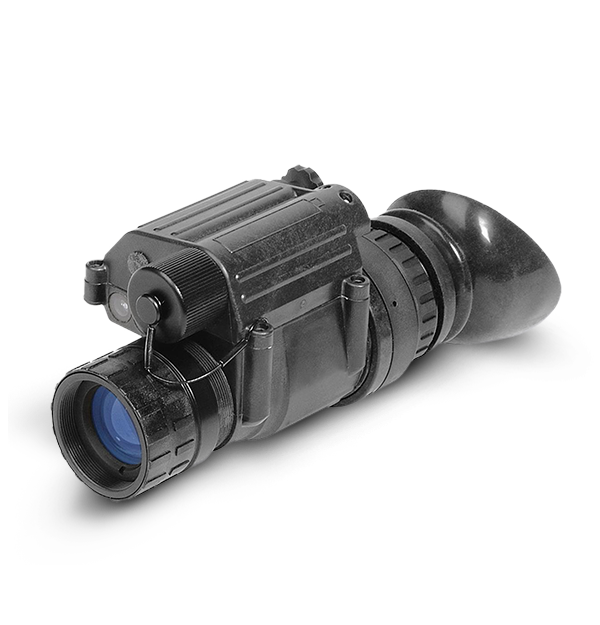

FLIR PVS-14

40° Night Vision Monocular

Built on the framework of United States Military-commissioned AN/PVS-14 night vision units, the FLIR PVS-14 offers enhanced tactical awareness in a classic, battle-tested design. Flexible mounting options and adjustable gain control in a rugged, compact housing showcase why the PVS-14 remains a favorite among military and law enforcement professionals.

The Battle-Tested Standard in Night Vision

The AN/PVS-14 multi-purpose monocular has long been a staple for US military and law enforcement professionals.

Onboard manual gain control and IR illuminator maintain tactical awareness in minimal light conditions.

Head and helmet mounting capability allow simple hands-free use.

Technische Daten

Highlighted
Betriebstemperatur	-51°C to +49°C (-59°F to +120°F)

Sensor und optische Daten
Abstand zur Augenlinse [mm]	-
Auflösung	64-72 lp/mm
Austrittspupillendurchmesser [mm]	-
Automatische Helligkeitsregelung	Yes
Diopter einstellen	-6 to +4 dpt
Fokusbereich	0.25 m to Infinity
Helles Licht Cut_off	Yes
IIT-Generation	Gen 3 Alpha (High Performance) MG
Infrarotbeleuchtung	Yes (built-in with flood lens)
Objektivsystem	F/1.2; 26 mm
Photokathodentyp	GaAs
Sichtfeld	40°
Vergrößerung	1x

Umgebungsfaktoren und Zulassungen
Betriebstemperatur	-51°C to +49°C (-59°F to +120°F)
Lagertemperatur	-51°C to +85°C (-22°F to +185°F)

Stromversorgung
Akkulaufzeit	Up to 50 hours
Automatische Abschaltung	Yes
Batteriewarnanzeige	Yes (In FOV)
Netzteil	One AA battery

Dateispeicherung und Datenübertragung
Fernsteuerung	-

Benutzeroberfläche/-funktionen
Fadenkreuzfarbe	-
IR-Anzeige	Yes (In FOV)
Manuelle Kontrastabstimmung	Yes

Systemübersicht
Fadenkreuztyp	-
Garantie	2 Years
Höhe Scope-Achse über Schiene	-
Windage_Elevation Anpassung	-

Physikalische Daten
Abmessungen (L x B x H)	158 x 51 x 60 mm (6.2 x 2,0 x 2.4 in)
Produktgewicht	0.35 kg (0.77 lbs)
Stativbefestigung	-

Zubehör
Mitgeliefertes Zubehör	Brow Pads, Helmet/Head Mount Adapter, Head Mount Assembly, Instruction Manual with Warranty Card, Soft carrying Case, Shoulder Strap, Demist Shields, Packing Box, Tethering Cord, 1x AA Batteries, Day Light Filter, Lens Tissue, Sacrificial Window
Optionales Zubehör	Weapons Mount #109 (PVS14/6015), XLR-IR Afocal Doubler - Doubles the distance of XLR-IR850 IR beam, 5x Afocal Magnifier Lens #100, 3x Afocal Magnifier Lens #99, PASGT Helmet Mount Assembly USA #108, ARFS3 - Advanced Range Finding Stadia for 3x Afocal Lens, ARFS5 - Advanced Range Finding Stadia for 5x Afocal Lens, AIM-PRO-L Kit: AIM-PRO-L with Adapter Ring #62, XLR-IR850 Detachable X-Long Range Infrared Illuminator, AIM-PRO Kit: AIM-PRO with Adapter Ring #62, 5x Afocal Lens with Adapter #24/#25, 3x Afocal Lens #22 with Adapter #24/#25, MICH Helmet Mount Assembly USA #107, Extended Rail Adapter #85, Mil-Standard Hard Shipping/Storage Case #101

Zubehör

Mitgeliefertes Zubehör

Brow Pads, Helmet/Head Mount Adapter, Head Mount Assembly, Instruction Manual with Warranty Card, Soft carrying Case, Shoulder Strap, Demist Shields, Packing Box, Tethering Cord, 1x AA Batteries, Day Light Filter, Lens Tissue, Sacrificial Window

Optionales Zubehör

Weapons Mount #109 (PVS14/6015), XLR-IR Afocal Doubler - Doubles the distance of XLR-IR850 IR beam, 5x Afocal Magnifier Lens #100, 3x Afocal Magnifier Lens #99, PASGT Helmet Mount Assembly USA #108, ARFS3 - Advanced Range Finding Stadia for 3x Afocal Lens, ARFS5 - Advanced Range Finding Stadia for 5x Afocal Lens, AIM-PRO-L Kit: AIM-PRO-L with Adapter Ring #62, XLR-IR850 Detachable X-Long Range Infrared Illuminator, AIM-PRO Kit: AIM-PRO with Adapter Ring #62, 5x Afocal Lens with Adapter #24/#25, 3x Afocal Lens #22 with Adapter #24/#25, MICH Helmet Mount Assembly USA #107, Extended Rail Adapter #85, Mil-Standard Hard Shipping/Storage Case #101
