Abgekündigt

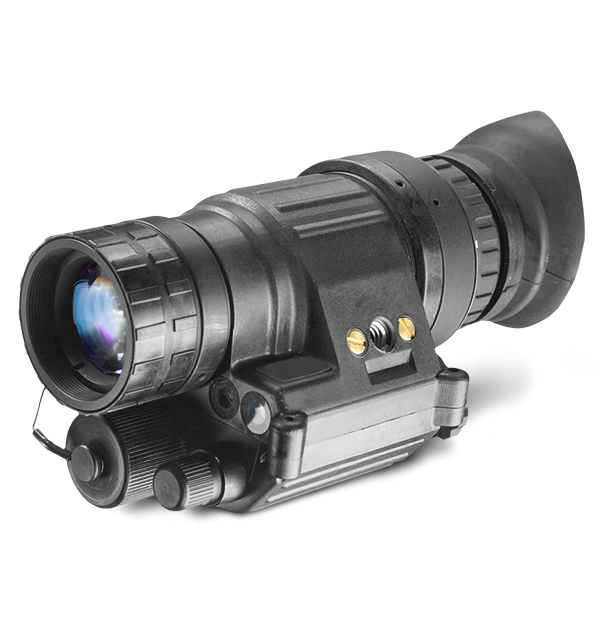

FLIR PVS-14-51

51° Night Vision Monocular

The FLIR PVS-14-51 single-tube night vision system brings a wide 51-degree field of view to the tough, military-trusted AN/PVS-14 housing. Head and helmet mounting promote hands-free operation while a maximized field of view enhances awareness and minimizes necessary movement. Built-in IR illuminator allows clear, covert vision in complete darkness.

Wide-Angle Advantage Meets Battle-Tested Design

51-degree lens provides a 28% increase in scene size over comparable 40-degree models.

Compact AN/PVS-14 housing is a trusted, longstanding night vision favorite of US military and law enforcement professionals.

Maintain a tactical advantage in the toughest lighting conditions with built-in IR illuminator and manual gain control.

Technische Daten

Markierter
Betriebstemperatur	-40°C to +50°C (-40°F to +122°F)

Sensor und optische Daten
Abstand zur Augenlinse [mm]	-
Auflösung	-
Austrittspupillendurchmesser [mm]	-
Automatische Helligkeitsregelung	No
Diopter einstellen	-6 to +4 dpt
Fokusbereich	0.25 m to Infinity
Helles Licht Cut_off	Yes
IIT-Generation	Gen 3 Alpha (High Performance) MG
Infrarotbeleuchtung	Yes (built-in with pivotal flood lens)
Objektivsystem	F/1.26; 19mm
Photokathodentyp	GaAs
Sichtfeld	51°
Vergrößerung	1x standard (3x, 5x optional)

Umgebungsfaktoren und Zulassungen
Betriebstemperatur	-40°C to +50°C (-40°F to +122°F)
Lagertemperatur	-50°C to +50°C (-58°F to +122°F)

Stromversorgung
Akkulaufzeit	Up to 50 hours
Automatische Abschaltung	Yes
Batteriewarnanzeige	Yes (In FOV)
Netzteil	One AA battery

Dateispeicherung und Datenübertragung
Fernsteuerung	-

Benutzeroberfläche/-funktionen
Fadenkreuzfarbe	-
IR-Anzeige	Yes (In FOV)
Manuelle Kontrastabstimmung	Yes

Systemübersicht
Fadenkreuztyp	-
Garantie	2 Years
Höhe Scope-Achse über Schiene	-
Windage_Elevation Anpassung	-

Physikalische Daten
Abmessungen (L x B x H)	158 × 51 × 60 mm (6.2 × 2.0 × 2.4 in)
Produktgewicht	0.32 kg (0.7 lbs)
Stativbefestigung	-

Zubehör
Mitgeliefertes Zubehör	Packing Box, Soft Carrying Case, Lens Tissue, Instruction Manual with Warranty Card, Day Light Filter, Sacrificial Window, Demist Shields, Shoulder Strap, Tethering Cord, Helmet/Head Mount Adapter, Head Mount Assembly, Brow Pads.
Optionales Zubehör	MICH Helmet Mount Assembly USA #107 (PVS-7, PVS-14), PASGT Helmet Mount Assembly USA #108 (PVS-7, PVS-14), Weapons Mount #109 (PVS14/6015), Extended Rail Adapter #85, ARFS3 - Advanced Range Finding Stadia for 3x Afocal Lens, ARFS5 - Advanced Range Finding Stadia for 5x Afocal Lens, 3x Afocal Magnifier Lens #99, 5x Afocal Magnifier Lens #100, 3x Afocal Lens #22 with Adapter #24/#25 (PVS-7, PVS-14), 5x Afocal Lens with Adapter #24/#25 (PVS-7, PVS-14), IR850XLR Afocal Doubler, IR850-XLR Detachable LED Extra Long Range Infrared Illuminator, Mil-Standard Hard Shipping/Storage Case #101

Zubehör

Mitgeliefertes Zubehör

Packing Box, Soft Carrying Case, Lens Tissue, Instruction Manual with Warranty Card, Day Light Filter, Sacrificial Window, Demist Shields, Shoulder Strap, Tethering Cord, Helmet/Head Mount Adapter, Head Mount Assembly, Brow Pads.

Optionales Zubehör

MICH Helmet Mount Assembly USA #107 (PVS-7, PVS-14), PASGT Helmet Mount Assembly USA #108 (PVS-7, PVS-14), Weapons Mount #109 (PVS14/6015), Extended Rail Adapter #85, ARFS3 - Advanced Range Finding Stadia for 3x Afocal Lens, ARFS5 - Advanced Range Finding Stadia for 5x Afocal Lens, 3x Afocal Magnifier Lens #99, 5x Afocal Magnifier Lens #100, 3x Afocal Lens #22 with Adapter #24/#25 (PVS-7, PVS-14), 5x Afocal Lens with Adapter #24/#25 (PVS-7, PVS-14), IR850XLR Afocal Doubler, IR850-XLR Detachable LED Extra Long Range Infrared Illuminator, Mil-Standard Hard Shipping/Storage Case #101
