Discontinued

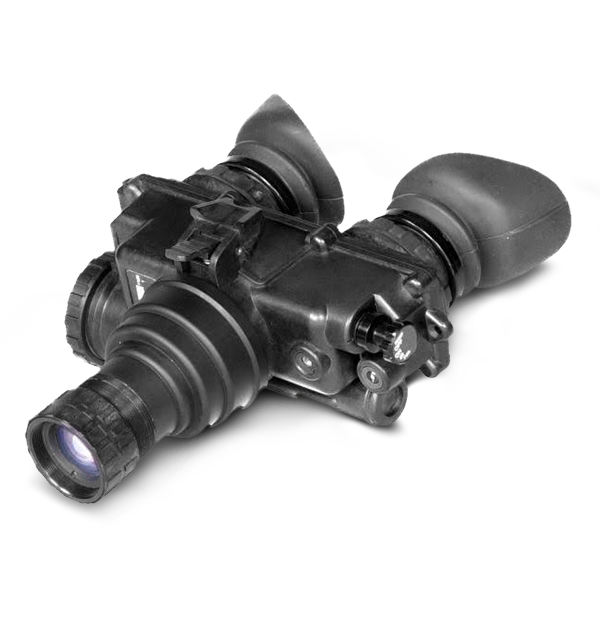

FLIR PVS-7

Night Vision Goggles

Built on the framework of United States Military-commissioned AN/PVS-7 night vision goggles, the FLIR PVS-7 offers enhanced awareness in a classic, battle-tested design. Automatic brightness control, built-in IR illuminator, and an excessive-light cutoff help maintain a tactical advantage in any lighting condition. Flexible mounting options and a rugged composite housing make the PVS-7 a night vision favorite among military and law enforcement professionals.

Dynamic Night Vision in a Classic Design

Head or helmet mounting support hands-free use while flip up/power down display controls allow covert sight adjustments.

Automatic brightness control, onboard IR illuminator, and rugged housing maintain superior vision in the toughest conditions.

Available 3x and 5x magnification lenses convert mounted goggle to handheld long-range night vision viewer.

Technische Daten

Sensor und optische Daten
Abstand zur Augenlinse [mm]	-
Auflösung	64-72 lp/mm
Austrittspupillendurchmesser [mm]	-
Automatische Helligkeitsregelung	Yes
Diopter einstellen	-6 to +2 dpt
Fokusbereich	0.25 m to Infinity
Helles Licht Cut_off	Yes
IIT-Generation	Gen 3 High Performance IIT PINNACLE
Infrarotbeleuchtung	Yes (built-in , with detachable flood lens)
Objektivsystem	F/1.2; 26 mm
Photokathodentyp	GaAs
Sichtfeld	40°
Vergrößerung	1x

Umgebungsfaktoren und Zulassungen
Betriebstemperatur	-40°C to +50°C (-40°F to +122°F)
Lagertemperatur	-50°C to +70°C (-58°F to +158°F)

Stromversorgung
Akkulaufzeit	Up to 40 hours
Automatische Abschaltung	Yes
Batteriewarnanzeige	Yes (In FOV)
Netzteil	2x AA 1.5V or 1x BA-5567/U Lithium (3V)

Dateispeicherung und Datenübertragung
Fernsteuerung	-

Benutzeroberfläche/-funktionen
Fadenkreuzfarbe	-
IR-Anzeige	Yes (In FOV)
Manuelle Kontrastabstimmung	No

Systemübersicht
Fadenkreuztyp	-
Garantie	2 Years
Höhe Scope-Achse über Schiene	-
Windage_Elevation Anpassung	-

Physikalische Daten
Abmessungen (L x B x H)	200 x 152 x 90 mm (7.9 x 6.0 x 3.5 in)
Produktgewicht	0.68 kg (1.5 lbs)
Stativbefestigung	-

Zubehör
Mitgeliefertes Zubehör	Packing Box, 2x AA-batteries, Neck Lenyard, Instruction Manual with Warranty Card, Soft carrying Case, Head Mount Assembly, Brow Pads, Demist Shields, Sacrificial Window, Shoulder Strap, Lens Tissue
Optionales Zubehör	5x Afocal Magnifier Lens #100, 3x Afocal Magnifier Lens #99, PASGT Helmet Mount Assembly USA #108, MICH Helmet Mount Assembly USA #107, XLR-IR Afocal Doubler - Doubles the distance of XLR-IR850 IR beam, ARFS3 - Advanced Range Finding Stadia for 3x Afocal Lens, XLR-IR850 Detachable X-Long Range Infrared Illuminator, 5x Afocal Lens with Adapter #24/#25, 3x Afocal Lens #22 with Adapter #24/#25, ARFS5 - Advanced Range Finding Stadia for 5x Afocal Lens, Mil-Standard Hard Shipping/Storage Case #101

Zubehör

Mitgeliefertes Zubehör

Packing Box, 2x AA-batteries, Neck Lenyard, Instruction Manual with Warranty Card, Soft carrying Case, Head Mount Assembly, Brow Pads, Demist Shields, Sacrificial Window, Shoulder Strap, Lens Tissue

Optionales Zubehör

5x Afocal Magnifier Lens #100, 3x Afocal Magnifier Lens #99, PASGT Helmet Mount Assembly USA #108, MICH Helmet Mount Assembly USA #107, XLR-IR Afocal Doubler - Doubles the distance of XLR-IR850 IR beam, ARFS3 - Advanced Range Finding Stadia for 3x Afocal Lens, XLR-IR850 Detachable X-Long Range Infrared Illuminator, 5x Afocal Lens with Adapter #24/#25, 3x Afocal Lens #22 with Adapter #24/#25, ARFS5 - Advanced Range Finding Stadia for 5x Afocal Lens, Mil-Standard Hard Shipping/Storage Case #101
