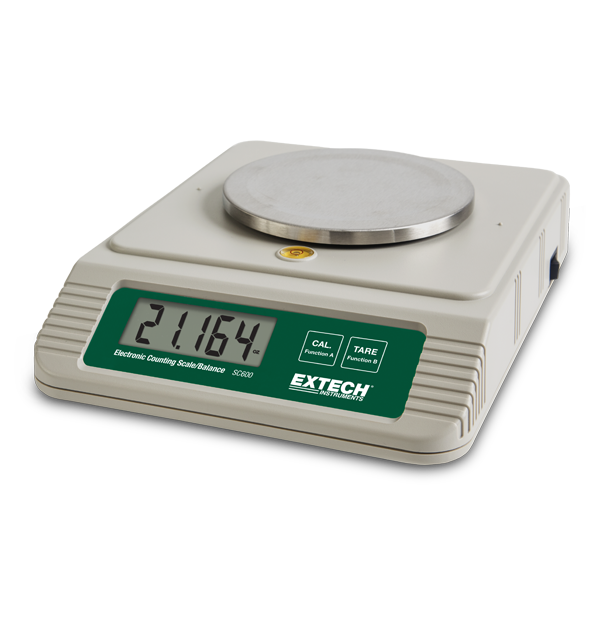

Extech SC600
Electronic Counting Scale/Balance
The Extech SC600 is an Electronic Counting Scale/Balance intended for professional electronic counting and weighing with a load cell transducer for high accuracy and performance. The wide capacity measures single small electronic components weighing up to 0.1g (0.005 oz), or in batches up to 600 g (21.164 oz). Complete with 6 AA batteries, metal platform, and Universal AC adaptor with multiplugs.
Technische Daten
| Allgemeine technische Daten | |
|---|---|
| Abtastrate | Approx. 1 measurement per second |
| Gewichtsbereich | 0.10 to 600g |
| Gewichtsbereich Grundgenauigkeit | ±(0.05% + 0.04g) |
| Gewichtsbereich Max. Auflösung | 0.01g |
| Messumformer | Load cell |
| PC-Schnittstelle | RS232 port |
| Tariersteuerung | 600g maximum (approx.) |
| Weitere Details | |
|---|---|
| Abmessungen | 9.8 × 7.5 × 2.8" (250 × 190 × 70mm), Platform diameter: 4.7" (120mm) |
| Display | 5-digit segment LCD |
| Garantie | 2 years |
| Gewicht | 2.2 lbs (1 kg) |
| Stromversorgung | 6 × AA (1.5V) batteries, AC/DC power adaptor (9V/300mA) with multi-plugs |
| Zertifizierungen | CE |
