Abgekündigt

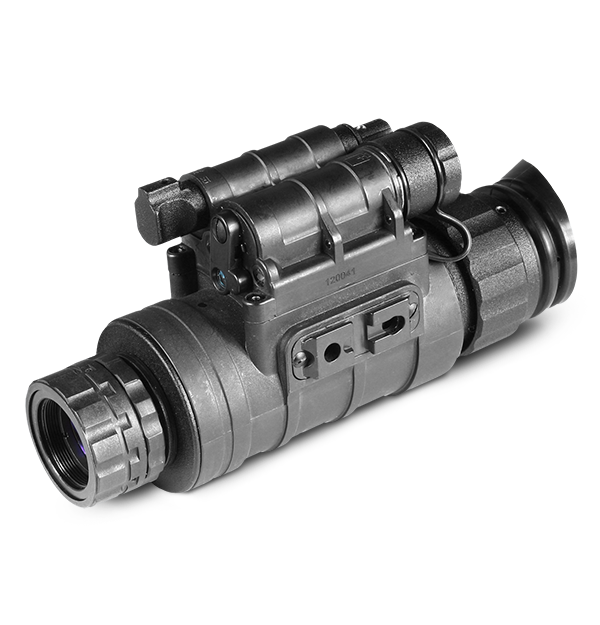

FLIR Sirius
Night Vision Monocular
The FLIR Sirius night vision monocular offers excellent Gen2+ performance and numerous high-tech features. With manual gain control, built-in IR illuminator, and bright-light shutoff, the Sirius serves the needs of both recreational hunters and law enforcement professionals. Flexible mounting options and external accessories increase device capability while a tough composite housing stands up to wear and tear.
Affordable Full-Featured Performance
Head, helmet, and weapon mounting options improve mission capability.
Manual gain control, onboard IR illuminator, and bright light shutdown enhance vision and protect intensifier tubes.
Available magnifying lenses and extra long-range IR illuminator enhance image clarity over long distances.
Technische Daten
| Markierter | |
|---|---|
| Betriebstemperatur | -40°C to +50°C (-40°F to +122°F) |
| Sensor und optische Daten | |
|---|---|
| Abstand zur Augenlinse [mm] | 21.5 mm |
| Auflösung | 45-51 lp/mm |
| Austrittspupillendurchmesser [mm] | 10 mm |
| Automatische Helligkeitsregelung | Yes |
| Diopter einstellen | ±5 diopter |
| Fokusbereich | 0.25 m to Infinity |
| Helles Licht Cut_off | Yes |
| IIT-Generation | Gen 2+ SD (Standard Definition) MG |
| Infrarotbeleuchtung | Yes (built-in with pivotal flood lens) |
| Objektivsystem | F/1.2; 24 mm |
| Photokathodentyp | Multi-Alkali |
| Sichtfeld | 40° |
| Vergrößerung | 1x standard (3x, 5x optional) |
| Umgebungsfaktoren und Zulassungen | |
|---|---|
| Betriebstemperatur | -40°C to +50°C (-40°F to +122°F) |
| Lagertemperatur | -50°C to +70°C (-58°F to +158°F) |
| Stromversorgung | |
|---|---|
| Akkulaufzeit | Up to 60 hours |
| Automatische Abschaltung | Yes |
| Batteriewarnanzeige | Yes (In FOV) |
| Netzteil | CR123 Lithium 3V (1), or AA Alkaline 1.5V (1), or any AA or CR123 type rechargeable batteries with voltage from 1.2V to 3.7V (1) |
| Dateispeicherung und Datenübertragung | |
|---|---|
| Fernsteuerung | - |
| Benutzeroberfläche/-funktionen | |
|---|---|
| Fadenkreuzfarbe | - |
| IR-Anzeige | Yes (In FOV) |
| Manuelle Kontrastabstimmung | Yes |
| Systemübersicht | |
|---|---|
| Fadenkreuztyp | - |
| Garantie | 2 Years |
| Höhe Scope-Achse über Schiene | - |
| Windage_Elevation Anpassung | - |
| Physikalische Daten | |
|---|---|
| Abmessungen (L x B x H) | 182× 56 × 79 mm (7.2 × 2.2 × 3.1 in) |
| Produktgewicht | 0.46 kg (1.0 lbs) |
| Stativbefestigung | - |
| Zubehör | |
|---|---|
| Mitgeliefertes Zubehör | Instruction Manual with Warranty Card, Soft carrying Case, Packing Box, Battery, Battery adapter CR123A 3V / AA 1.5V, Lens Tissue |
| Optionales Zubehör | Swing Arm #172, AIM PRO - Advanced Integrated Mount Pro, PASGT Helmet Mount Assembly USA #108 with Adapter/Swing Arm #37, MICH Helmet Mount Assembly USA #107 with Adapter/Swing Arm #37, XLR-IR Afocal Doubler - Doubles the distance of XLR-IR850 IR beam, ARFS3 - Advanced Range Finding Stadia for 3x Afocal Lens, ARFS5 - Advanced Range Finding Stadia for 5x Afocal Lens, 7x Lens # 17, Helmet Mount #183 (Shroud), Tactical Goggle Kit - Wilcox L4 G24 and 3 Hole Shroud Crye Precision Nightcap and Swing Arm #172, 5x Afocal Lens with Adapter #23, 3x Afocal Lens Kit: Lens #22 with Adapter #23, XLR-IR850 Detachable X-Long Range Infrared Illuminator w/Dovetail to Weaver Transfer Piece #21, AIM Pro-L - Advanced Integrated Mount Pro, Mil-Standard Hard Shipping/Storage Case #101, Swing Arm #37, Goggle Kit #2, QRM - Quick Release Picatinny Mount Adapter #26/#142, Universal Camera Adapter #45, Extended Rail Adapter #85, Helmet Mount #4 |
