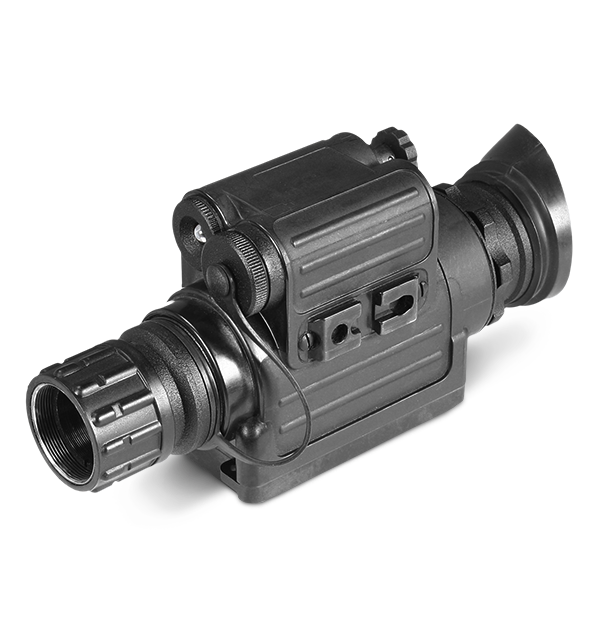

FLIR Spark

Night Vision Monocular

The FLIR Spark is a compact night vision monocular for enhancing awareness in minimal light conditions. A rugged composite housing and built-in IR illuminator allow Spark to capture sharp imagery in challenging weather conditions or complete darkness. Optional 3x and 5x optical zoom lenses and detachable high-power IR illuminator are available for long-range wildlife viewing.

Classic, Compact Night Vision

Rugged CORE intensifier tube and onboard IR illuminator allow continuous surveillance in tough conditions.

Head, helmet, and weapon mounting options allow simple handsfree operation.

Detachable optical magnification lenses and XLR IR illuminator boost long-range performance.

Technische Daten

Markierter
Betriebstemperatur	-40°C to +50°C (-40°F to +122°F)

Sensor und optische Daten
Abstand zur Augenlinse [mm]	20 mm
Auflösung	60-70 lp/mm
Austrittspupillendurchmesser [mm]	8 mm
Automatische Helligkeitsregelung	No
Diopter einstellen	±5 diopter
Fokusbereich	0.25 m to Infinity
Helles Licht Cut_off	No
IIT-Generation	CORE
Infrarotbeleuchtung	Yes
Objektivsystem	F/1.7; 35 mm
Photokathodentyp	N/A
Sichtfeld	35°
Vergrößerung	1x standard (3x, 5x optional)

Umgebungsfaktoren und Zulassungen
Betriebstemperatur	-40°C to +50°C (-40°F to +122°F)
Lagertemperatur	-50°C to +70°C (-58°F to +158°F)

Stromversorgung
Akkulaufzeit	Up to 40 hours
Automatische Abschaltung	No
Netzteil	CR123 Lithium 3V (1) or CR123 type rechargeable batteries with voltage 3.2V (1)

Dateispeicherung und Datenübertragung
Fernsteuerung	-

Benutzeroberfläche/-funktionen
Fadenkreuzfarbe	-
IR-Anzeige	Yes (Led)
Manuelle Kontrastabstimmung	No

Systemübersicht
Fadenkreuztyp	-
Garantie	2 Years
Höhe Scope-Achse über Schiene	-
Windage_Elevation Anpassung	-

Physikalische Daten
Abmessungen (L x B x H)	181× 49 × 82 mm (7.1 × 1.9 × 3.2 in)
Produktgewicht	0.37 kg (0.8 lbs)
Stativbefestigung	-

Zubehör
Mitgeliefertes Zubehör	Soft carrying Case, One Lithium Battery CR123A, Packing Box, Lens Tissue, Instruction Manual with Warranty Card
Optionales Zubehör	PASGT Helmet Mount Assembly USA #108 with Adapter/Swing Arm #37, Swing Arm #172, MICH Helmet Mount Assembly USA #107 with Adapter/Swing Arm #37, XLR-IR Afocal Doubler - Doubles the distance of XLR-IR850 IR beam, XLR-IR850 Detachable X-Long Range Infrared Illuminator w/Dovetail to Weaver Transfer Piece #21, AIM PRO - Advanced Integrated Mount Pro, ARFS3 - Advanced Range Finding Stadia for 3x Afocal Lens, Helmet Mount #170 (Shroud), 5x Afocal Lens with Adapter #23, 3x Afocal Lens Kit: Lens #22 with Adapter #23, ARFS5 - Advanced Range Finding Stadia for 5x Afocal Lens, AIM Pro-L - Advanced Integrated Mount Pro, Goggle Kit #1, Mil-Standard Hard Shipping/Storage Case #101, Swing Arm #37, Helmet Mount #3, Universal Camera Adapter #45, QRM - Quick Release Picatinny Mount Adapter #26/#142, Extended Rail Adapter #85

Zubehör

Mitgeliefertes Zubehör

Soft carrying Case, One Lithium Battery CR123A, Packing Box, Lens Tissue, Instruction Manual with Warranty Card

Optionales Zubehör

PASGT Helmet Mount Assembly USA #108 with Adapter/Swing Arm #37, Swing Arm #172, MICH Helmet Mount Assembly USA #107 with Adapter/Swing Arm #37, XLR-IR Afocal Doubler - Doubles the distance of XLR-IR850 IR beam, XLR-IR850 Detachable X-Long Range Infrared Illuminator w/Dovetail to Weaver Transfer Piece #21, AIM PRO - Advanced Integrated Mount Pro, ARFS3 - Advanced Range Finding Stadia for 3x Afocal Lens, Helmet Mount #170 (Shroud), 5x Afocal Lens with Adapter #23, 3x Afocal Lens Kit: Lens #22 with Adapter #23, ARFS5 - Advanced Range Finding Stadia for 5x Afocal Lens, AIM Pro-L - Advanced Integrated Mount Pro, Goggle Kit #1, Mil-Standard Hard Shipping/Storage Case #101, Swing Arm #37, Helmet Mount #3, Universal Camera Adapter #45, QRM - Quick Release Picatinny Mount Adapter #26/#142, Extended Rail Adapter #85
