FLIR T-MAIM
Multispectral Aiming/Illumination Module

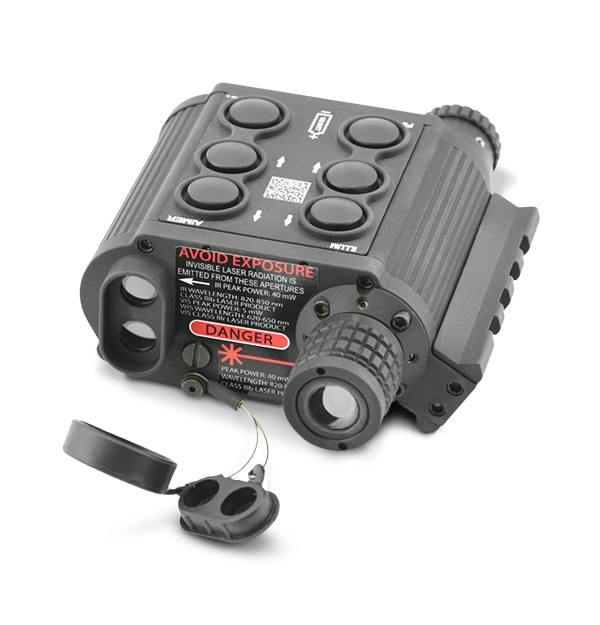

The FLIR T-MAIM is a multi-laser aiming system equipped with collimated visible and near-IR lasers. Built-in IR illuminator and near-IR aiming laser provide covert tactical precision when paired with night vision devices while manually-controlled pulse mode prevents confusion among multiple users. 256 discrete power intervals allow user-customization and included safety-mode tactical remote ensures appropriate laser intensity during training exercises.
Undeniably Powerful, Completely Customizable
Co-boresighted rapid target acquisition lasers ensure consistency when switching between visible-light and night vision.
Safety remote temporarily inhibits laser power during training while pulse mode allows multiple users to reliably identify their sight in crowded environments.
Built-In IR illuminator, flashlight mount, and rugged waterproof housing work with other equipment to provide the best tactical awareness in grueling conditions.
Technische Daten
| Sensor und optische Daten | |
|---|---|
| Betriebsabstand IT-Beleuchtung | >100 (low) / 2000 m (high) |
| Betriebsabstand IT-Punkt | >200 m (low) / 2000 m (high) |
| Betriebsabstand Roter Punkt | >25 m (in direct sunlight) |
| Divergenz IR-Beleuchtung | 1-108 mRad |
| Divergenz IR-Punkt | <0.5 mRad |
| Divergenz Roter Punkt | 0.8 mRad |
| Wellenlänge IR-Beleuchtung | 820-850 nm |
| Wellenlänge IR-Punkt | 820-850 nm |
| Wellenlänge Roter Punkt | 620-650 nm |
| Umgebungsfaktoren und Zulassungen | |
|---|---|
| Eintauchen | Waterproof 20 meters for one hour |
| Stromversorgung | |
|---|---|
| Abmessungen Ausgangsleistung IR-Beleuchtung | 500 µW (low) / 25 mW (high) 40 mW (Peak) |
| Abmessungen Ausgangsleistung IR-Punkt | 100 µW (low) / 25 mW (high) 40mW (Peak) |
| Abmessungen Ausgangsleistung Roter Punkt | 4 mW (visible) / 5 mW (Peak) |
| Akkulaufzeit | >10 hours in near-IR Aim Mode |
| Netzteil | One CR123A 3.0V DC Lithium Battery |
| Systemübersicht | |
|---|---|
| Garantie | 2 Years |
| Waffenmontagetyp | MIL-STD-1913 |
| Physikalische Daten | |
|---|---|
| Abmessungen (L x B x H) | 105 × 81 × 43 mm (4.2 × 3.2 × 1.7 in) |
| Produktgewicht | 0.29 kg (0.63 lbs) |
| Zubehör | |
|---|---|
| Mitgeliefertes Zubehör | Packing Box, Soft Carrying Case, One Lithium Battery CR123ALens Tissue, Instruction Manual with Warranty Card, Remote Switch Assembly, SAFETY INTERLOCK (Class 1) - BLUE, Remote Switch Assembly, Tactical Full Access - BLACK |
| Optionales Zubehör | - |
