Ladegerät und Netzteil für Kameras der Serien Si1, Si2 und Si2x-Series (T912186)

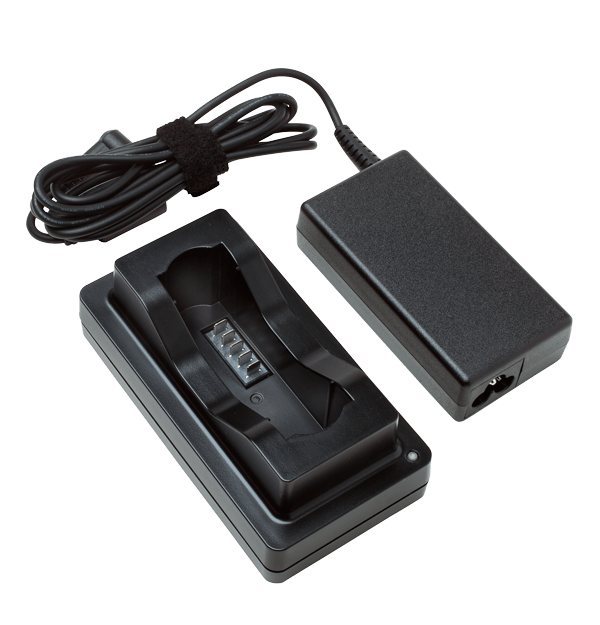

Batterieladegerät und mitgeliefertes Netzteil für akustische Kameras Si1, Si2 und Si2x

Batterieladegerät und mitgeliefertes Netzteil für akustische Bildgebungskameras Flir Si1, Si2 und Si2x

Technische Daten

Stromversorgung
Stromversorgung Ladegerät:

Eingang:
Spannungsbereich: 19–26 V
Strom: Max. 2,80 A
Leistung: 50 W

Ausgang:
Spannungsbereich: 0–17,4 V
Strombereich: 0–4,80 A
Leistung: Max. 50 W

Netzteil:

Eingang:
Spannungsbereich: 100–240 VAC ± 10 %
Eingangsstrom: Max. 1,70 A bei 100 V
AC-Eingang: IEC 320 C6 AC-Eingang

Ausgang:
Spannung: 19 V ± 5 %
Strom: 3,40 A
Leistung: Max. 65 W
Umgebungsfaktoren und Zertifizierungen
Betriebstemperaturbereich Ladegerät: 0 °C bis 40 °C
Netzteil: 0 °C bis 40 °C
Lagertemperaturbereich Ladegerät: -10 °C bis 70 °C
Netzteil: -30 °C bis 80 °C
Zertifizierungen UL (USA), cUL (Kanada), FCC, PSE, CE, GS, SAA, KC, CCC
Allgemeine Angaben
Abmessungen (L × B × H) Ladegerät: 120 mm × 64 mm × 43 mm
Netzteil: 95 mm × 50 mm × 25 mm, ohne Kabel und Anschlüsse
Ausgangskabel: 1600 mm ±50 mm
Gewicht Ladegerät: 0,110 kg
Netzteil: 0,270 kg ohne Eingangskabel
