Abgekündigt

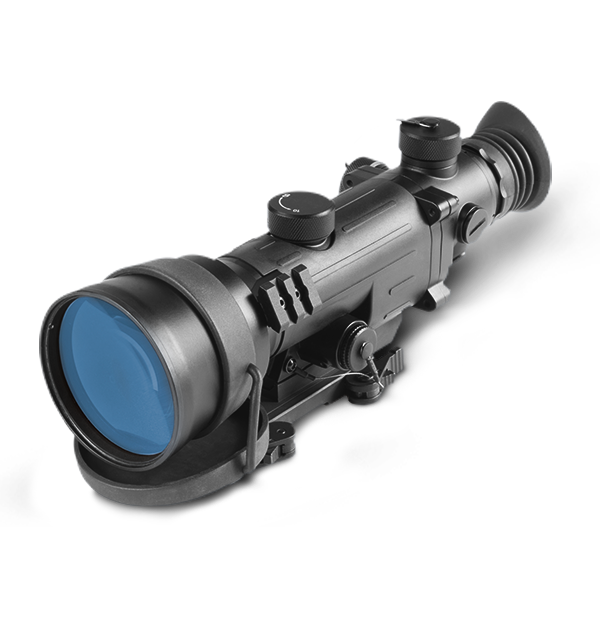

FLIR Vampire 3x
Night Vision Riflescope
The FLIR Vampire 3x is a CORE intensifier tube-based night vision riflescope designed for precise shot placement in minimal light conditions. A solid aluminum housing protects key electrical components from severe weather and shot recoil while an included extra long-range IR illuminator improves downrange image quality. An onboard tactical rail makes mounting additional lasers or illuminators simple.
Pinpointed Tactical Night Vision
Durable CORE intensifier tube and included XLR IR illuminator offer clear vision in minimal lighting.
Dust- and water-resistant solid aluminum housing withstands grueling environments and shot recoil.
Built-in tactical rail allows quick installation of detachable lasers and illuminators.
Technische Daten
| Sensor und optische Daten | |
|---|---|
| Abstand zur Augenlinse [mm] | - |
| Auflösung | 60-70 lp/mm |
| Austrittspupillendurchmesser [mm] | - |
| Automatische Helligkeitsregelung | No |
| Diopter einstellen | ±4 diopter |
| Fokusbereich | 10 m to Infinity |
| Helles Licht Cut_off | No |
| IIT-Generation | CORE |
| Infrarotbeleuchtung | Detachable Long Range IR |
| Objektivsystem | F/1.5; 108 mm |
| Photokathodentyp | N/A |
| Sichtfeld | 10.5° |
| Vergrößerung | 3x |
| Umgebungsfaktoren und Zulassungen | |
|---|---|
| Betriebstemperatur | -51°C to +45°C (-59°F to +113°F) |
| Lagertemperatur | -55°C to +70°C (-67°F to+158°F) |
| Stromversorgung | |
|---|---|
| Akkulaufzeit | Up to 40 hours |
| Automatische Abschaltung | No |
| Batteriewarnanzeige | Yes |
| Netzteil | CR123 Lithium 3V (1) or CR123 type rechargeable batteries with voltage 3.2V (1) |
| Dateispeicherung und Datenübertragung | |
|---|---|
| Fernsteuerung | No |
| Benutzeroberfläche/-funktionen | |
|---|---|
| Fadenkreuzfarbe | Red on Green |
| IR-Anzeige | No |
| Manuelle Kontrastabstimmung | No |
| Systemübersicht | |
|---|---|
| Fadenkreuztyp | Crosshair |
| Garantie | 2 Years |
| Höhe Scope-Achse über Schiene | - |
| Windage_Elevation Anpassung | 1/2 MOA |
| Physikalische Daten | |
|---|---|
| Abmessungen (L x B x H) | 318 x 87 x 95 mm (12.5 x 3.4 x 3.7 in) |
| Produktgewicht | 1.36 kg (3 lbs) |
| Stativbefestigung | - |
| Zubehör | |
|---|---|
| Mitgeliefertes Zubehör | XLR-IR850 Detachable X-Long Range Infrared Illuminator, Packing Box, One Lithium Battery CR123A, Instruction Manual with Warranty Card, Soft carrying Case, Lens Tissue |
| Optionales Zubehör | XLR-IR Afocal Doubler - Doubles the distance of XLR-IR850 IR beam, Mil-Standard Hard Shipping/Storage Case #101, Extended Rail Adapter #85 |
