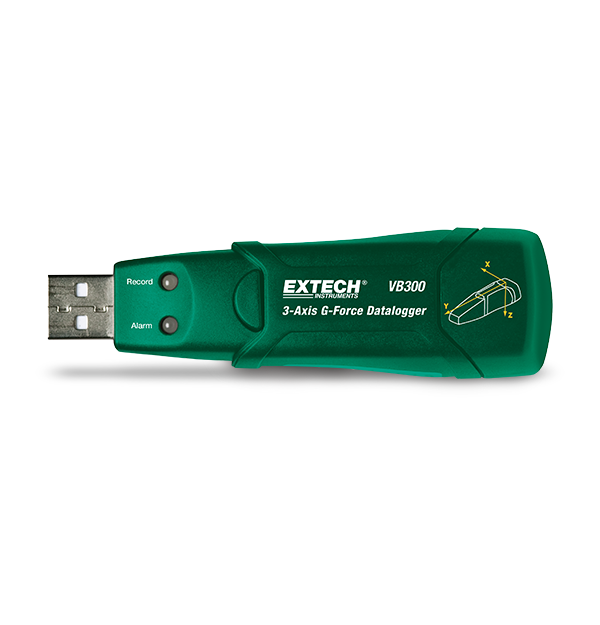

Extech VB300
3-Axis G-Force USB Datalogger
The VB300 is a G-Force datalogger which records and times 3-axis shock and vibration (acceleration) readings over its ±18g measurement range. This device will record 3-axis g-force and related peaks to provide a history of shock and vibration conditions. Complete with Magnetized/Bolt-on Mounting Base, 3.6V Lithium battery and Windows compatible analysis software.
Technische Daten
| Allgemeine technische Daten | |
|---|---|
| Abtastrate | 200Hz |
| Beschleunigung | ±18g |
| Beschleunigung Grundgenauigkeit | ±0.5g |
| Beschleunigung Max. Auflösung | 0.00625g |
| Datenerfassungsintervall | 500 ms to 24 hours (software) |
| Datenformat | Time stamped peak acceleration, average and peak vector sum |
| Frequenzbereich | 0 to 60Hz |
| Sensortyp | MEMS semiconductor |
| Speicher | 4Mbit Flash; 112028 Motion Detection samples per axis, or 168042 Normal samples |
| Weitere Details | |
|---|---|
| Abmessungen | 3.7 × 1.1 × 0.8" (95 × 28 × 21mm) |
| Garantie | 2 years |
| Gewicht | 1oz (20g) |
| Stromversorgung | 1 × 3.6V Lithium battery |
| Zertifizierungen | CE |
Resources & Support
Note: You must be logged in to download software or firmware. Login or create an account.
Software Download
Extech VB300 Software
User Manual
Extech VB300 Bedienungsanleitung
User Manual
Extech VB300 User Manual
Certification
Extech VB300 Declaration of Conformity
Datasheet
Extech VB300 Datasheet
Export Restrictions
The information contained in this page pertains to products that may be subject to the International Traffic in Arms Regulations (ITAR) (22 C.F.R. Sections 120-130) or the Export Administration Regulations (EAR) (15 C.F.R. Sections 730-774) depending upon specifications for the final product; jurisdiction and classification will be provided upon request.
