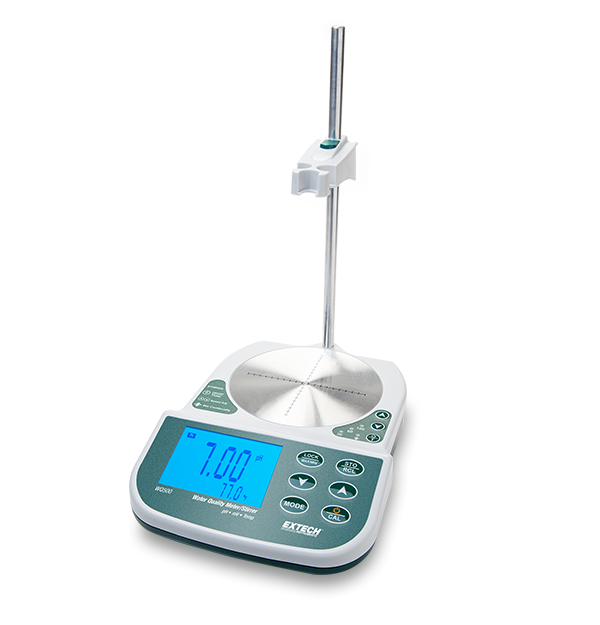

Extech WQ500
Benchtop Water Quality Meter/Stirrer
The Extech WQ500 is a 3 in 1 Benchtop Meter that measures pH, ORP, and temperature of liquids and semi-solids. The unit features a 30 min, 60 min, and 120 min timer or continuous stirring, plus 2 or 3 point pH calibration and automatic temperature compensation. This unit features a large backlit dual display and the ability to store and recall 150 readings. It can also capture readings directly to a PC via the built in USB interface. The WQ500 comes with pH glass electrode, temperature probe, pH calibration solutions (4 pH and 7 pH), plastic burette, polishing paper, electrode clamp and rod, software and USB cable, AC adapter, stirrer, and user manual.
Technische Daten
| Allgemeine technische Daten | |
|---|---|
| ORP | -1999 to + 1999mV |
| ORP Grundgenauigkeit | ±2mV |
| ORP Max. Auflösung | 0.1mV |
| pH | -2.00 to 16.00pH |
| pH Grundgenauigkeit | ±0.02pH |
| pH Max. Auflösung | 0.01pH |
| Temperatur (Kontakt) | 32 to 212°F (0 to 100°C) for pH |
| Temperatur (Kontakt) Grundgenauigkeit | ±1.8°F/1°C |
| Temperatur (Kontakt) Max. Auflösung | 0.1° |
| Weitere Details | |
|---|---|
| Abmessungen | 4 × 5.7 × 1.3" (103 × 145 × 32mm) |
| Garantie | 2 years |
| Gewicht | 1.5lbs (700g) |
| Stromversorgung | 100 to 240V AC adapter with US, EU, UK, and AU plugs |
| Zertifizierungen | CE |
Resources & Support
Note: You must be logged in to download software or firmware. Login or create an account.
Software Download
Extech WQ500 Software
User Manual
Extech WQ500 WQ510 WQ530 Bedienungsanleitung
User Manual
Extech WQ500 WQ510 WQ530 User Manual
Datasheet
Extech WQ500 Datasheet
Certification
Extech WQ500 Declaration of Conformity
Export Restrictions
The information contained in this page pertains to products that may be subject to the International Traffic in Arms Regulations (ITAR) (22 C.F.R. Sections 120-130) or the Export Administration Regulations (EAR) (15 C.F.R. Sections 730-774) depending upon specifications for the final product; jurisdiction and classification will be provided upon request.
