IP67 Housing for Axx Series (T912301)

Protective housing for Flir A40/A50/A70 models

Product view 1

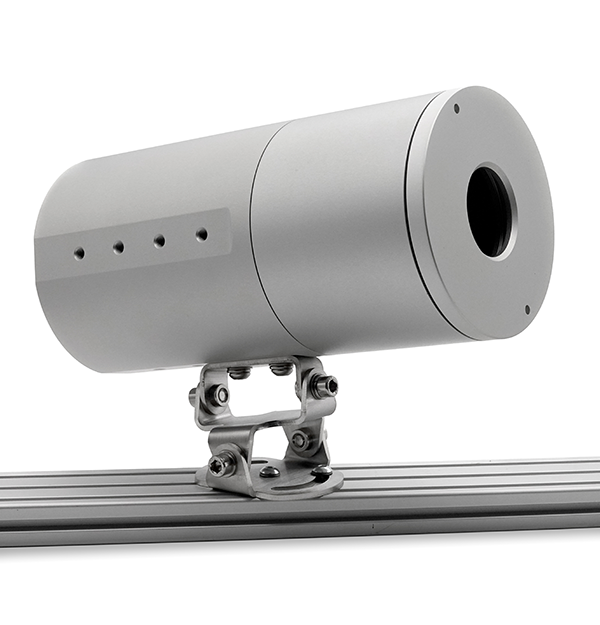

Product view 2

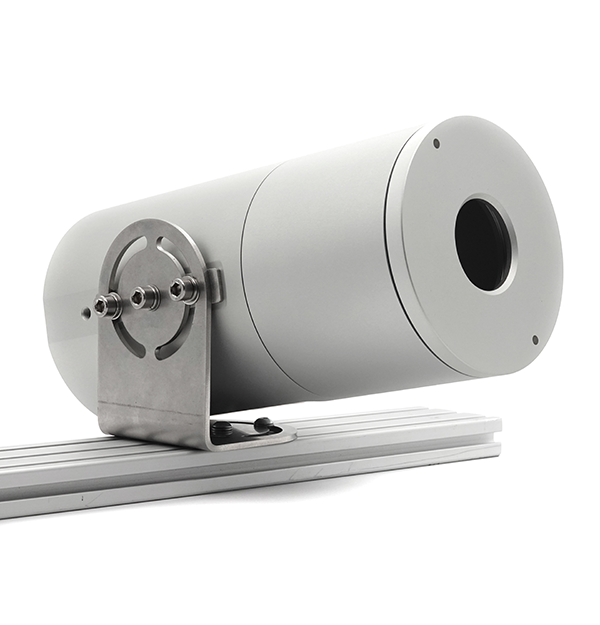

Product view 3

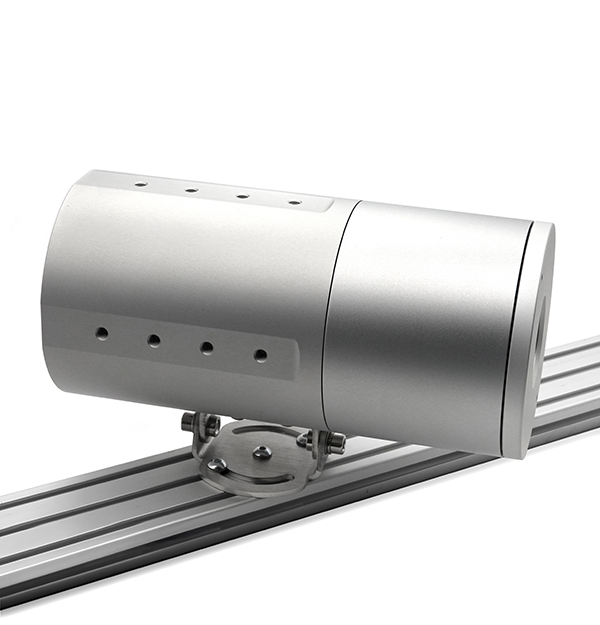

Product view 4

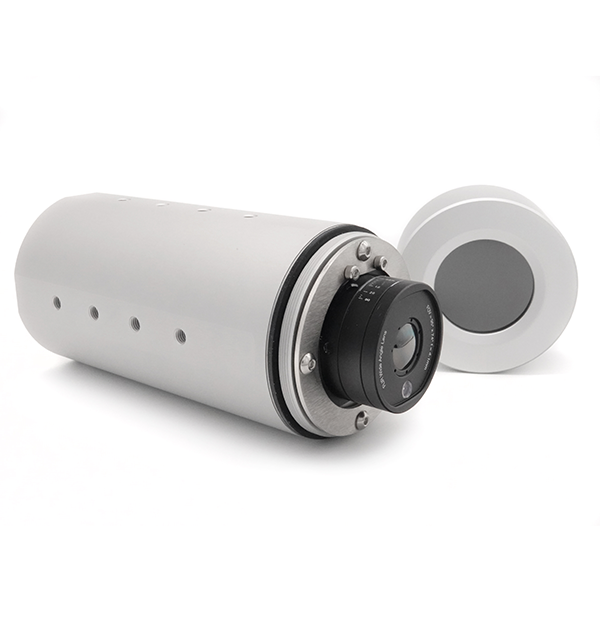

This aluminum, IP67-rated protective housing is specifically designed for Flir A40/A50/A70 thermal cameras. Camera accuracy within the protective housing remains within standard specifications due to Flir's proprietary radiometric formulas. Compatible accessories include cooling block/jacket, sun shield, and numerous mounting options.

Note: the chalcogenide window blocks the visual camera.

Equivalent optics, verified


88–90% transmission across the 7–14 µm band, with radiometric accuracy unchanged. Confirmed in testing against the germanium reference window.

Stable as temperatures climb


A low thermo-optic coefficient keeps optical properties consistent—the same material class automotive thermal cameras qualify from -40°C to 85°C (-40°F to 185°F).

Hardened like before


The same AR + DLC diamond-like-carbon coating as the previous window, meeting MIL-spec abrasion, humidity, and salt-spray standards.

Supply you can plan on


Moves the window off constrained germanium supply—protecting availability and the delivery dates behind your camera order.

Accessories

  1. Air Knife for Axx IP67 Housing [T912380]
  2. Sunshield for Axx Series Housings (T912378)
  3. Cooling Block for Axx Series Housing (T912376)
  4. Cooling Jacket for Axx Series Housing (T912374)
  5. IP67 Housing with Thermal + Visual Windows for Axx Series (T912493)
  6. Axx IP69k Housing (T912302)

Resources & Support

Datasheet

FLIR Axx IP67/IP69k Housing Datasheet

Download

Export Restrictions

The information contained in this page pertains to products that may be subject to the International Traffic in Arms Regulations (ITAR) (22 C.F.R. Sections 120-130) or the Export Administration Regulations (EAR) (15 C.F.R. Sections 730-774) depending upon specifications for the final product; jurisdiction and classification will be provided upon request.
