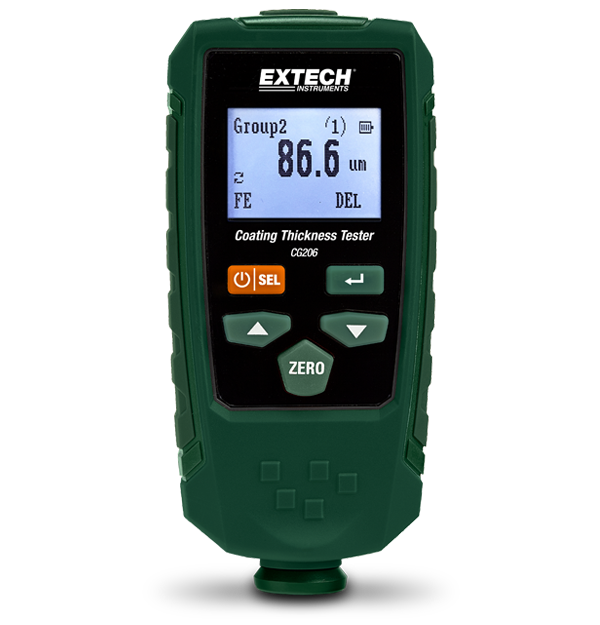

Dual technology provides automatic recognition for ferrous and non-ferrous substrates without having you guess the material. Allows for quick, one-handed operation, non- destructive measurement of the coating thickness on various surfaces.
Specifications
| General | |
|---|---|
| Coating Thickness (Ferrous) | 0 to 1350µm (0 to 53mils) |
| Coating Thickness (Ferrous) Basic Accuracy | ±2.5% |
| Coating Thickness (Ferrous) Max Resolution | 0.1µm (0.004mils) |
| Coating Thickness (Non-Ferrous) | 0 to 1350µm (0 to 53mils) |
| Coating Thickness (Non-Ferrous) Basic Accuracy | ±2.5% |
| Coating Thickness (Non-Ferrous) Max Resolution | 0.1µm (0.004mils) |
| Min Curvature Radius (Ferrous) | 1.5mm (59.06mils) |
| Min Curvature Radius (Non-Ferrous) | 3mm (118.1mils) |
| Min Diameter (Ferrous) | 7mm (275.6mils) |
| Min Diameter (Non-Ferrous) | 5mm (196.9mils) |
| Min Thickness (Ferrous) | 0.5mm (19.69mils) |
| Min Thickness (Non-Ferrous) | 0.3mm (11.81mils) |
| Working Principle (Ferrous) | Magnetic Induction |
| Working Principle (Non-Ferrous) | Eddy Current |
| Additional Details | |
|---|---|
| Certifications | CE |
| Dimensions | 4.5 × 2.1 × 1.1" (113.5 × 54 × 27mm) |
| Power | 2 × AAA (1.5V) batteries |
| Warranty | 2 years |
| Weight | 3.9oz (110g) |
Resources & Support
Note: You must be logged in to download software or firmware. Login or create an account.
Software Download
Extech Coating Thickness Tester Software
Certification
Extech CG206 Declaration of Conformity
User Manual
Extech CG206 User Manual
Datasheet
Extech CG206 Datasheet
