EV Charger Analyzer with Meterlink

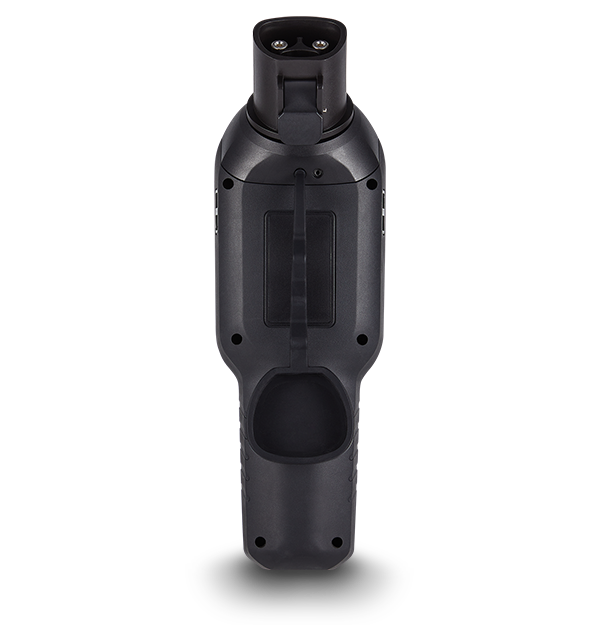

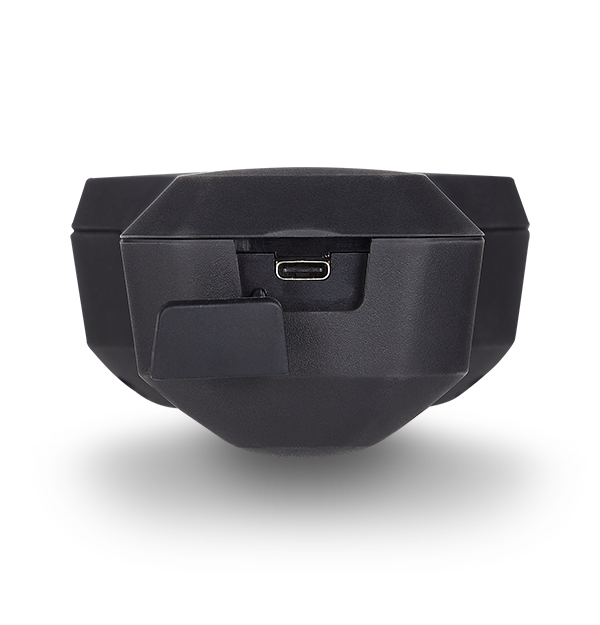

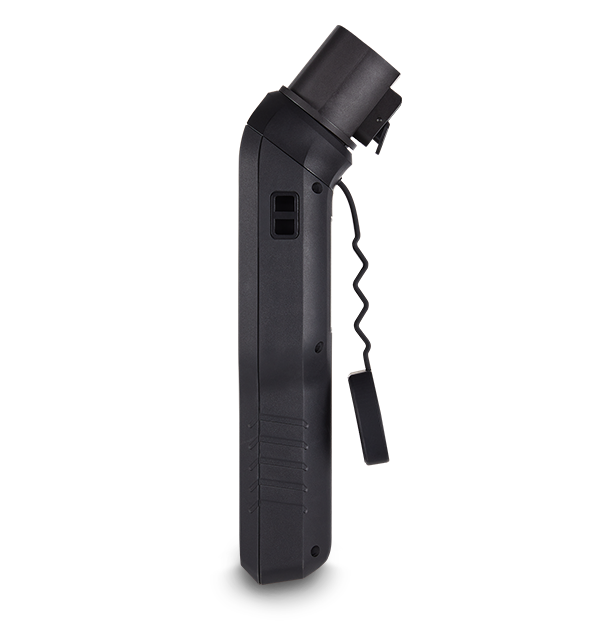

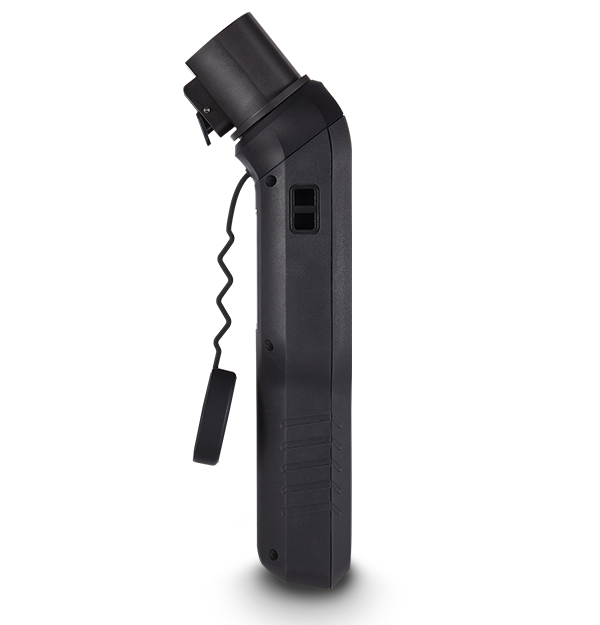

The Flir EV86-NACS is an all-in-one EV charger analyzer designed to simplify the safety and performance testing of AC EV charging stations in residential and commercial environments. Supporting both Level 1 and Level 2 chargers, it features an integrated NACS connector and a compact Type 1 adapter for broad compatibility. Automated test sequences, pre-test voltage verification, and clear pass/fail results help technicians work safely and efficiently, while Bluetooth Low Energy (BLE) connectivity pairs seamlessly with the Flir Meterlink® app for wireless report generation, data management, and easy sharing directly from a mobile device.
Specifications

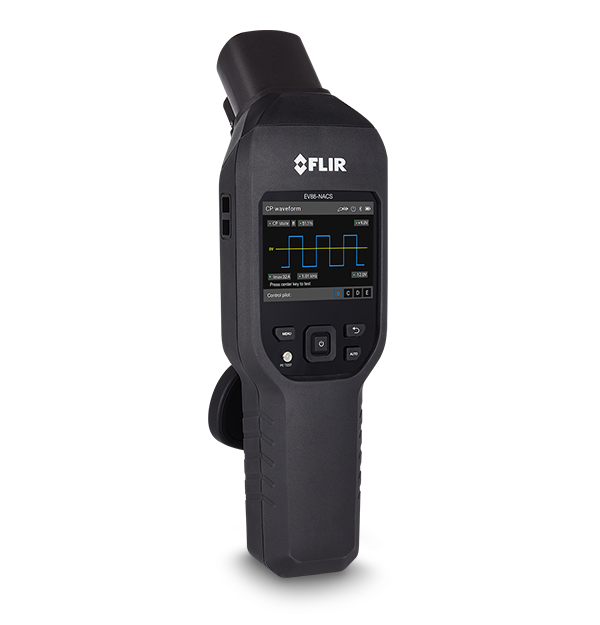

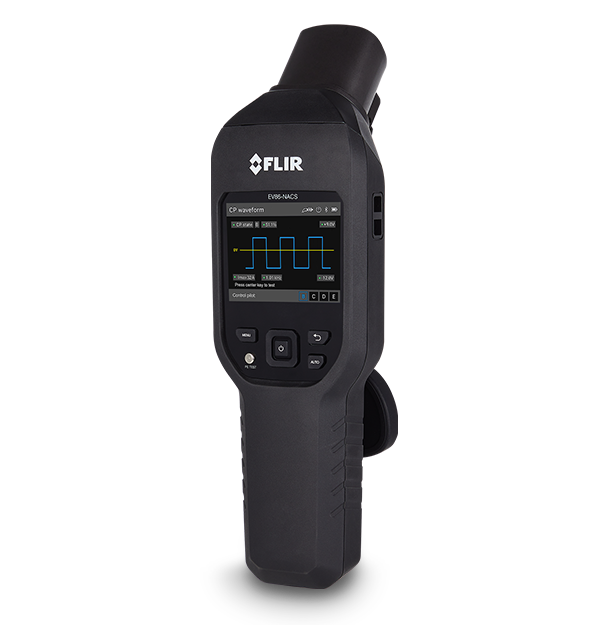

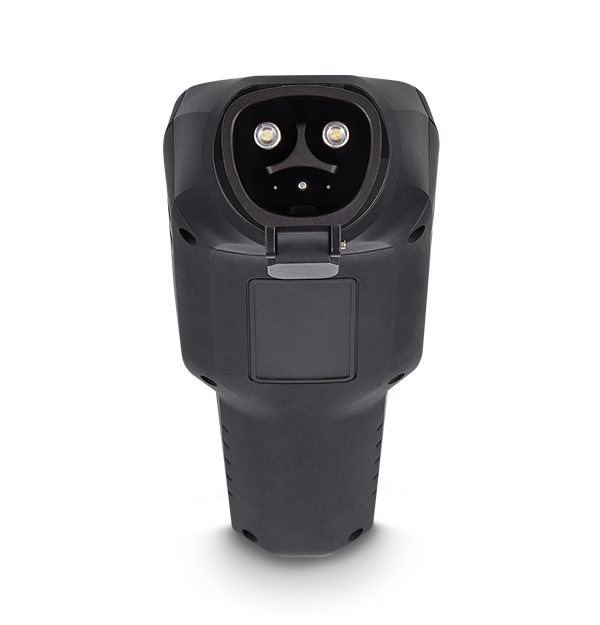

| Highlighted | |
|---|---|
| Display Size | 3.5 in. TFT-LCD |
| Connectivity | Bluetooth BLE with 10 m (32 ft) range |
| Safety Category | CAT II-300 V, IEC61010-1 |
| Imaging & Optical | |
|---|---|
| Display Size | 3.5 in. TFT-LCD |
| Measurement & Analysis | |
|---|---|
| Auto Testing Items | PE Pre-Test, EVSE Interface, CCID Test, and Loop Impedance in Settings Menu |
| Category Rating | CAT II-300 V |
| CP Error (E state) Simulation | Pass/Fault |
| CP State Simulation | CP State Simulation and Waveform A (Disconnected) , B (Connected) , C (Charging), D (Charging w/ ventilation), E (Error occurred), F (Error occurred) |
| EVSE interface | 1 Φ: 250 V max, 2 Φ: 300 V max, 50 / 60 Hz, max 10 A Main Voltage: Range 300 V / Accuracy: +/- 2.0% Frequency Range: 2 kHz / Accuracy: +/- 1 Hz Duty Cycle Range:100% / Accuracy: +/- 5 Digits |
| Loop Impedance | Range: 2.000 kΩ / Accuracy ±1.0% |
| PE Error Simulation | Pass/Fault |
| PE Pre-Test | Range: 50 V AC / DC / Accuracy ±2.0%, Pass / Fault (>50 V AC / DC between PE conductor and touch sensor) |
| PP State Simulation | Not connected, Connected, 13A, 20A, 32A, 63A |
| RCD/CCID Trip Test | CCID Trip Time Range: 21 mA AC, 5.59 s / Accuracy ±2.0%° Range: 6 mA AC, 5.59 s for <1.2 s / Accuracy ±1.0% CCID Ramping Current Range: 6 mA AC in 0.5 mA steps every 100 ms in 1.2 s , 20 mA AC in 1 mA steps every 100 ms in 2 s. / Accuracy ±2.0% |
| Voltage Phase Indication | L1, L2, PE, N |
| Communication & Data Storage | |
|---|---|
| Connectivity | Bluetooth BLE with 10 m (32 ft) range |
| Connector Types | NACS (Built-in), Type 1 (converter included) |
| Power | |
|---|---|
| Auto Power Off | Off / 5 min / 10 min / 20 min / 30 min |
| Battery | Rechargeable Li-Battery |
| Battery life | 12 Hours Continuously |
| General | |
|---|---|

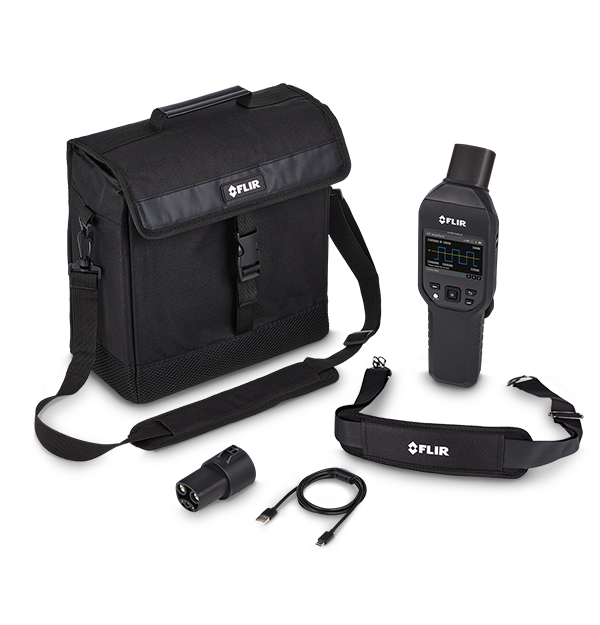

| Box Contents | 1 × EV86-NACS EV Charger Analyzer 1 × Converter (NACS to Type 1) 1 × USB Cable Type A to C 1 × Flir Quick Start Guide 1 × Neck Strap 1 × Carrying Pouch with Shoulder Strap |
| Size (L x W x H) | 296 × 94 × 50 mm (11.6 × 3.7 × 2 in.) |
| Weight | 760 g (1.7 lbs) |
| Environmental & Certifications | |
|---|---|
| Certifications | ETL, CE, FCC |
| EMC | EN61326-1 |
| Operating Altitude | 2000 m (6560 ft) |
| Operating Ambient Temperature and Relative Humidity (RH) | -10°C to 30°C (14°F to 86°F), <85% RH 30°C to 40°C (86°F to 104°F), <75% RH 40°C to 50°C (104°F to 122°F), <45% RH |
| Pollution Degree | 2 |
| Safety Category | CAT II-300 V, IEC61010-1 |
| Storage temperature and relative humidity [RH] | -20°C to 60°C (-4°F to 140°F), 0 to 80% RH |
| Warranty | Limited 3-Year Warranty |
