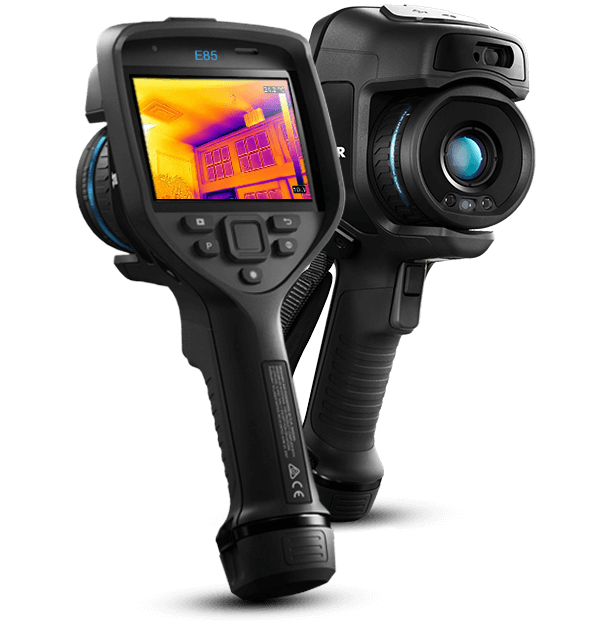

FLIR E85
Leistungsstarke Wärmebildkamera
Die FLIR E85 ist vollgepackt mit leistungsstarken Funktionen, die für die schnelle und genaue Erkennung von Hot-Spots und verborgenen Mängeln erforderlich sind. Die echte native Auflösung von 384 x 288 bietet mehr als 110.000 Temperaturmesspunkte, während der Laser-Entfernungsmesser Daten für die Messung von Flächen (m² oder ft²) auf dem Bildschirm liefert.
Technische Daten
| Markierter | |
|---|---|
| IR-Auflösung | 384 × 288 pixels |
| Thermische Empfindlichkeit / NETD | <30 mK, 42° @ +30°C (+86°F) |
| Genauigkeit | ±2°C (±3.6°F) or ±2% of reading, for ambient temperature 15–35°C (59–95°F) and object temperature above 0°C (32°F) |
| Sichtfeld (FOV) | 42° x 32° (10 mm lens) |
| Digitalkamera | 5 MP, 53° x 41° FOV |
| Bildmodi | Infrared, visual, MSX®, Picture-in-Picture |
| Display | 4", 640 x 480 optically-bonded PCAP touchscreen, with 400 cd/m2 surface brightness |
| Speichermedien | Removable SD card (8 GB) |
| Bildgebung und optische Daten | |
|---|---|
| Auflösung | 640 × 480 pixels (VGA) |
| Bild-in-Bild | Resizable and movable |
| Bildfrequenz | 30 Hz |
| Bildmodi | Infrared, visual, MSX®, Picture-in-Picture |
| Blendenzahl | 1.1, 42° |
| Brennweite | 10 mm (0.39 in.), 42° |
| Detektortyp und -raster | Uncooled microbolometer, 17 µm |
| Digitalkamera | 5 MP, 53° x 41° FOV |
| Digitalzoom | 1-4x continuous |
| Farbe | Black |
| Farbpaletten | Iron, Rainbow, Rainbow HC, White hot, Black hot, Arctic, Lava |
| FLIR Screen-EST-Modus | Yes |
| Fokus | Continuous, one-shot laser distance meter (LDM), one-shot contrast, manual |
| Galerie | Yes |
| Infrarotbild | Yes |
| IR-Auflösung | 384 × 288 pixels |
| Laser | Class 2, 0.05–40 m (1.6–131 ft.) ±1% of measured distance |
| Mindestfokusabstand | 0.15 m (0.49 ft.), 42° |
| Mindestfokusabstand mit MSX | 0.65 m (2.13 ft.), 42° |
| MSX | Embosses visual details on full resolution thermal image |
| Objektiverkennung | Automatic |
| Radiometrische IR-Videoaufzeichnung | Real-time radiometric recording (.csq) |
| Radiometrisches IR-Videostreaming | Over UVC |
| Räumliche Auflösung (IFOV) | 2.00 mrad/pixel, 42° |
| Sichtfeld (FOV) | 42° x 32° (10 mm lens) |
| Skizze | From touchscreen |
| Software-Update Kamera | Mit USB-Kabel oder SD-Karte |
| Spektralbereich | 7.5 - 14.0 µm |
| Streaming visueller Videos | Yes |
| Sucher | No |
| Thermische Empfindlichkeit / NETD | <30 mK, 42° @ +30°C (+86°F) |
| UltraMax | Super-resolution process quadruples pixel count, activated in FLIR Tools+ |
| Messung und Analyse | |
|---|---|
| Automatische Erkennung von Heiß-/Kaltzonen | Auto-maximum/minimum markers within area |
| Bereich | 1 in live mode |
| Differenztemperatur | Yes |
| Emissionsgrad-Korrektur | Yes: variable from 0.01 to 1.0 or selected from materials list |
| Farbalarm (Isotherm) | Above/below/interval/condensation/insulation |
| Genauigkeit | ±2°C (±3.6°F) or ±2% of reading, for ambient temperature 15–35°C (59–95°F) and object temperature above 0°C (32°F) |
| Messpunkt | 3 in live mode |
| Messwertkorrekturen | Yes |
| Probenahmendurchschnitt im Screen-EST Modus | Recommended temperature range: 30 to 45°C (86 to 113°F) in stable room temperature |
| Referenztemperatur | Yes |
| Voreinstellungen für Messungen (Presets) | No measurement, center spot, hot spot, cold spot, User Preset 1, User Preset 2 |
| Benutzeroberfläche | |
|---|---|
| Display | 4", 640 x 480 optically-bonded PCAP touchscreen, with 400 cd/m2 surface brightness |
| Displaytechnologie | IPS |
| Sprache | 60 seconds built-in microphone and speaker (and via Bluetooth) on still images and video |
| Sprachen | 21 |
| Text | Text from predefined list or soft keyboard on touchscreen |
| Kommunikation und Datenspeicher | |
|---|---|
| Audio | Microphone and speaker for voice annotation of images |
| Aufladen | In camera (AC adapter or 12 V from a vehicle) or two-bay charger |
| Bilddateiformat | Standard radiometric JPEG, measurement data included |
| Kommunikationsschnittstellen | USB 2.0, Bluetooth, Wi-Fi |
| METERLiNK | Wireless connection (Bluetooth) to: FLIR meters with METERLiNK |
| Schnittstelle | USB 2.0, Bluetooth, WiFi, DisplayPort |
| Speichermedien | Removable SD card (8 GB) |
| USB | USB Type-C: data transfer/video/power |
| USB – Norm | USB 2.0 High Speed |
| Videoausgang | DisplayPort over USB Type-C |
| WLAN | Peer to peer (ad hoc) or infrastructure (network) |
| Stromversorgung | |
|---|---|
| Akkubetriebsdauer | Approx. 2.5 hours at 25°C (77°F) ambient temperature and typical use |
| Akkuspannung | 3.6 V |
| Akkutyp | Li-ion battery, charged in camera or on separate charger |
| Betrieb mit externer Stromversorgung | AC adapter 90–260 V AC, 50/60 Hz, or 12 V from a vehicle (cable with standard plug—optional) |
| Energiemanagement | Automatic shut-down and sleep mode |
| Gewicht Akku | 140 g (4.9 oz.) |
| Ladetemperatur | 0°C to +45°C (+32°F to +113°F) |
| Umgebungsfaktoren und Zertifizierungen | |
|---|---|
| Betriebstemperaturbereich | –15°C to 50°C (5°F to 122°F) |
| EMV | •ETSI EN 301 489-1 (radio) •ETSI EN 301 489-17 •EN 61000-6-2 (immunity) •EN 61000-6-3 (emission) •FCC 47 CFR Part 15 Class B (emission) |
| Funkwellenspektrum | •ETSI EN 300 328 •FCC Part 15.249 •RSS-247 Issue 2 |
| Garantie | http://www.flir.com/warranty/ |
| Lagertemperaturbereich | –40°C to 70°C (-40°F to 158°F) |
| Luftfeuchtigkeit (Betrieb und Lagerung) | IEC 60068-2-30/24 hours/95% relative humidity 25–40°C (77–104°F)/two cycles |
| Sicherheit | EN/UL/CSA/PSE 60950-1 |
| Stativbefestigung | UNC 1/4"–20 |
| Sturzfestigkeit | Designed for 2 m (6.6 ft.) |
| Allgemeine Angaben | |
|---|---|
| Alarm | Moisture alarm, insulation alarm, measurement alarms |
| Gehäusematerial | PCABS with TPE, magnesium |
| Verpackung | Infrared camera with lens, small viewfinder eyecup, 2 batteries, battery charger, hard transport case, lanyards, front lens cap, power supplies, printed documentation, SD card (8 GB), cables (USB 2.0 A to USB Type-C, USB Type-C to HDMI, USB Type-C to USB Type-C), License card: FLIR Thermal Studio Pro (3 month subscription) + FLIR Route Creator Plugin for Thermal Studio Pro (3 month subscription) |
| Verpackungsgröße | 500 x 190 x 370 mm (19.7 x 7.5 x 14.6 in.) |
