New

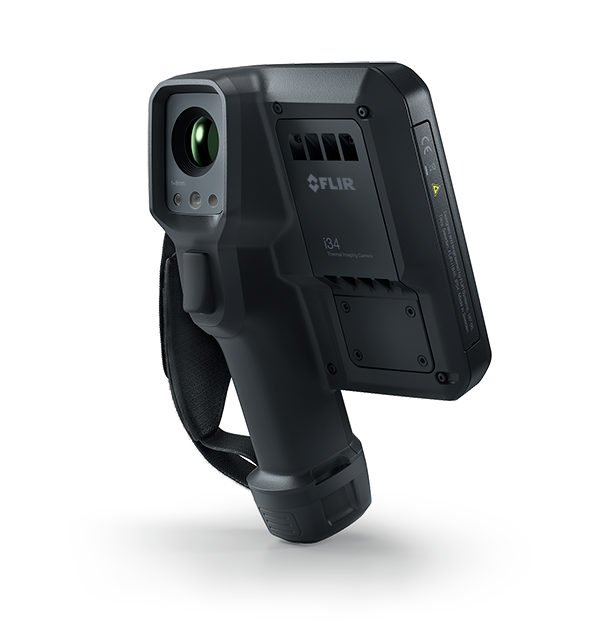

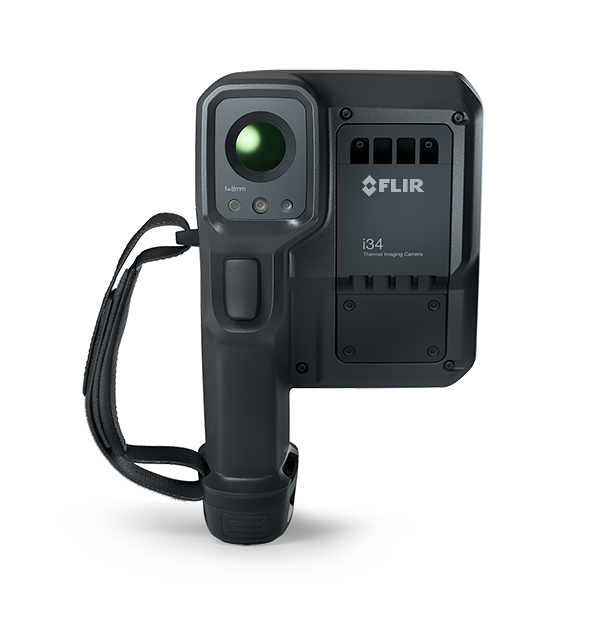

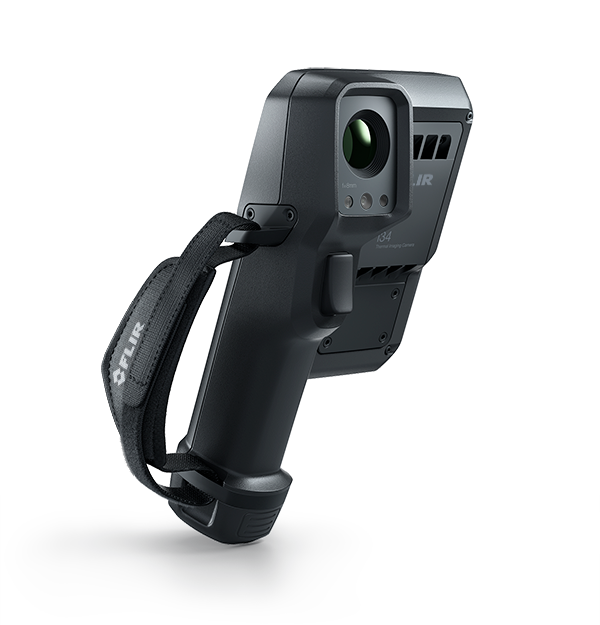

Flir i34
App-Enabled Thermal Camera
Top application
- Asset Reliability
- Building Diagnostics & Indoor Air Quality
- Electrical Inspection
- Mechanical Inspection
Product Variations
The Flir i34 is the smart, scalable way to bring thermography to more people across your team—without compromising on consistency or control. With 240 × 320 thermal resolution and the power of the Flir ACE platform, the i34 transforms inspections into app-guided, repeatable workflows that anyone can follow—helping you capture the right data, in the right place, at the right time.
The i34 supports fully guided inspection routes, on-camera fault detection, baseline image comparison, and direct integration with Flir Assetlink and Ignite. Whether you're expanding your predictive maintenance program or reducing reliance on paper-based reporting, the i34 helps standardize inspections and eliminate guesswork—no matter the user’s experience level.
With a wide field of view, glove-friendly controls, and cybersecure data transfer behind your IT firewall, the i34 is your entry point to smarter, more connected thermography—designed to scale with your goals, not your workload.
With the advantage of Flir, 3rd-party, and custom apps, iXX-Series cameras simplify inspections and improve workflow for increased productivity. Apps can reduce the steps between data gathering and consumption, letting you work the way that makes the most sense for your organization.
On-board apps can flatten the learning curve, provide safety information, host training, and offer remote support so inexperienced users can perform expert-level inspections.
Flir iXX cameras can host a range of apps—Flir-made, 3rd-party, and custom—designed to address communication, documentation or decision-making needs.
Technische Daten
| Highlighted | |
|---|---|
| IR-Auflösung | 240 × 320 |
| Thermische Empfindlichkeit / NETD | <40 mK at 30°C (86°F) |
| Genauigkeit | ±2°C (±3.6°F) or ±2% |
| Sichtfeld (FOV) | 38° × 49° |
| Digitalkamera | 8 MP, Autofocus |
| Bildmodi | MSX®, Thermal, Picture-in-Picture, Digital camera |
| Speichermedien | Internal memory, onboard Flir Ignite cloud and Assetlink connectivity |
| Bildgebung und optische Daten | |
|---|---|
| Automatische Bildeinstellung | Yes |
| Bildfrequenz | 30 Hz |
| Bildmodi | MSX®, Thermal, Picture-in-Picture, Digital camera |
| Blendenzahl | 1.4 |
| Digitalkamera | 8 MP, Autofocus |
| Display-Auflösung | 720 × 1280 |
| Display-Typ | 5 in. color LCD |
| Farbe | Black |
| Farbpaletten | Iron, White hot, Black hot, Rainbow, Arctic, Lava, Rainbow HC |
| Fokus | Fixed focus |
| IR-Auflösung | 240 × 320 |
| Laserausrichtung | Position of laser pointer automatically displayed on the infrared image |
| Manuelle Bildeinstellung | Yes |
| Mindestfokusabstand | 0.5 m |
| Räumliche Auflösung (IFOV) | 2.9 mrad |
| Sichtfeld (FOV) | 38° × 49° |
| Sichtfeld Digitalkamera | 50.5° × 64.5° |
| Spektralbereich | 7.5 to 13 µm |
| Thermische Empfindlichkeit / NETD | <40 mK at 30°C (86°F) |
| Messung und Analyse | |
|---|---|
| Delta T | Yes, NFPA 70B compliant |
| Emissionsgrad-Korrektur | Variable from 0.1 to 1.0 |
| Genauigkeit | ±2°C (±3.6°F) or ±2% |
| Isotherm | Above, Below |
| Kameragewicht mit Akku | 0.8 kg (1.76 lb) |
| Kameramaße (L × B × H) | 225 × 136 × 73 mm (8.9 × 5.4 × 2.9 in) |
| Messpunkt | Center spot, box with min./max. |
| Messwertkorrekturen | Emissivity, matt/semi-matt/semi-gloss + custom value, reflected apparent temperature, atmospheric compensation |
| Objekttemperaturbereich | -20°C to 200°C (-4°F to 392°F) 10°C to 450°C (50°F to 842°F) |
| Benutzeroberfläche | |
|---|---|
| Text | Text annotation on image using onscreen keyboard |
| Touchscreen | Capacitive touch |
| Kommunikation und Datenspeicher | |
|---|---|
| Dateiformate | Standard JPEG, 14-bit measurement data included |
| Schnittstelle | USB-C: Data transfer to and from PC and Mac device Display port over USB-C |
| Speichermedien | Internal memory, onboard Flir Ignite cloud and Assetlink connectivity |
| Wechselstrombetrieb | Optional accessory: 45 W AC adapter, 100 V to 240 V AC input, 15 V DC, 3 A output to camera |
| WLAN | IEEE 802.11 a/ac/b/g/n (2.4 and 5 GHz) |
| Stromversorgung | |
|---|---|
| Akkubetriebsdauer | 4 hours at 25°C (77°F) ambient temperature and typical use |
| Akkutyp | Rechargeable Lithium-ion battery |
| Energiemanagement | Automatic shut-down |
| Ladedauer | 2 hours in charger / 4 hours to 90% capacity in camera |
| Ladesystem | Battery is charged inside the camera or in specific charger (included) |
| Umgebungsfaktoren und Zertifizierungen | |
|---|---|
| Betriebstemperaturbereich | -15°C to 50°C (5°F to 122°F) |
| Emissionsgrad-Tabelle | Emissivity table of predefined materials |
| EMV | EN 301 489-1, EN 301 489-17, EN 61000-6-3, EN 61000-6-2, FCC 47 CFR Part 15 Class B |
| Funkwellenspektrum | ETSI EN 300 328 ETSI EN 301 893 FCC 47 CFR part 15 RSS-247 |
| Gehäuse | IP54 (IEC 60529) |
| Lagertemperaturbereich | -40°C to 70°C (-40°F to 158°F) |
| Laserklassifizierung | Class 2 |
| Luftfeuchtigkeit | IEC 60068-2-30/24 h 95% relative humidity |
| Stoßfestigkeit | 25 g (IEC 60068-2-27) |
| Sturzfestigkeit | 2 m (6ft 7 in) |
| Vibrationen | 2 g (IEC 60068-2-6) |
| Allgemeine Angaben | |
|---|---|
| Arbeitsleuchte | Manually activated bright LED |
| Lieferumfang | Infrared camera with battery Extra battery Battery charger USB-C cable Printed documentation Hard transport case Wrist strap |
