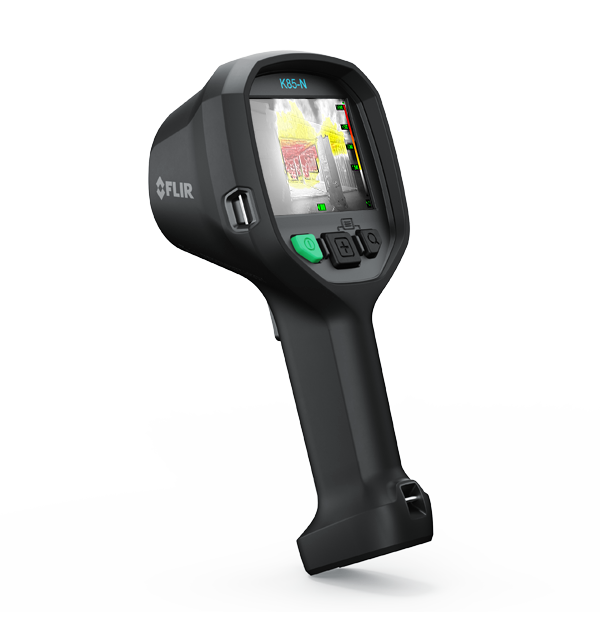

K85-N
NFPA 1930:2025-Certified Firefighting TIC, 640 × 480, App-Enabled
The Flir K85-N gives firefighters clearer vision and greater confidence in smoke-filled, high-heat environments. Fully certified to NFPA 1930:2025, this next-generation TIC combines sharp 640 × 480 resolution, enhanced contrast, and a single-range imaging solution that reveals critical scene detail without switching ranges or losing situational awareness. Purpose-built firefighting modes help crews adapt to changing conditions on the fireground, while improved ergonomics, easier cleaning, and high-clarity zoom support faster, more effective operation. Plus, seamless connectivity with the Flir Responder App extends the camera’s value before, during, and after the mission through camera setup, over-the-air updates, wireless streaming, media handling, reporting, training, and post-incident review.
Technische Daten
| Markierter | |
|---|---|
| IR-Auflösung | 640 × 480 |
| Display | 4" LCD, 640 × 480, backlit, 60 Hz display frame rate |
| Objekttemperaturbereich | Single range solution operating: -20°C to 650°C (-4°F to 1202°F) |
| Bildmodi | TI Basic, Search, Detection, High Heat, White Hot |
| Bildgebung und optische Daten | |
|---|---|
| Aufzeichnung nicht radiometrisches IR-Video | MPEG4 to internal flash memory |
| Bildfrequenz | 30 Hz |
| Bildmodi | TI Basic, Search, Detection, High Heat, White Hot |
| Detektortyp | Focal plane array (FPA), uncooled microbolometer |
| IR-Auflösung | 640 × 480 |
| Kontrastoptimierung | Digital enhancement, Flexible Scene Enhancement (FSX®) |
| Nicht-radiometrisches IR-Videostreaming | Uncompressed colorized video using USB and MPEG-4 Stream over Wi-Fi to Flir Responder app |
| Raster | 12 µm |
| Sichtfeld (FOV) | 53° × 40° |
| Spektralbereich | 7.5 µm to 14 µm |
| Thermische Empfindlichkeit / NETD | <60 mK |
| Zoom | 2x digital zoom |
| Umgebungsfaktoren und Zertifizierungen | |
|---|---|
| Betriebstemperaturbereich | -20°C to 60°C (-4°F to 140°F) 150°C (302°F): 15 min 260°C (500°F): 5 min |
| EMV | EN 301 489-1 RED EN 301 489-17 EN 55032 Class B (Emission) EN 55035 (Immunity) EN 61000-6-2 Immunity according to Industrial EN 61000-6-3 380-480 MHz EN 61000-6-3 800-960 MHz EN 60945 Maritime equipment FCC 47 CFR part 15 B, class B (Emission) ICES-003 |
| Gehäuse | IP67 (IEC 60529) |
| Konformität | NFPA 1930:2025 |
| Lagertemperaturbereich | -40°C to 85°C (-40°F to 185°F) |
| Luftfeuchtigkeit (Betrieb und Lagerung) | IEC 60068-2-30/24 h 95 |
| Magnetfelder | EN 61 000-4-8, Test level 5 for continuous field (severe industrial environment) |
| Relative Luftfeuchtigkeit | 95% relative humidity 25°C to 40°C (77°F to 104°F) non-condensing |
| Sicherheit | CE/EN/UL/CSA/PSE 60950-1 IEC 62368 |
| Stoßfestigkeit | 25 g (IEC 60068-2-27) |
| Sturzfestigkeit | 2 m (6.6 ft) on concrete floor (IEC 60068-2-31) |
| Vibrationen | 2 g (IEC 60068-2-6) |
| Stromversorgung | |
|---|---|
| Akkubetriebsdauer | Approx. 4 hours @ 25°C (77°F) ambient temperature and typical use |
| Akkukapazität | 6.2 Ah, at 20°C to 25°C (68°F to 77°F) |
| Akkuspannung | 3.6 V |
| Akkutyp | Li-Ion |
| Energiemanagement | Automatic shutdown and sleep mode For documents like MSDS and UN38.3 test reports/summaries, see: https://support.flir.com/resources/msds |
| Ladedauer | <3 h to capacity enough for 3 h operation |
| Ladesystem | Desktop 2-bay charger Optional in-truck charger |
| Ladetemperatur | 0°C to 45°C (32°F to 113°F) |
| Messung und Analyse | |
|---|---|
| Genauigkeit | ±4°C (±7.2°F) or ±6% of reading, for ambient temperature 10°C to 35°C (50°F to 95°F) |
| Objekttemperaturbereich | Single range solution operating: -20°C to 650°C (-4°F to 1202°F) |
| Allgemeine Angaben | |
|---|---|
| Lieferumfang | Infrared camera Battery (2 ea.) Battery charger Carabiner strap Power supply Printed documentation Retractable lanyard, 16 N (58 oz) USB cable |
| Benutzeroberfläche | |
|---|---|
| Display | 4" LCD, 640 × 480, backlit, 60 Hz display frame rate |
| Kommunikation und Datenspeicher | |
|---|---|
| Bildspeicherkapazität | 200 files in total (N.B. The total number of files varies dependent on the number of saved video clips) |
| Dateiformate | Standard JPEG, stored in the camera and on the Flir Responder app |
| Schnittstelle | Update via OTA (Wi-Fi using the Flir Responder app) Legacy support for updates from PC and data transfer to and from PC |
| Speichermedien | Internal flash memory |
| USB | USB-C |
Export Restrictions
The information contained in this page pertains to products that may be subject to the International Traffic in Arms Regulations (ITAR) (22 C.F.R. Sections 120-130) or the Export Administration Regulations (EAR) (15 C.F.R. Sections 730-774) depending upon specifications for the final product; jurisdiction and classification will be provided upon request.
