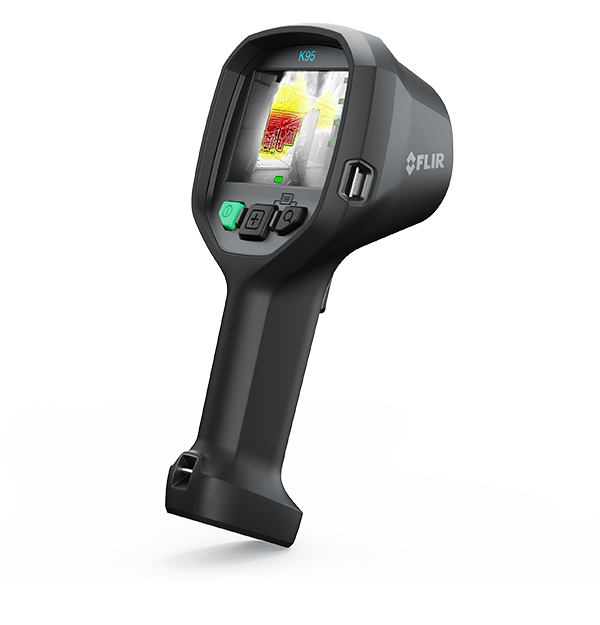

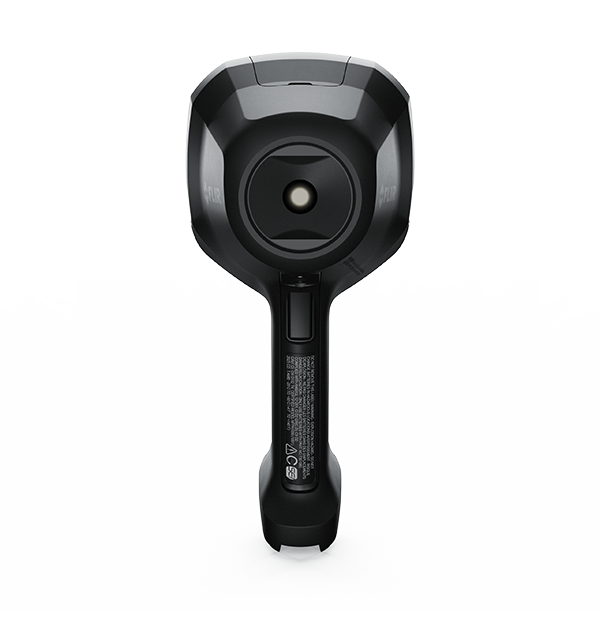

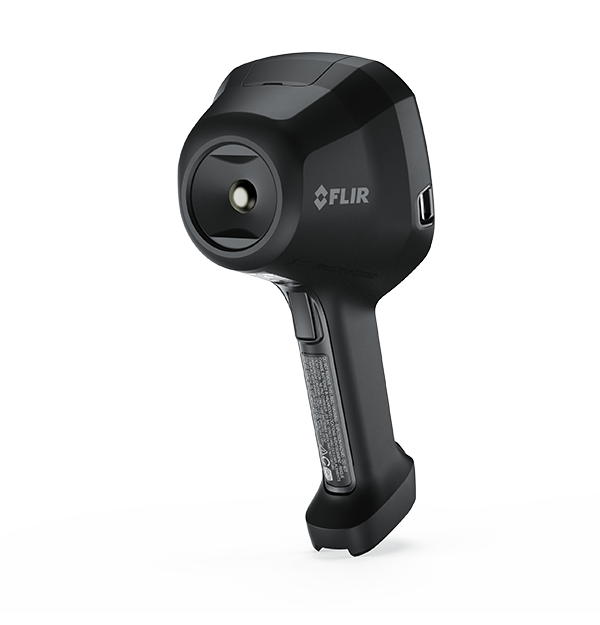

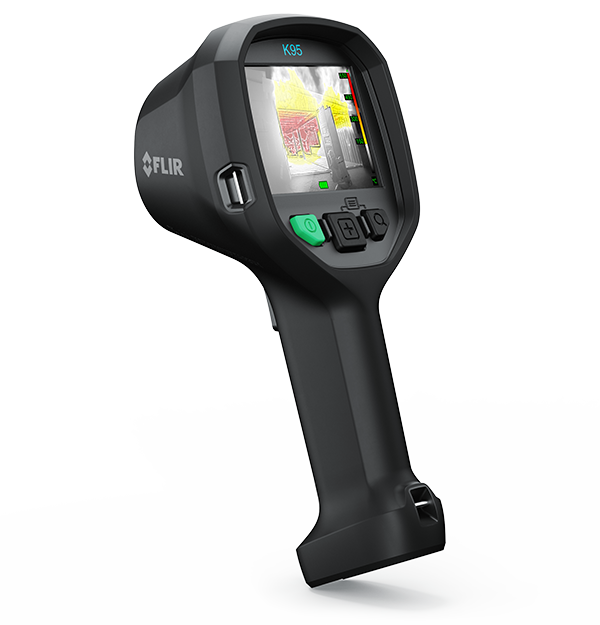

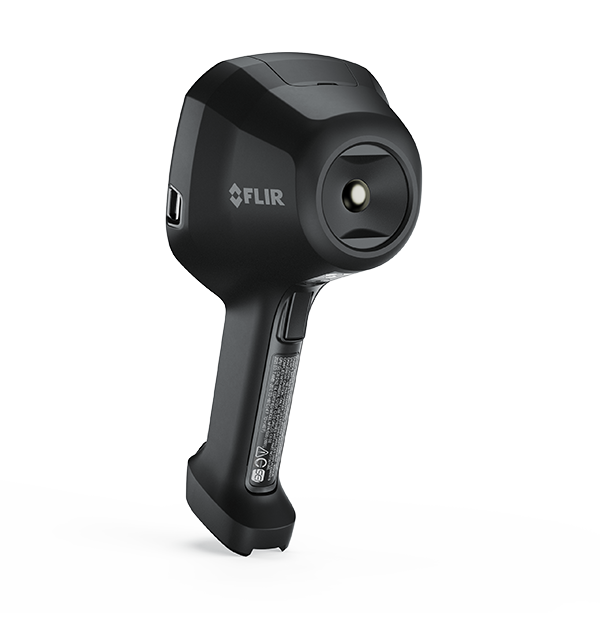

K95
Firefighting TIC, 95° Wide-Angle Field of View, 640 × 480, App-Enabled
The Flir K95 is the next generation of the K-Series, designed to give firefighters a clearer, more complete view before, during, and after every incident. Combining 640 × 480 thermal resolution with an expansive 95° field of view, the K95 reveals more of the scene in every glance. By reducing the need for constant scanning and panning, it helps crews understand room layouts, identify movement paths, assess fire development, and make faster, better-informed decisions during search and rescue and fire attack.
Its single-gain solution provides continuous, freeze-free imaging without losing critical scene information. From overheated doors and hidden fire spread to floor openings, the K95 helps firefighters recognize changing conditions sooner, attack fires more strategically, and manoeuvre through smoke-filled environments with greater confidence. Wireless connectivity to the Flir Responder App also simplifies camera configuration, enables live video streaming for training, and supports mission data sharing after the call.
Technische Daten
| Markierter | |
|---|---|
| IR-Auflösung | 640 × 480 |
| Display | 4" LCD, 640 × 480, 60 Hz, backlit |
| Objekttemperaturbereich | Single range solution operating: -20°C to 650°C (-4°F to 1202°F) |
| Bildmodi | Basic, Search, Detection, High Heat, White Hot |
| Bildgebung und optische Daten | |
|---|---|
| Aufzeichnung nicht radiometrisches IR-Video | MPEG4 to internal flash memory |
| Bildfrequenz | 30 Hz |
| Bildmodi | Basic, Search, Detection, High Heat, White Hot |
| Detektortyp | Focal plane array (FPA), uncooled microbolometer |
| IR-Auflösung | 640 × 480 |
| Kontrastoptimierung | Flexible Scene Enhancement (FSX®) |
| Nicht-radiometrisches IR-Videostreaming | Uncompressed colorized video using USB and MPEG-4 Stream over Wi-Fi to Flir Responder app |
| Raster | 12 µm |
| Sichtfeld (FOV) | 95° × 74° |
| Spektralbereich | 7.5µm to 14 µm |
| Thermische Empfindlichkeit / NETD | <70 mK |
| Zoom | 2x digital zoom |
| Umgebungsfaktoren und Zertifizierungen | |
|---|---|
| Betriebstemperaturbereich | -20°C to 60°C (-4°F to 140°F)
150°C (302°F): 15 min 260°C (500°F): 5 min |
| EMV | EN 301 489-1 RED
EN 301 489-17 EN 55032 Class B (Emission) EN 55035 (Immunity) EN 61000-6-2 Immunity according to Industrial EN 61000-6-3 380-480MHz EN 61000-6-3 800-960MHz EN 60945 Maritime equipment FCC 47 CFR part 15 B, cla |
| Funkwellenspektrum | ETSI EN 300 328
ETSI EN 301 893 FCC 47 CFR part 15 RSS-247 |
| Gehäuse | IP67 (IEC 60529) |
| Lagertemperaturbereich | -40°C to 85°C (-40°F to 185°F) |
| Luftfeuchtigkeit (Betrieb und Lagerung) | IEC 60068-2-30/24 h 95 |
| Magnetfelder | EN 61 000-4-8, Test level 5 for continuous field (severe industrial environment) |
| Relative Luftfeuchtigkeit | 95% relative humidity 25°C to 40°C
(77°F to 104°F) non-condensing |
| Stoßfestigkeit | 25 g (IEC 60068-2-27) |
| Sturzfestigkeit | 2 m (6.6 ft) on concrete floor (IEC 60068-2-31) |
| Vibrationen | 2 g (IEC 60068-2-6) |
| Stromversorgung | |
|---|---|
| Akkubetriebsdauer | Approx. 4 hours @ 25°C (77°F) ambient temperature and typical use |
| Akkukapazität | 5.8 Ah, at 20°C to 25°C (68°F to 77°F) |
| Akkuspannung | 3.7 V |
| Akkutyp | Li-Ion |
| Energiemanagement | For documents like MSDS and UN38.3 test reports/summaries, see: https://support.flir.com/resources/msds |
| Ladedauer | ≤3 h to capacity enough for 3 h operation |
| Ladesystem | Desktop 2-bay charger
Optional in-truck charger |
| Ladetemperatur | 0°C to 45°C (32°F to 113°F) |
| Sicherheit [Stromversorgung] | CE/EN/UL/CSA/PSE 60950-1 IEC 62368 |
| Messung und Analyse | |
|---|---|
| Objekttemperaturbereich | Single range solution operating: -20°C to 650°C (-4°F to 1202°F) |
| Allgemeine Angaben | |
|---|---|
| Lieferumfang | Infrared camera
Battery (2 ea.) Battery charger Carabiner strap Power supply Printed documentation Retractable lanyard, 16 N (58 oz) USB cable |
| Benutzeroberfläche | |
|---|---|
| Display | 4" LCD, 640 × 480, 60 Hz, backlit |
| Kommunikation und Datenspeicher | |
|---|---|
| Bildspeicher | Camera and Flir Responder app |
| Bildspeicherkapazität | 200 files in total (N.B. The total number of files varies dependent on the number of saved video clips) |
| Bluetooth | Bluetooth v. 5.0 EDR + BLE *PAN |
| Dateiformate | Standard JPEG |
| Schnittstelle | Update via OTA (Wi-Fi using the Flir Responder app)
Legacy support for updates from PC and data transfer to and from PC |
| Speichermedien | Internal flash memory |
| USB | USB-C |
| WLAN | IEEE 802.11 b/g/n (2.4 GHz) |
Zubehör
Ressourcen und Support
Datasheet
FLIR K95 Datenblatt
Datasheet
FLIR K95 Datasheet
Warranty
FLIR Fire Service 2-5-10 Global Limited Warranty
Certification
ISO 9001-2015 FLIR Sweden
Export Restrictions
The information contained in this page pertains to products that may be subject to the International Traffic in Arms Regulations (ITAR) (22 C.F.R. Sections 120-130) or the Export Administration Regulations (EAR) (15 C.F.R. Sections 730-774) depending upon specifications for the final product; jurisdiction and classification will be provided upon request.
