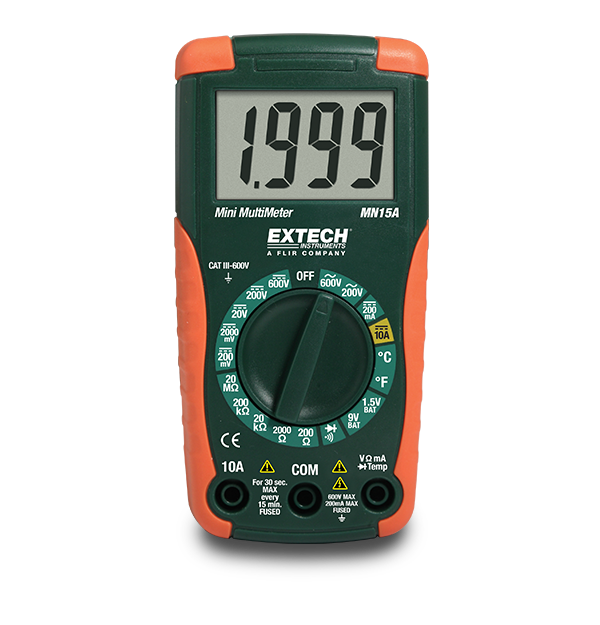

Extech MN15A
Digital Mini MultiMeter
Small on size and configured with vital functionality, the compact, manual-ranging Extech MN15A Digital Mini Multimeter is a popular choice for anyone who prefers a smaller meter they can carry in a pocket or tool belt. Handy for quick testing, use it to measure AC/DC voltage and DC current, as well resistance with functions for testing diodes and checking for continuity. Plus, the battery test function lets you quickly check the condition of 1.5 V and 9 V batteries. The MN15A comes with a built-in stand, 9 V battery, test leads, and a general purpose temperature probe.
Technische Daten
| Allgemeine technische Daten | |
|---|---|
| Batterietest | 9V & 1.5V Batteries |
| Gleichspannung | 600V |
| Gleichspannung Grundgenauigkeit | ±0.5% |
| Gleichspannung Max. Auflösung | 0.1mV |
| Gleichstrom Grundgenauigkeit | ±1.2% |
| Gleichstrom Max. Auflösung | 0.1mA |
| Gleichstromstärke | 10A |
| Temperatur (Typ K) Max. Auflösung | -4 to 1400°F (-20 to 750°C) |
| Temperatur (Typ N) | ±(3% of reading + 9°F/5°C) |
| Temperatur (Typ N) Grundgenauigkeit | 0.1 ° |
| Wechselspannung | 600V |
| Wechselspannung Grundgenauigkeit | ±1.2% |
| Wechselspannung Max. Auflösung | 0.1V |
| Widerstand | 20MΩ |
| Widerstand Max. Auflösung | 0.1Ω |
| Weitere Details | |
|---|---|
| Abmessungen | 5.43 × 2.83 × 1.5" (138 × 72 × 38mm) |
| Garantie | 2 years |
| Gewicht | 5.4oz (153g) |
| Sicherheitskategorie | CATIV - 600V |
| Stromversorgung | 1 × 9V battery |
| Zertifizierungen | CE, ETL |
Ressourcen und Support
Datasheet
Extech MN15A-MN16A Datasheet
Certification
Extech MN15A Declaration of Conformity
User Manual
Extech MN15A User Manual
