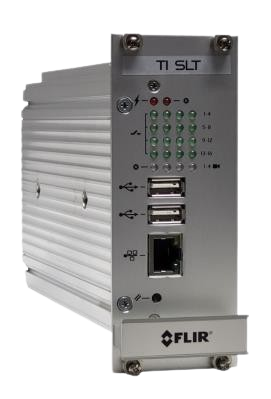

FLIR TI SLT Interface
TrafiCam 3 and TrafiOne BPL Interface
The FLIR TI SLT BPL interface connects zone outputs from TrafiCam 3 and TrafiOne sensors to a controller. The TI SLT provides power and communications to the sensors at the same time. It also connects the PC to the connected sensors for system configuration and viewing.
Technische Daten
| Systemübersicht | |
|---|---|
| Fehlerausgang | 4 × optical coupled dry contacts N/O via terminal connector on the back Imax = 50 m A, Umax = 48 V DC 1 interface error LED on the front 4× sensor status LEDs |
| Max. Anzahl Kameras | Standard 1 – 8 sensors Maximum 8 × sensors |
| Kommunikation | |
|---|---|
| Anschluss | Via 4 × terminal connectors on the back |
| Ausgang | 16 × optical coupled dry contacts N/C via terminal connector on the back
Imax = 50m A, Umax = 48 V DC Configurable ‘Close on Event’ or ‘Open on Event’ *Detection output status information via 16 output LEDS (green, front) |
| RJ11-Anschluss | 1 RJ45 Ethernet connector |
| Elektrik | |
|---|---|
| Eingangsspannung | 12 – 42 V AC 12 – 48 V DC |
| Leistungsaufnahme | ≤130 mA at 24 V DC |
| Stromaufnahme | ≤130 mA at 24 V DC |
| Umgebungsfaktoren | |
|---|---|
| EMV | EMC 2014/30/EU, LVD 2014/35/EU, RoHS 2011/65/EU |
| Temperaturbereich | -40°C to 74°C (-40°F to 165°F) |
| Mechanik | |
|---|---|
| Abmessungen | (H × W × D) 12.84 × 5.05 × 18.00 cm (5.06 × 1.99 × 7.09 in) |
| Befestigung | BOX, EURO-rack mountable, DIN-rail clickable |
| Gewicht | 750 g (1.65 lb) |
