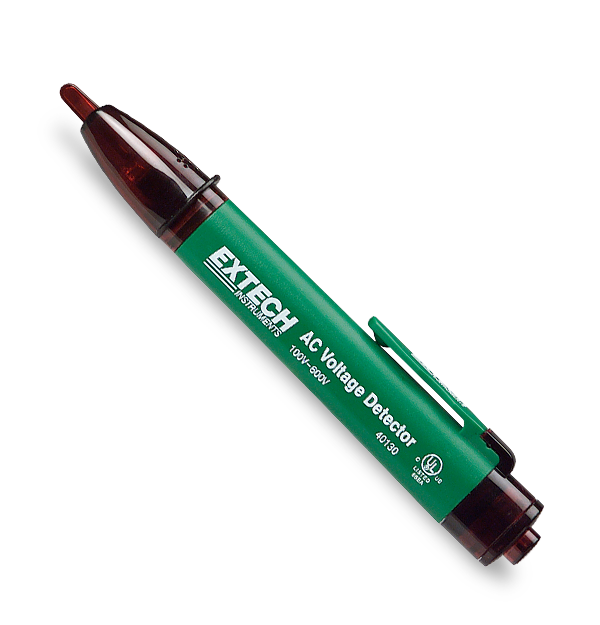

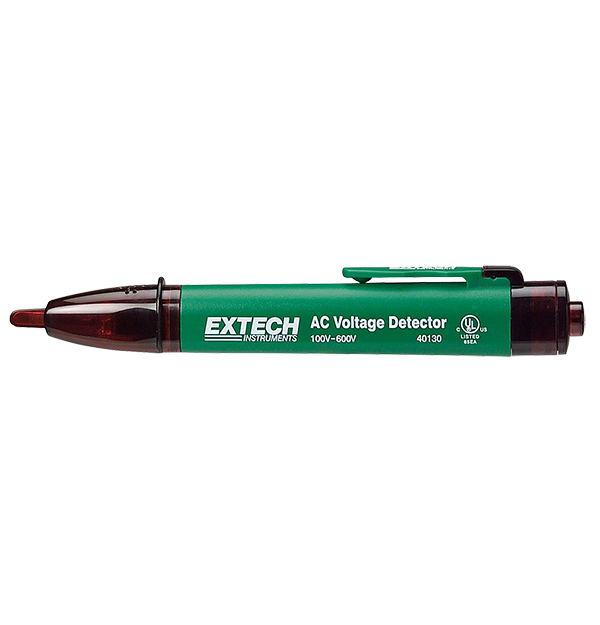

Extech 40130
Non-Contact Detection of AC Voltage
Capable of detecting the presence of live wires before testing, this pocket-size AC voltage detector features a low-profile tip that can be inserted into outlet receptacles or used to trace along wire insulation to locate breaks. The Extech 40130 measures from 100 to 600 VAC (50/60 Hz) with visual (flashing red LED) alarms and audible (beeping) tones that can be switched off. Use for line out testing, locating breaks and control panel troubleshooting. CE approved and UL Listed. Complete with convenient size with pocket clip, and two AAA batteries.
Specifications
| General | |
|---|---|
| Detection Distance | <5.1 mm (0.2") for 110V AC receptacles; 4 to 6" (10.2 to 15.2cm) up to 300V AC |
| Frequency Bandwidth | 50/60Hz |
| Voltage Detection [Non_Contact] | 100 to 600V AC |
| Additional Details | |
|---|---|
| Certifications | CE, UL |
| Dimensions | 6 × 0.75 × 1" (152 x 19 x 25mm) |
| Power | 2 × AAA (1.5V) batteries |
| Safety Category | CAT III-600V |
| Warranty | 2 years |
| Weight | 2oz (57g) |
Resources & Support
Certification
Extech 40130 Declaration of Conformity
Datasheet
Extech 40130 Datasheet
Export Restrictions
The information contained in this page pertains to products that may be subject to the International Traffic in Arms Regulations (ITAR) (22 C.F.R. Sections 120-130) or the Export Administration Regulations (EAR) (15 C.F.R. Sections 730-774) depending upon specifications for the final product; jurisdiction and classification will be provided upon request.
