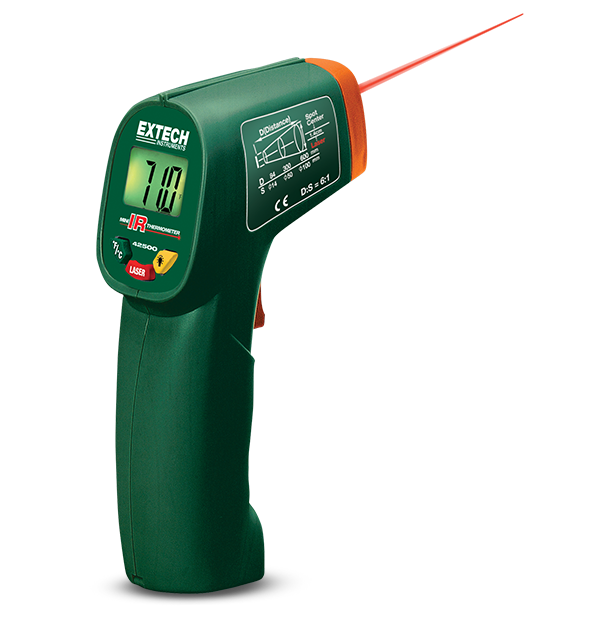

Extech 42500
Mini IR Thermometer
The Extech 42500 Mini IR Thermometer provides fast temperature measurements without contact simply by pointing at the object being measured. The built-in laser improves aim by centering the measuring area. Readings are selectable in °C or °F, and the backlit display allows readings in dimly lit areas. The temperature range is -20°C to 260°C (-4°F to 500°F). Applications include checking heating and A/C ducts, motors, bearings, tires, radiators, cooking grills, refrigerators, and much more. Includes 9 V battery.
Specifications
| General | |
|---|---|
| Distance to Target Ratio | 6:1 |
| Emissivity | 0.95, fixed |
| Targeting | single laser |
| Temperature [IR] Basic Accuracy | -4 to 500 °F (-20 to 260 °C) |
| Temperature [IR] Max Resolution | ±3% of reading or ±6 °F/ ±3 °C (whichever is greater) |
| Temperature [RTD] | 1 °F/ °C |
| Additional Details | |
|---|---|
| Certifications | CE |
| Dimensions | 3.2 × 1.7 × 6.7" (82 × 44 × 170mm) |
| Power | 1 × 9V battery |
| Warranty | 2 years |
| Weight | 4.9oz (140g) |
Resources & Support
User Manual
Extech 42500 User Manual
Datasheet
Extech 42500 Datasheet
Certification
Extech 42500 Declaration of Conformity
Export Restrictions
The information contained in this page pertains to products that may be subject to the International Traffic in Arms Regulations (ITAR) (22 C.F.R. Sections 120-130) or the Export Administration Regulations (EAR) (15 C.F.R. Sections 730-774) depending upon specifications for the final product; jurisdiction and classification will be provided upon request.
