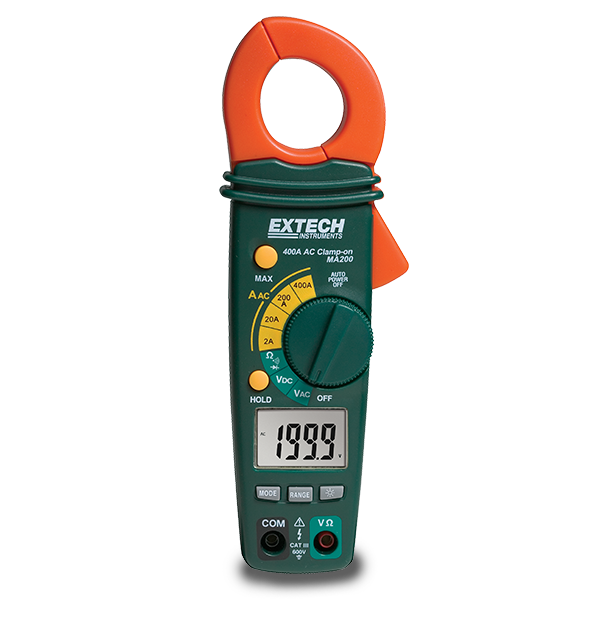

Extech MA200
400A AC Clamp Meter
The Extech MA200 AC Clamp Meter has a 2,000 count LCD display with high accuracy for current measurements. It has a 23 mm (0.9 in) jaw size that accommodates conductors up to 300 MCM. This meter has a continuity beeper and a diode test as well as a data hold and max hold feature. Also, the MA200 has overload protection for all ranges, over range, and low battery indicators. This meter has autoranging with an auto power off function. Complete with test leads, a carrying case, and two AAA batteries.
Specifications
| General | |
|---|---|
| AC Current | 2, 20, 200, 400A |
| AC Current Basic Accuracy | ±2.5% |
| AC Current Max Resolution | 0.001A |
| AC Voltage | 200mV, 2V, 20V, 200V, 600V |
| AC Voltage Basic Accuracy | ±1.5% |
| AC Voltage Max Resolution | 0.1mV |
| Continuity | ≤30Ω Beeper |
| DC Voltage | 200mV, 2V, 20, 200V, 600V |
| DC Voltage Basic Accuracy | ±1.2% |
| DC Voltage Max Resolution | 0.1mV |
| Jaw Size | 0.9" (23mm), conductors up to 300MCM |
| Resistance | 200Ω, 2kΩ, 20kΩ, 200kΩ, 2MΩ, 20MΩ |
| Resistance Max Resolution | 0.1Ω |
| Additional Details | |
|---|---|
| Certifications | CE, UL |
| Dimensions | 7.9 × 2 × 1.4" (200 × 50 × 35mm) |
| Power | 2 × AAA (1.5V) batteries |
| Safety Category | CATIII - 600V |
| Warranty | 2 years |
| Weight | 7oz (200g) |
Resources & Support
Datasheet
Extech MA200 MA220 Datasheet
Certification
Extech MA200 Declaration of Conformity
User Manual
Extech MA200 User Manual
