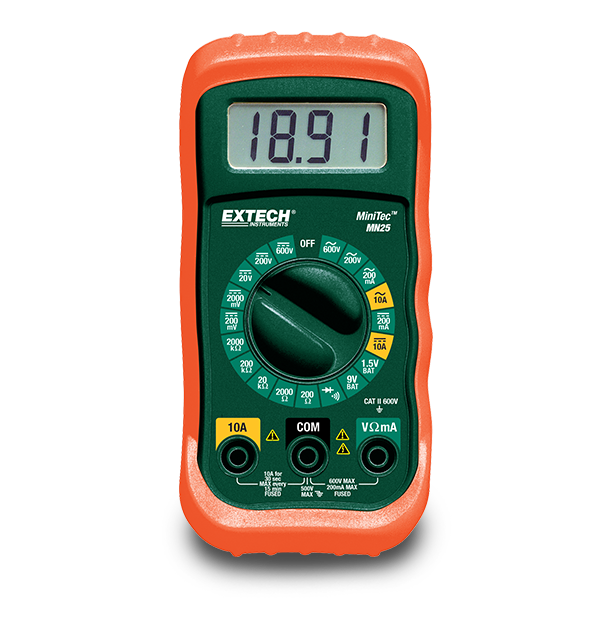

Extech MN25
MiniTec™ Digital MultiMeter
The Extech MN25 MiniTec™ Digital Multimeter has a large, 2,000 count LCD display with a 10 A fuse protection. This meter reads the AC/DC voltage and current, resistance, diode, and continuity. It is capable of running a 1.5 V and 9 V battery test function, and it comes with an overload protection feature with the overload indication signal. This rugged, pocket sized meter is manual ranging and runs eight different functions. The MN25 comes complete with a protective holster, stand, one 9 V battery, and the needed test leads.
Specifications
| General | |
|---|---|
| AC Current | 200 mA, 10 A |
| AC Current Basic Accuracy | ±1.8% |
| AC Current Max Resolution | 1 µA |
| AC Voltage | 200 V, 600 V |
| AC Voltage Basic Accuracy | ±1.5% |
| AC Voltage Max Resolution | 0.1 V |
| Battery Test | 9 V, 1.5 V |
| Continuity | Yes |
| DC Current | 200 mA, 10 A |
| DC Current Basic Accuracy | ±1.2% |
| DC Current Max Resolution | 1 µA |
| DC Voltage | 200 mV, 2000 mV, 20 V, 200 V, 600 V |
| DC Voltage Basic Accuracy | ±0.5% |
| DC Voltage Max Resolution | 0.1 mV |
| Diode Test | Yes |
| Resistance | 200 Ω, 2 kΩ, 20 kΩ, 200 kΩ, 2 MΩ |
| Resistance Max Resolution | 0.1 Ω |
| Additional Details | |
|---|---|
| Certifications | UL |
| Dimensions | 4.8 × 2.4 × 1.6" (122 × 61 × 40 mm) |
| Power | 1 × 9V battery |
| Safety Category | CATII - 600V |
| Warranty | 1 year |
| Weight | 9.17 oz (260 g) |
