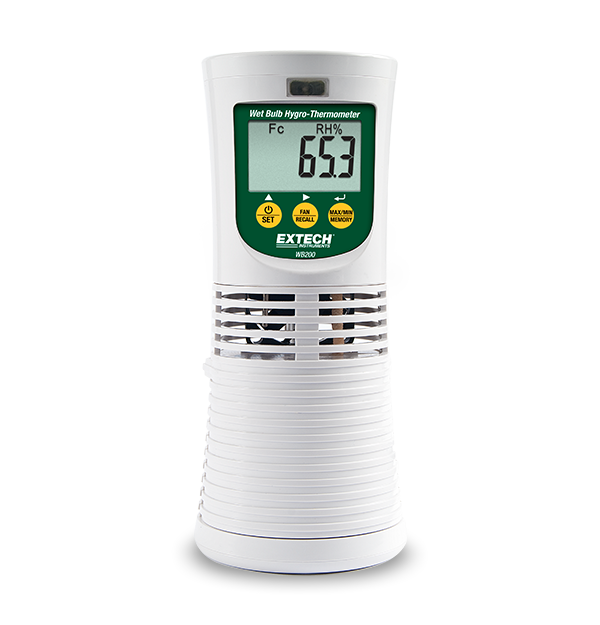

Extech WB200
Wet Bulb Hygro-Thermometer Datalogger
Ideal for monitoring humidity and temperature levels in a wide range of locations, the Extech WB200 combines traditional dry and wet bulb operation with electronic circuitry to provide accurate readings and trouble-free operation, especially in dusty environments. A built-in fan provides fast response time. It has audible and visual alerts for temperature and humidity levels higher or lower than the user programmed high/low set points. The datalogger featuring user programmable sampling rates (15 to 60 minutes) stores 100 records that can easily be recalled on the display. Measures wet bulb, dew point, temperature (5°C to 50°C / 41°F to 122°F), and relative humidity (0.0% RH to 99.9% RH). Comes with four AAA batteries, 100 V - 240 V universal AC adapter, and user manual.
Specifications
| General | |
|---|---|
| Dew Point | 41 to 122°F (5° to 50°C) |
| Dew Point Basic Accuracy | ±1°F/0.6°C |
| Dew Point Max Resolution | 0.1° |
| Memory | Up to 100 reading sets |
| Relative Humidity | 0.0 to 99.9% |
| Relative Humidity Basic Accuracy | ±3% |
| Relative Humidity Max Resolution | 0.1% |
| Response Time | 120 second update rate |
| Sampling Rate | 15 minutes to 60 minutes in 5 minute increments |
| Temperature [Air] | 41 to 122°F (5° to 50°C) |
| Temperature [Air] Basic Accuracy | ±1°F/0.6°C |
| Temperature [Air] Max Resolution | 0.1° |
| Wet Bulb | 41 to 122°F (5° to 50°C) |
| Wet Bulb Basic Accuracy | ±1°F/0.6°C |
| Wet Bulb Max Resolution | 0.1° |
| Additional Details | |
|---|---|
| Certifications | CE |
| Dimensions | 2.8 × 3.1 × 7.0'' (70.8 × 77.6 × 177mm) |
| Power | 4 × AAA (1.5V) batteries or 5V universal power adaptor (included) |
| Warranty | 2 years |
| Weight | 8.0oz (250g) |
Resources & Support
User Manual
Extech WB200 User Manual
Certification
Extech WB200 Declaration of Conformity
Datasheet
Extech WB200 Datasheet
Export Restrictions
The information contained in this page pertains to products that may be subject to the International Traffic in Arms Regulations (ITAR) (22 C.F.R. Sections 120-130) or the Export Administration Regulations (EAR) (15 C.F.R. Sections 730-774) depending upon specifications for the final product; jurisdiction and classification will be provided upon request.
